Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

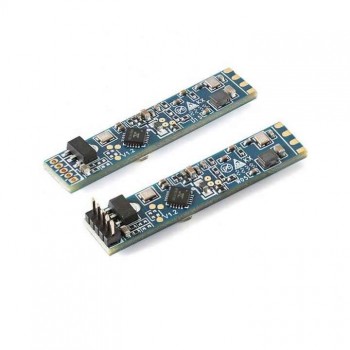

LD2410B-P Human presence radar module sensor Heartbeat detection sensor with Bluetooth LD2410B
Manufacturer
Manufacturer Product Number
LD2410B
Description
LD2410B-P Human presence radar module sensor Heartbeat detection sensor with Bluetooth LD2410B
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Description The LD2410B is a highly sensitive 24GHz human presence sensor module. It utilizes FMCW frequency-modulated continuous wave (FMCW) technology to detect human targets within a specified space. Combined with radar signal processing and precise human presence sensing algorithms, it achieves highly sensitive human presence sensing, capable of identifying both moving and stationary individuals and calculating auxiliary information such as target distance. This module is primarily designed for indoor use, detecting movement or slight human activity within an area and providing real-time output. It offers a maximum sensing range of 6 meters with a resolution of 0.75 meters. A configuration tool is provided for configuring the sensing range, sensitivity in different ranges, and the absence delay time. Supporting GPIO and UART output, it offers plug-and-play functionality, enabling flexible application in various smart scenarios and end products. |
| Product Features -Frequency: 24GHz-24.25GHz -Modulation: FMCW -Detection Distance: Adjustable from 0.75m to 6m -Detection Angle: ±60° -Power Supply: 5V -Current: ~79mA -Serial Output Voltage: 3.3V -Sweep Bandwidth: 250MHz (CE/FCC Compliant) -Ambient Temperature: -40°C to +85°C -Data Format: Serial ASCII Output / High and Low Levels: 3.3V & 0V -Package: Default with connectors, customizable with connectors or without connectors |
Product Photos
Company Information
.jpg)
.jpg)
.jpg)
.jpg)
