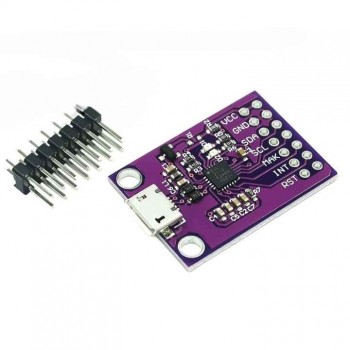

TPYC-C MICRO-USB interface debugging board USB to I2C communication module CP2112
Manufacturer
Manufacturer Product Number
CP2112
Description
TPYC-C MICRO-USB interface debugging board USB to I2C communication module CP2112
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Features: The CP2112 is a highly integrated USB-to-SMBus bridge controller that integrates a USB 2.0 full-speed function controller, a USB transceiver oscillator, and eight GP10 pins. All customization and configuration options can be selected through a simple GUI-based configurator. Standard HID class devices eliminate the need for complex firmware and driver development, enabling fast USB connectivity with minimal development effort. |
| Product Parameters: 1. USB bus-powered 4.0 5.25V 2. Self-powered 3.0 to 3.6V, I/O voltage 1.8V to VDD 3. Operating temperature: -40°C to 85°C 4. On-chip reset circuit, on-chip voltage regulator: 3.45V output 5. Compliant with USB Specification 2.0; full speed (12Mbps) 6. Supports USB suspend mode via SUSPEND pin 7. Integrated 194-byte one-time programmable ROM for customizable storage |
| Product Information 8. 512-byte SMBus data buffer with configurable clock speed. The 7-bit device address represents the CP2112's slave address. 9. Windows, Mac, and Linux HID-to-SMBus library API for rapid application development, open access to the interface specification. 10. 8 GPIOs configurable as input/output and open-drain/push-pull, for external devices. Configurable clock output from 48MHz to 94kHz for reading/writing SMBus devices and switching LEDs. 11. Applications: Portable controllers, USB dongles, data logging |
| Product Features 1. Durable, high-quality materials and an integrated 194-byte one-time programmable ROM for storing customizable product information. 2. The CP2112 highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, a USB transceiver oscillator, and eight GP10 pins. 3. Compact, 32mm x 21mm, for easy portability. 4. All customization and configuration options can be selected through a simple GUI-based configurator, eliminating the need for complex firmware and driver development for standard HID class devices. 5. The CP2112 device enables fast USB connectivity with minimal development effort for a wide range of applications. |
Product Photos
Company Information
.jpg)
.jpg)
.jpg)
.jpg)
