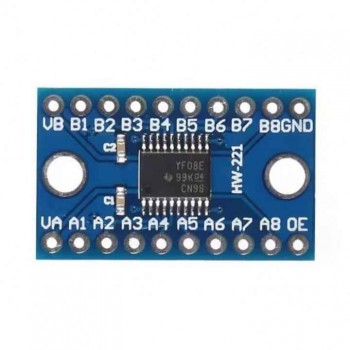

TXS0108E High speed full duplex 8-channel level converter module 8-bit bidirectional voltage converter
Manufacturer
Manufacturer Product Number
TXS0108E
Description
TXS0108E High speed full duplex 8-channel level converter module 8-bit bidirectional voltage converter
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Size: 16*26mm Module chip: TXS0108E High-speed, full-duplex, 8-channel level shifter module Provides bidirectional communication capabilities VCCA pin supports voltages from 1.2V to 3.6V VCCB pin supports voltages from 1.65V to 5.5V Provides common level shifting capabilities, such as 3.3V to 5V and 1.8V to 3.3V. Main applications: 5V MCUs and 3.3V modules, 3.3V MCUs and 5V modules, and other communication compatibility support. Level shifting for communication between MCUs and SD cards Level shifting for MCUs and IIC and SPI serial devices OE enable pin 10 is active high; it is recommended to connect the low-voltage pin 10 to the low-voltage pin 10. |
| Product Features The TXS0108E high-speed, full-duplex, 8-channel level shifter module is an 8-bit bidirectional voltage converter. This module uses the TXS0108E chip, a high-speed, full-duplex, 8-channel level shifter that provides bidirectional communication capabilities. This module is limited to communication level shifting. |
| The VCCA pin supports voltages from 1.2V to 3.6V, while the VCCB pin supports voltages from 1.65V to 5.5V. It also provides common voltage conversion capabilities, such as 3.3V to 5V and 1.8V to 3.3V. |
| User Manual 5V MCU and 3.3V Module 3.3V MCU and 5V Module Communication Compatibility Supports Level Conversion for MCU and SD Card Communication Level Conversion for MCU and IIC and SPI Serial Devices OE Enable I0 is active high; it is recommended to connect the low voltage terminal to 100 |
