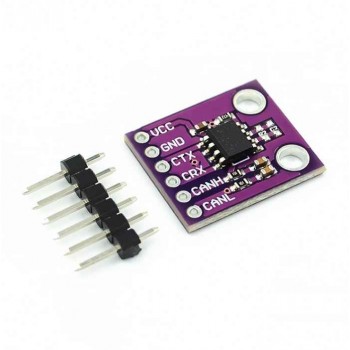

MCP2551 High speed CAN communication protocol controller bus interface module
Manufacturer
Manufacturer Product Number
MCP2551
Description
MCP2551 High speed CAN communication protocol controller bus interface module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Overview The MCP2551 is a fault-tolerant, high-speed CAN device that serves as both a CAN protocol controller and a physical bus interface. The MCP2551 provides differential transmit and receive capabilities for the CAN protocol controller and complies with the ISO-11898 standard, including 24V operation. Typically, each node in a CAN system must have a device that converts the digital signals generated by the CAN controller into signals suitable for bus transmission. It also provides a buffer between the CAN controller and high-voltage spikes on the CAN bus, which may be generated by external devices. |
| Product Features Supports 1MB/s operating rate. Meets ISO-11898 standard physical layer requirements. Suitable for 12V and 24V systems. External slope control reduces RFI. Automatically detects ground faults on the TXD input. Power-on reset and voltage event undervoltage protection. Unpowered nodes or undervoltage conditions will not affect the CAN bus. Low-current standby operation. Connectable to up to 112 nodes. |
| Pin Description VCC: Connect to the positive power supply GND: Connect to the negative power supply CTX: CAN controller transmit data input CRX: CAN bus receive data output CANH: CAN bus high (high-level CAN voltage input/output) CANL: CAN bus low (low-level CAN voltage input/output) |
Product Photos
