Professional supply Original Integrated circuit IC 2MBI75N-060 IGBT MODULE
Manufacturer
Manufacturer Product Number
2MBI75N-060
Description
2MBI75N-060 Transistor, 75A I(C), 600V V(BR)CES, N-Channel, MODULE-7
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
• Square RBSOA
• Low Saturation Voltage
• Less Total Power Dissipation
• Improved FWD Characteristic
• Minimized Internal Stray Inductance
• Overcurrent Limiting Function (~3 Times Rated Current)
Applications
• High Power Switching
• A.C. Motor Controls
• D.C. Motor Controls
• Uninterruptible Power Supply
Product Description
| Type# | Description |
| Part# | 2MBI75N-060 |
| Part Status | Active |
| Manufacturer | Original |
| Part Package | MODULE |
| Package Description | MODULE-7 |
| Pin Count | 7 |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 75 A |
| Collector-Emitter Voltage-Max | 600 V |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE AND CUR LIMITING CIRCUIT |
| Fall Time-Max (tf) | 350 ns |
| JESD-30 Code | R-XUFM-X7 |
| Number of Elements | 2 |
| Number of Terminals | 7 |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation Ambient-Max | 650 W |
| Power Dissipation-Max (Abs) | 325 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 600 ns |
| Turn-on Time-Nom (ton) | 600 ns |
| VCEsat-Max | 2.8 V |

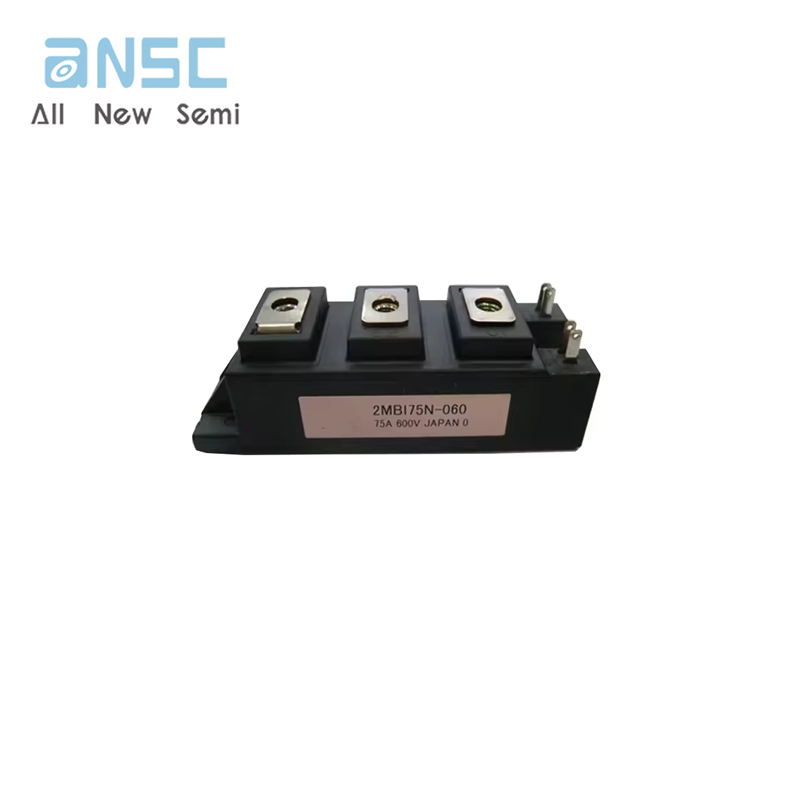

Actual image of the product
Other Products In The same category:
2MBI75N-060 Transistor, 75A I(C), 600V V(BR)CES, N-Channel, MODULE-7
1000In stock:
Can ship immediately
