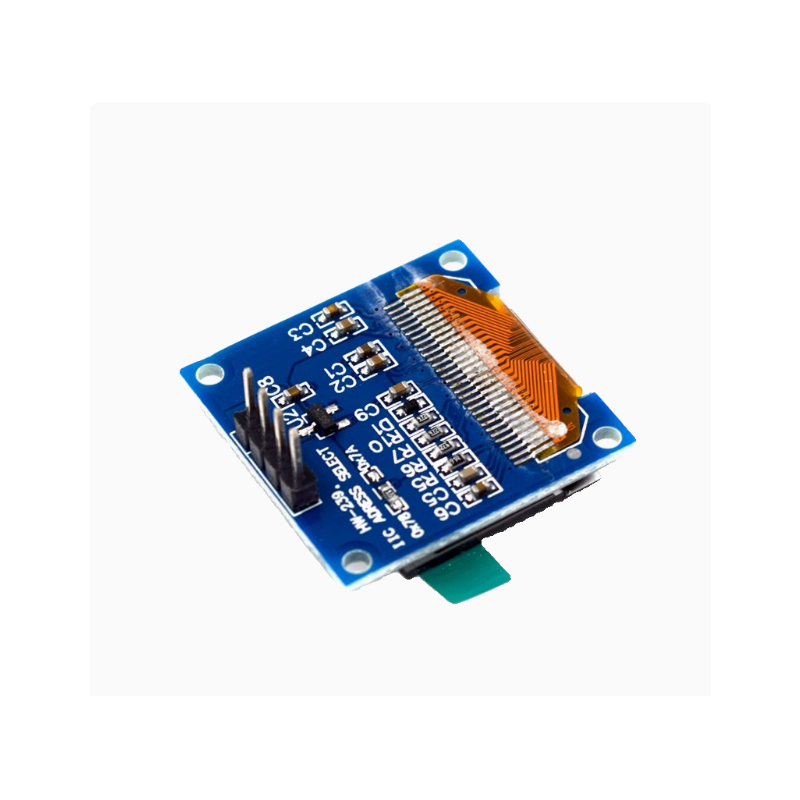

Hot selling 0.96-inch yellow blue dual color IIC communication 128 * 64 OLED LCD screen module
Manufacturer
Manufacturer Product Number
M281
Description
0.96-inch yellow blue dual color IIC communication 128 * 64 OLED LCD screen module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameter
Size 0.96 (INCH)
Type OLED
OLED driver chip SSD1306
Resolution 128 * 64 (PIXEL)

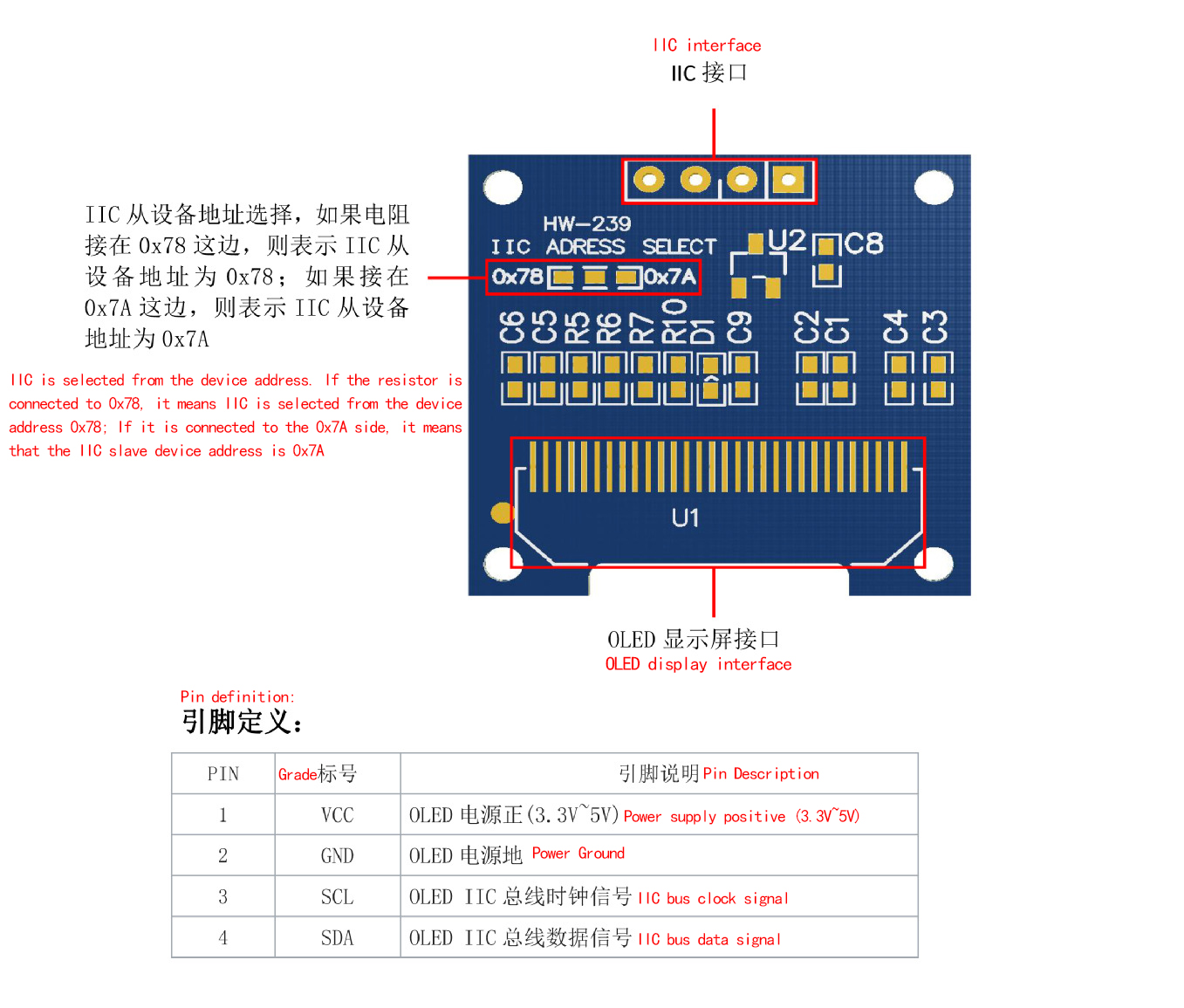

Module interface VCC-GND-SCL-SDA
Effective display area 21.744X10.864 (MM)
Module size 27.3X27.8 (MM)
Perspective>160 °
Working temperature -20 ° C~70 ° C Storage temperature -30 ° C~80 ° C
The working voltage is 3.3V/5V, and the power consumption is about 25MA when fully on and about 1.5MA when fully off.
Product Descriptions
This product is an OLED screen display controlled by I2C bus, with a screen size of 0.91 inches, high resolution, low power consumption, and a working voltage supply of 3V-5V. It is compatible with 3.3V and 5V level logic and does not require a level conversion chip. The module is available in three colors: white, blue, and yellow blue.

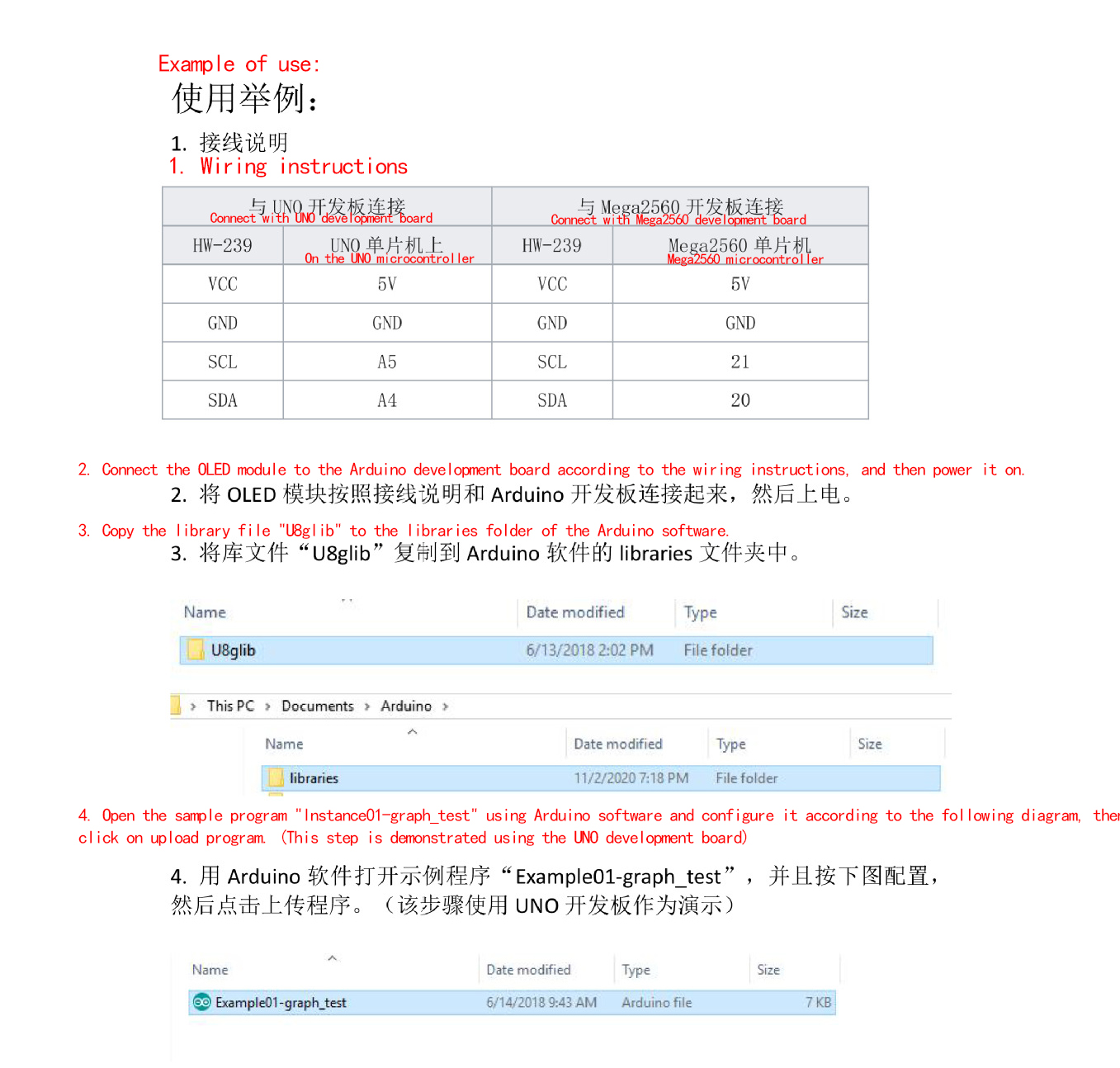

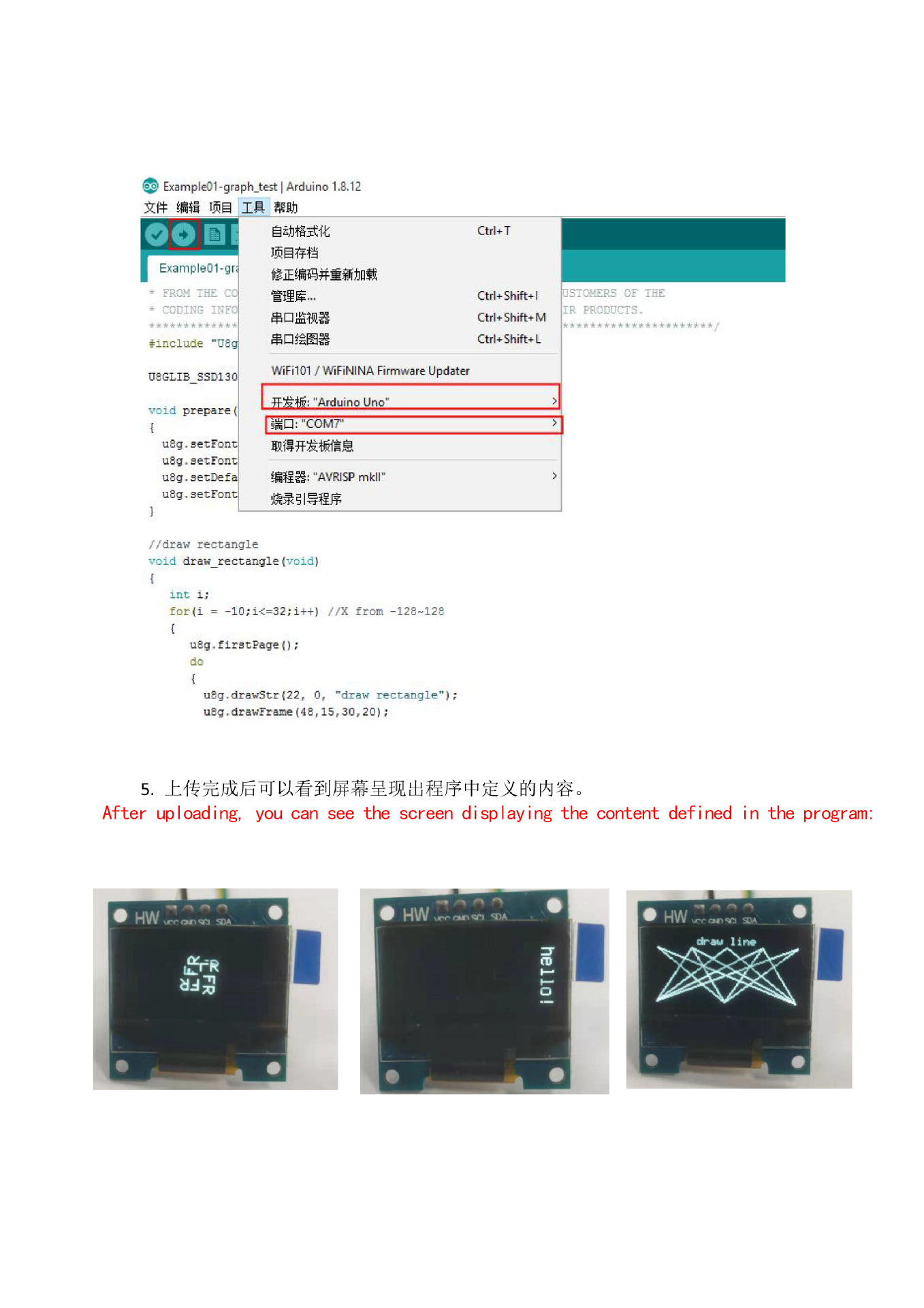

Product Instructions

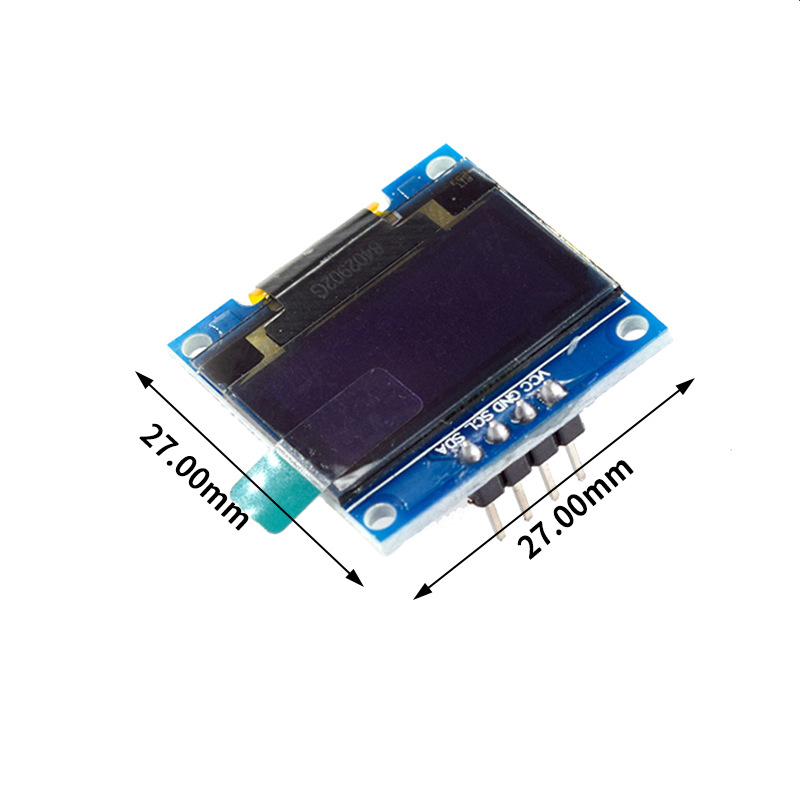

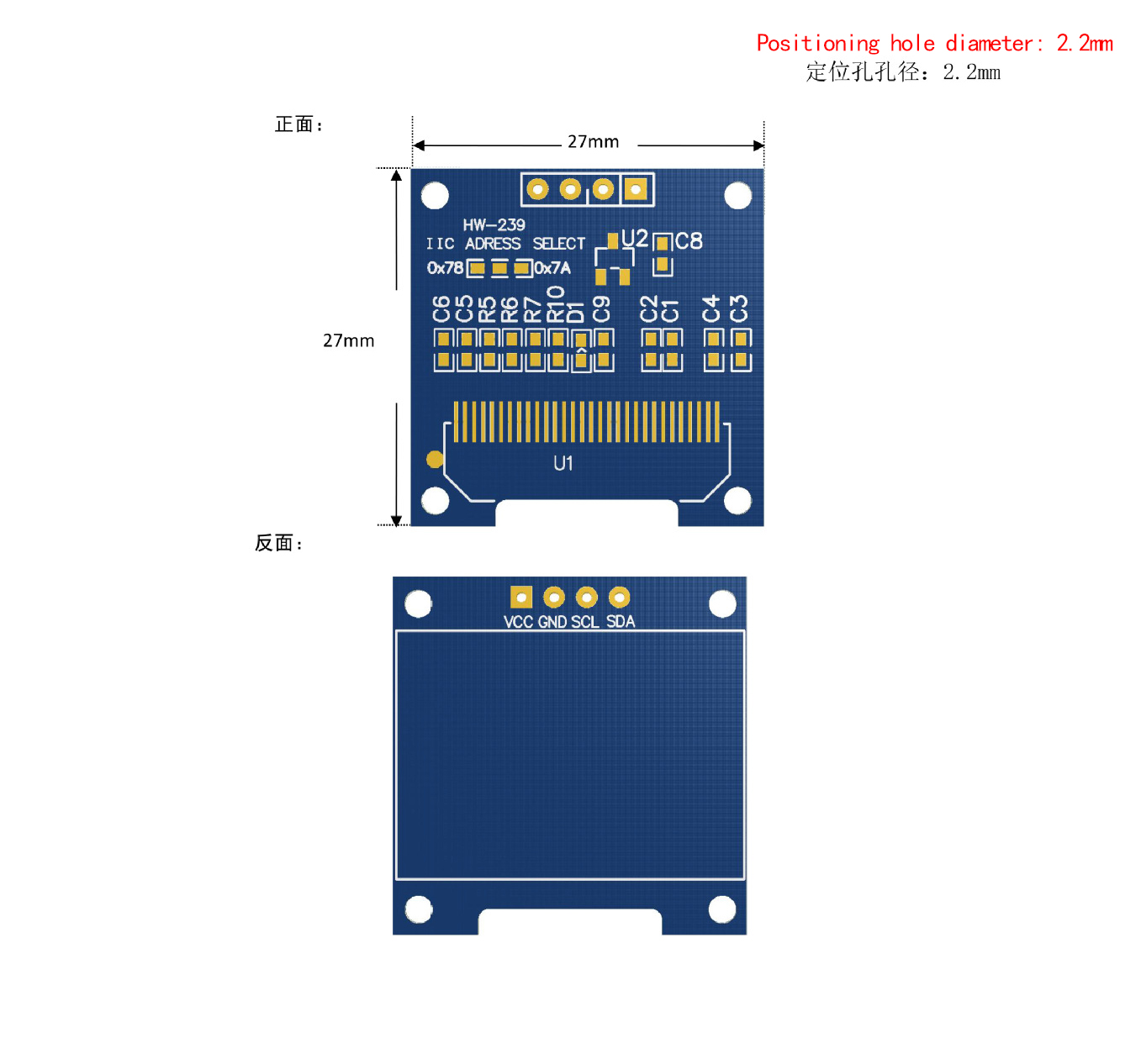

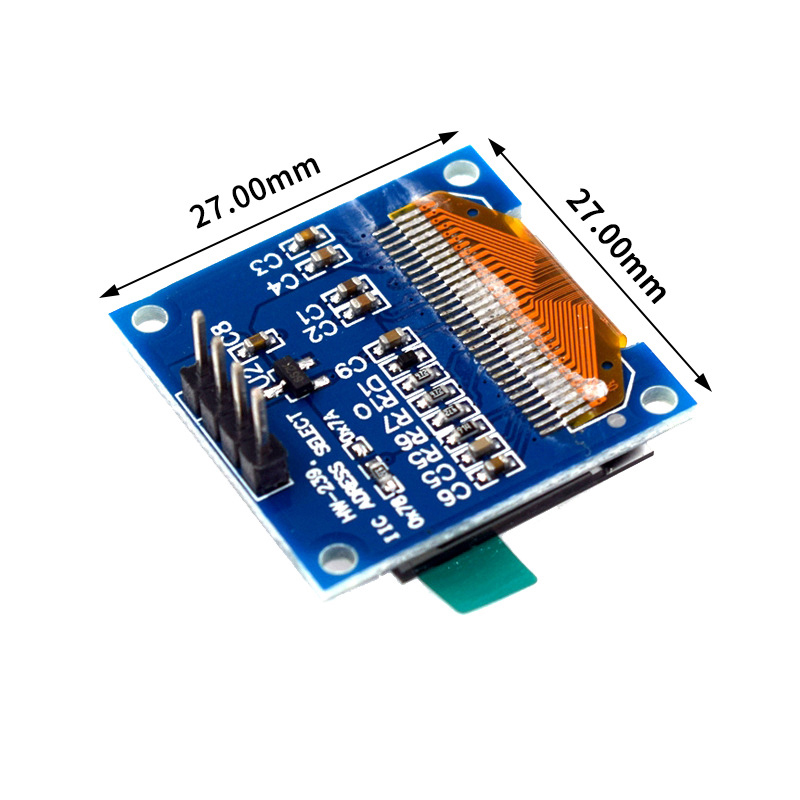

Product Size

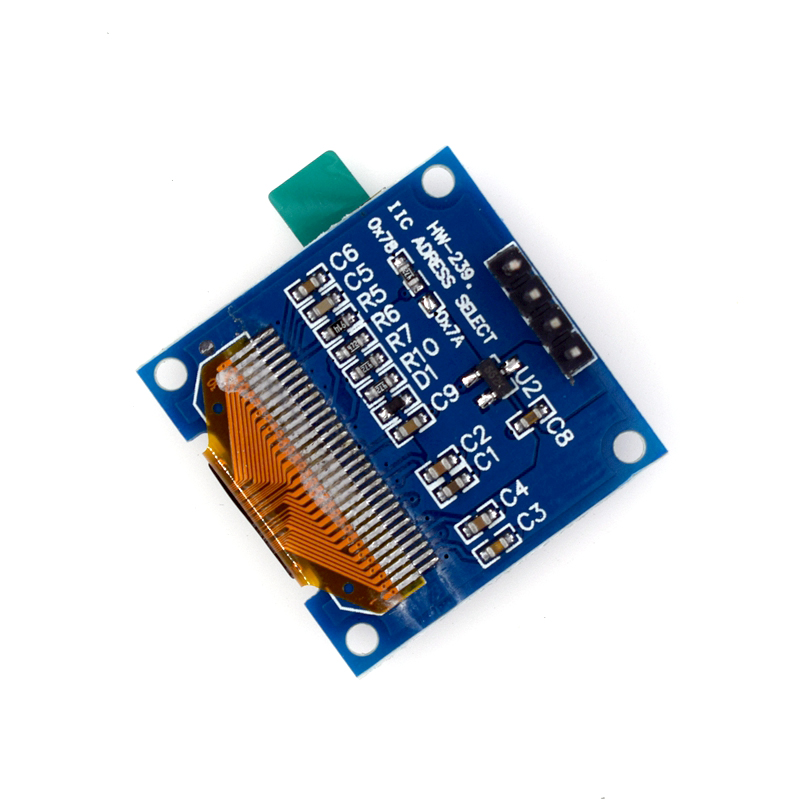

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
