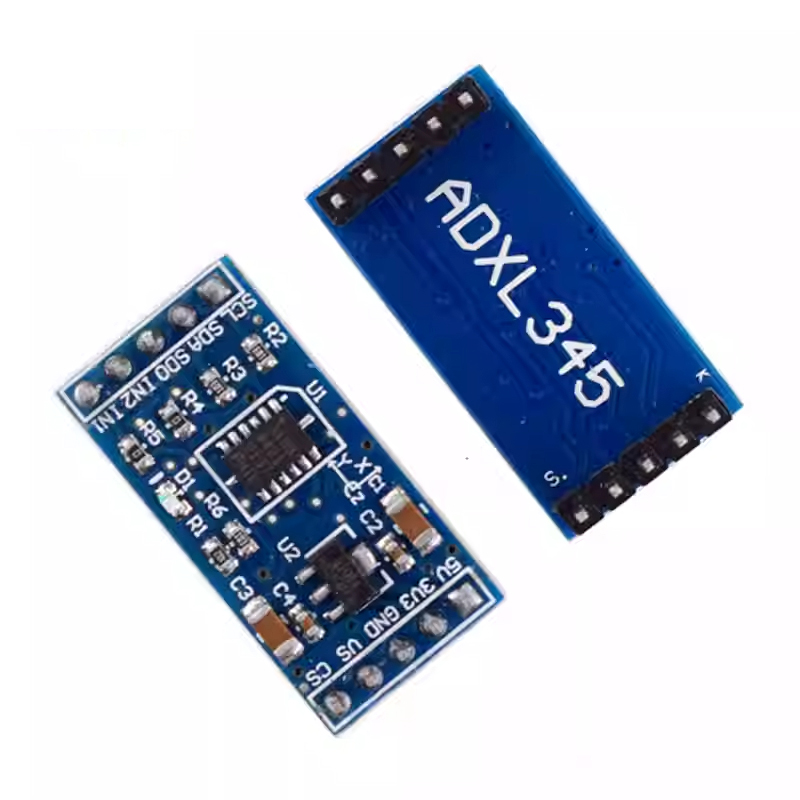

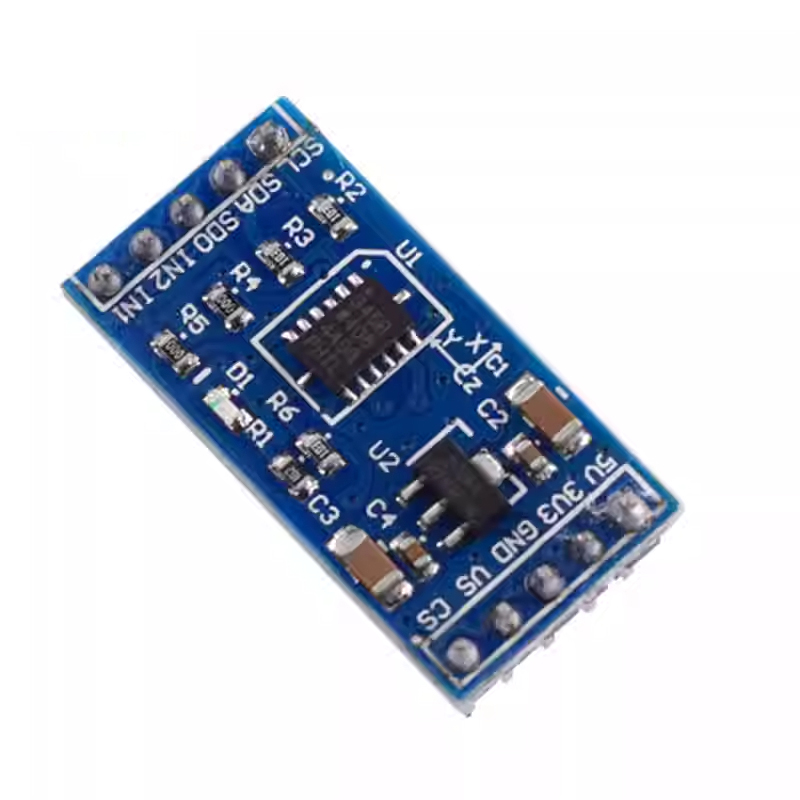

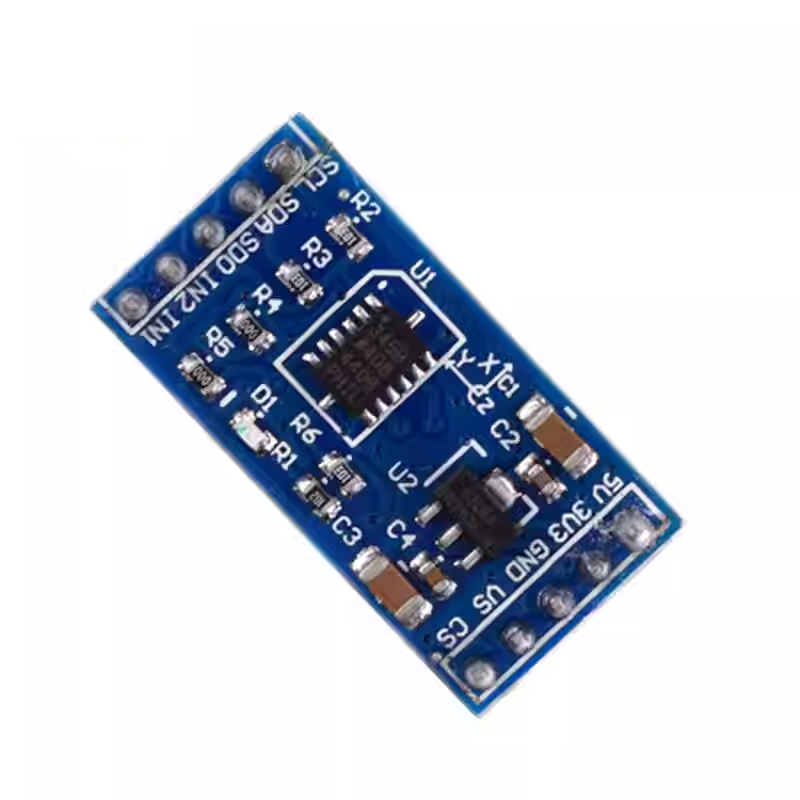

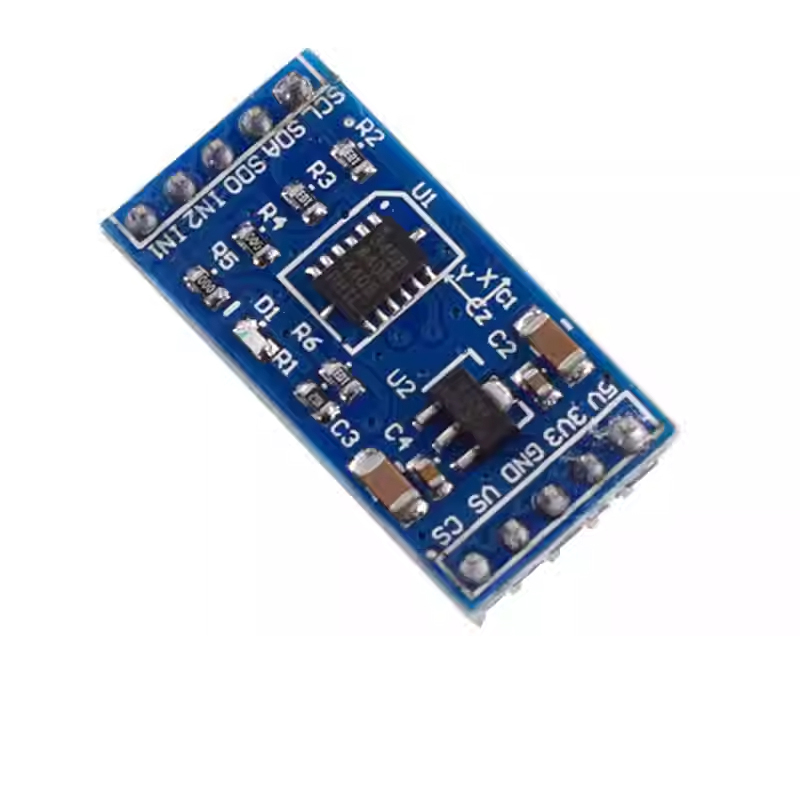

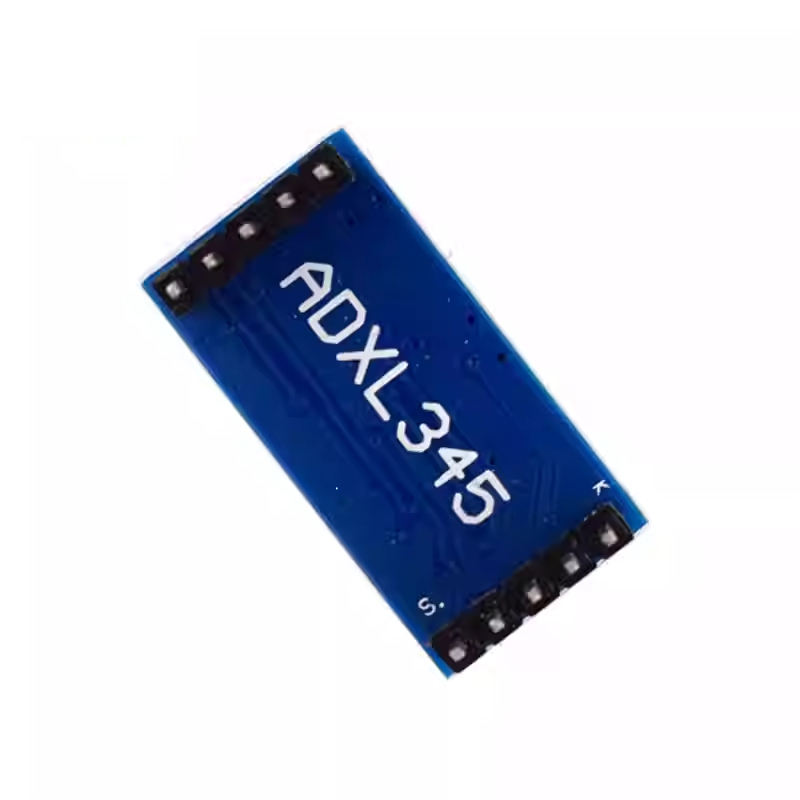

Manufacturer direct sales ADXL345 IIC/SPI digital tilt sensor acceleration module

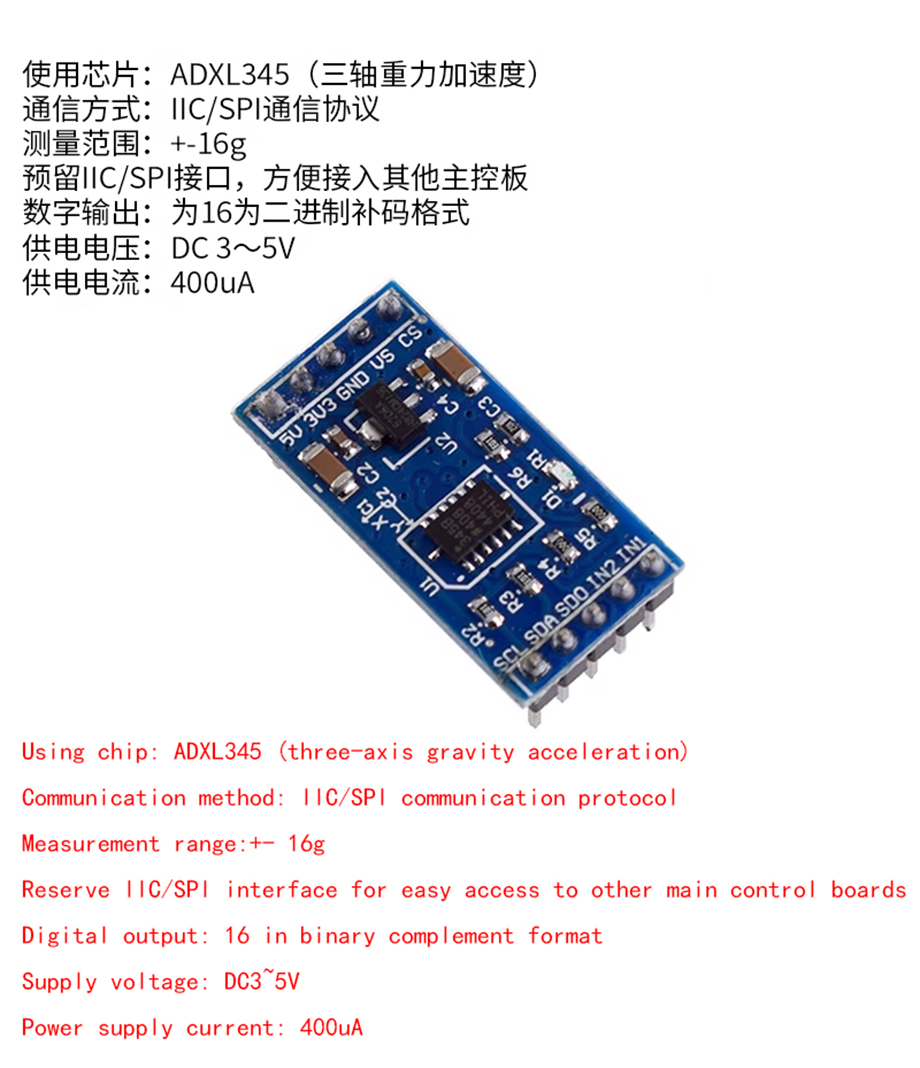

Product Parameters

Using chip: ADXL345 (three-axis gravity acceleration)

Communication method: IIC/SPI communication protocol;

Measurement range:+- 16G;

Reserve IIC/SPI interface for easy access to other main control boards;

Digital output: 16 is in binary complement format.

Supply voltage: DC3~5V

Power supply current: 400UA

Product Introduction

1 ADXL345 is a small and thin ultra-low power 3-axis accelerometer with high resolution (13 bits) and a measuring range of ± 16g? The digital output data is in 16 bit binary complement format, which can be accessed through SPI (3-wire or 4-wire) or IC digital interface;

2. ADXL345 is suitable for mobile device applications. It can measure static gravity acceleration in tilt detection applications, as well as dynamic acceleration caused by internal motion or impact. It has high resolution (4mg/LSB) and can measure tilt angle changes of 0.25 °. When using ADXL345 digital output acceleration, there is no need for digital to analog conversion, thus saving system costs and circuit board area.

Product Functions

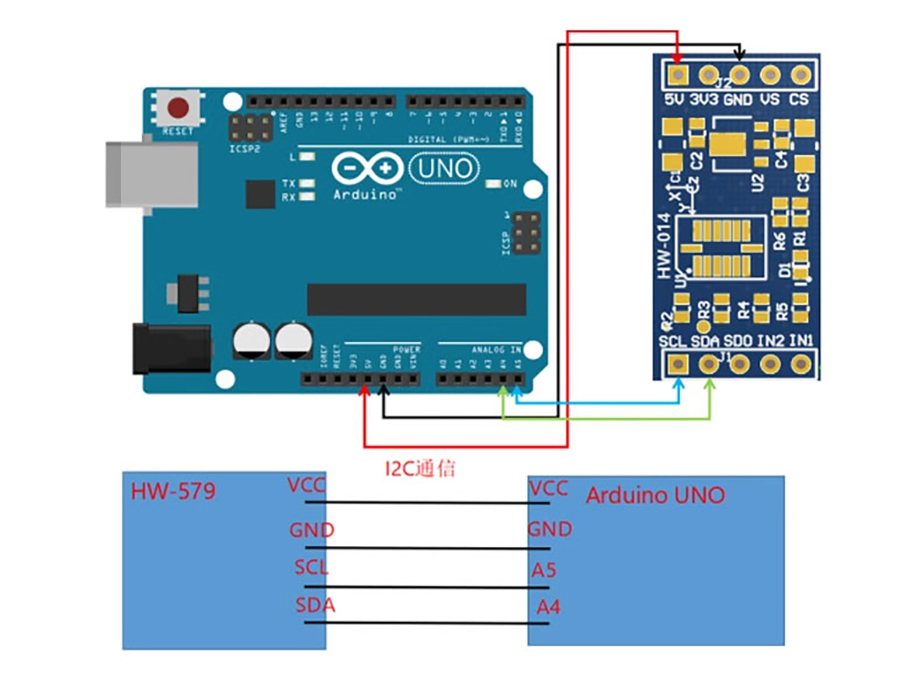

Pin Description:

5V: Power Supply 5V

3V3: Power Supply 3V

GHD: Power Ground

VS: supply voltage

CS: Film selection

SCL: SPI clock line, IIC clock line (compatible with 5V level)

SDA: SPI data I/0, IIC data line (compatible with 5V level)

SD0: SPI data output/IC address setting

INT1: Interrupt 1

IHT2: Interrupt 2

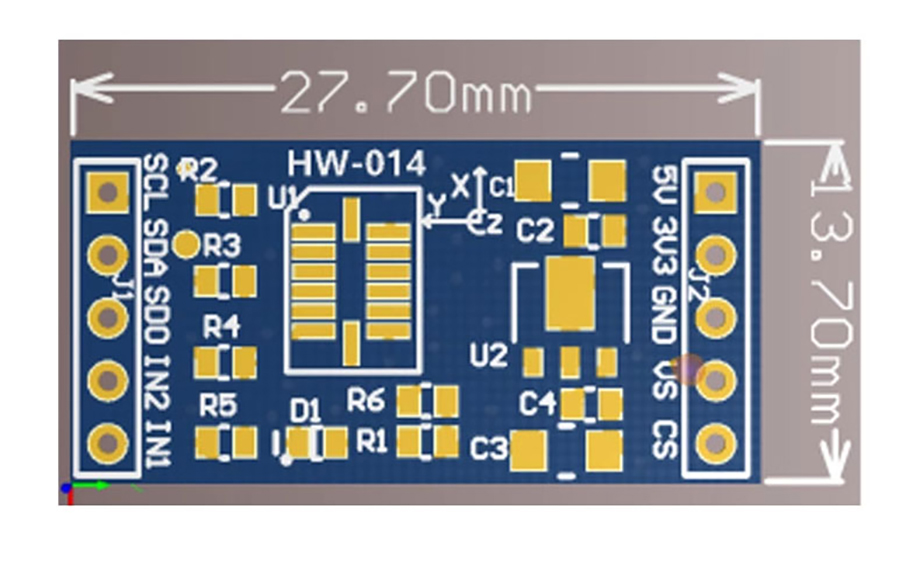

Product Size
