LCR-T4 Graphic Transistor Tester Resistance Inductance Capacitor ESR Battery Box

Product Parameters

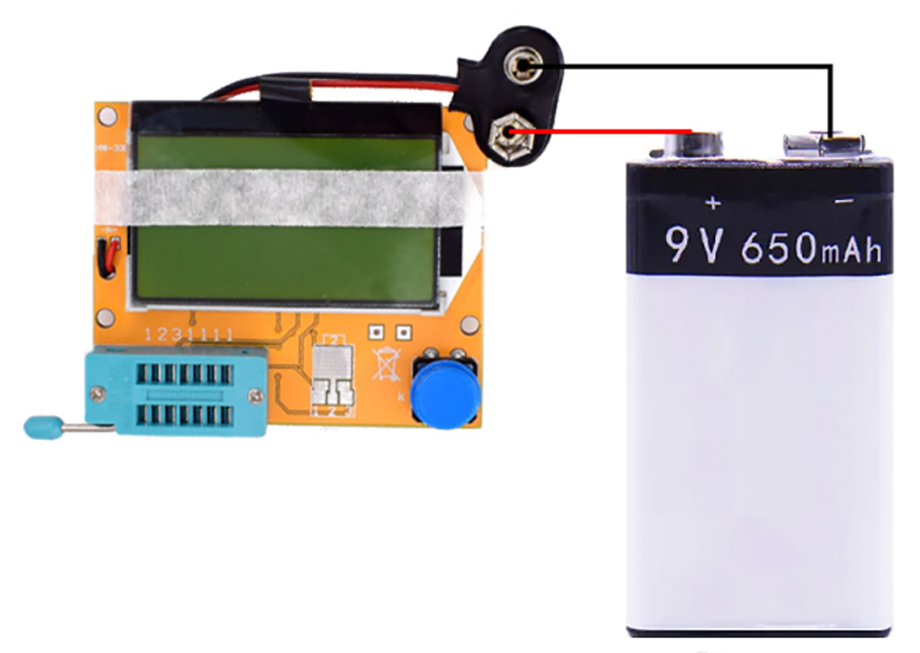

Input voltage: 9V stacked battery (if checking the power supply time, two lithium batteries can be used to form an 8.4V battery for power supply)

Display: 12864 LCD display with backlight, the backlight color is generally yellow green

Multi functional tester: resistor+capacitor+diode+thyristor+inductor+transistor+MOS transistor

Product Description

Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, transistors, resistors, capacitors, and other components. The pins of the components are automatically tested and displayed on the liquid crystal to determine the amplification factor and cardinality of the transistor, MOSFET protection diode, etc. The forward bias voltage of the emitter transistor is measured, and the gate threshold voltage and gate capacitance of the MOSFET display are measured. The 12864LCD liquid crystal (128 * 64 characters) has a high testing speed and validity period. Component testing: within 2 seconds (except for larger capacitors, which require a longer measurement time, a measurement time of 1 minute is normal), one click operation, power on test. The automatic shutdown function can avoid unnecessary waste, save battery energy, and improve battery life.

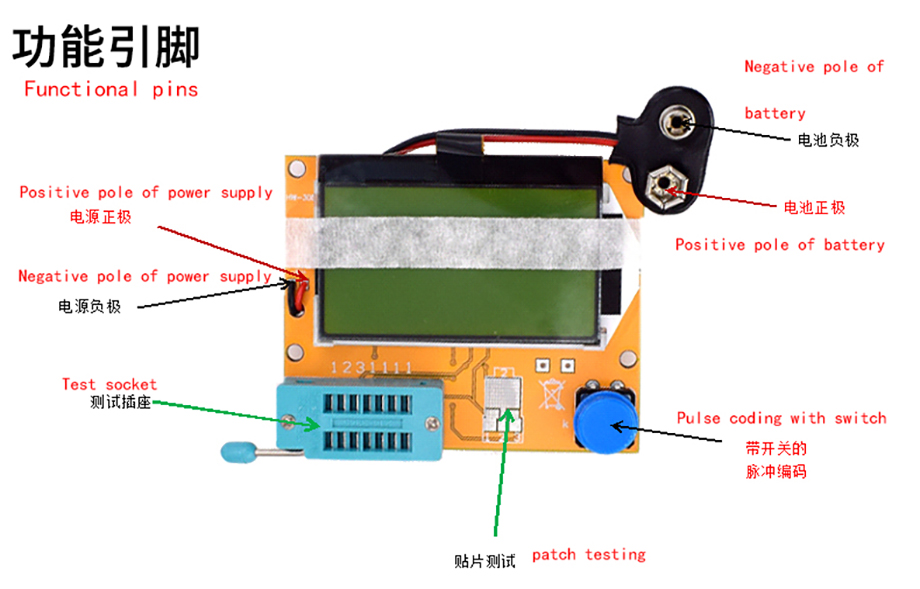

Product Functions

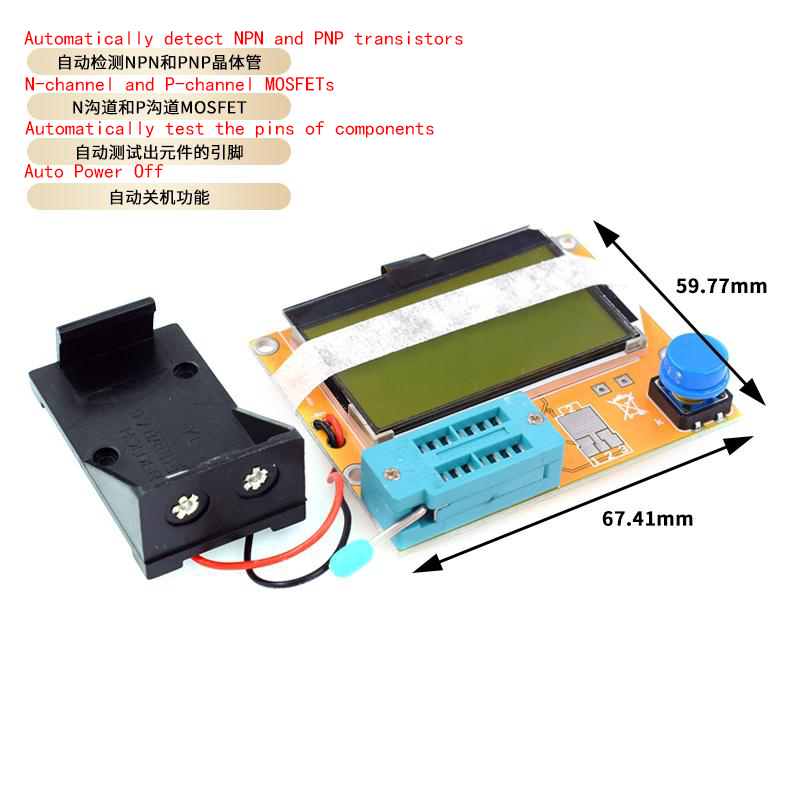

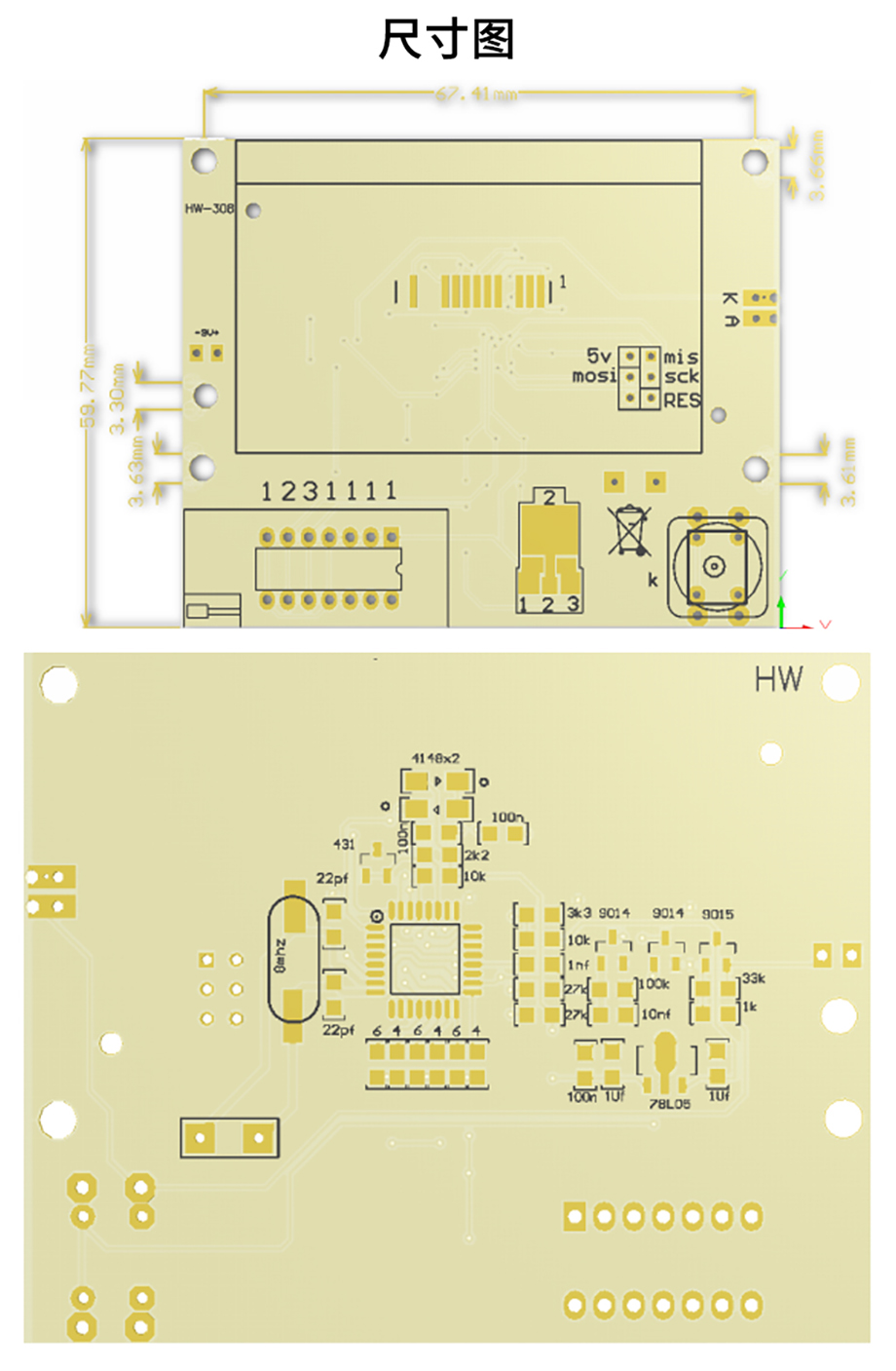

Product Size

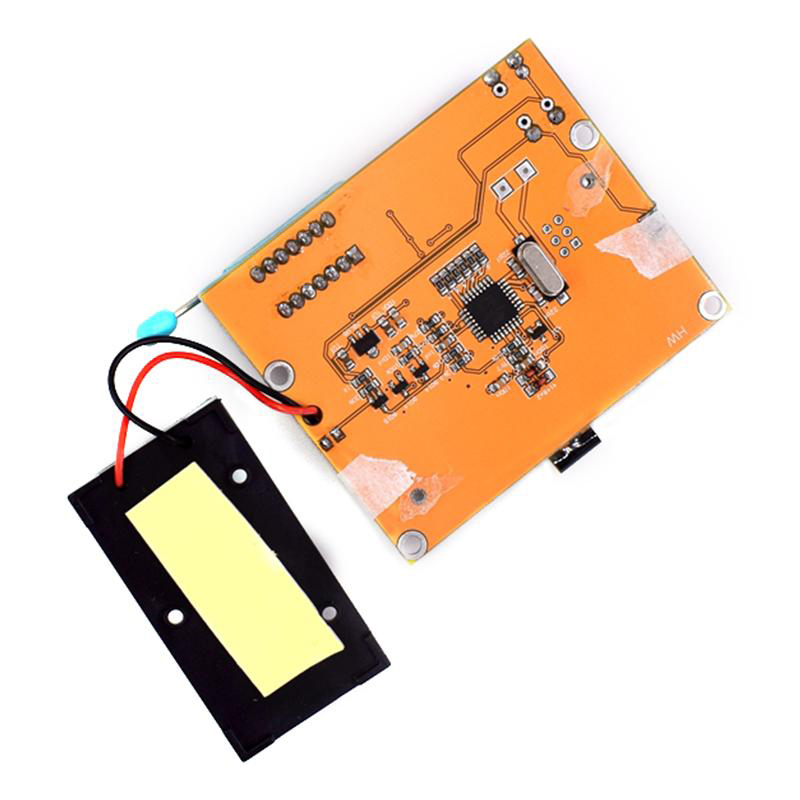

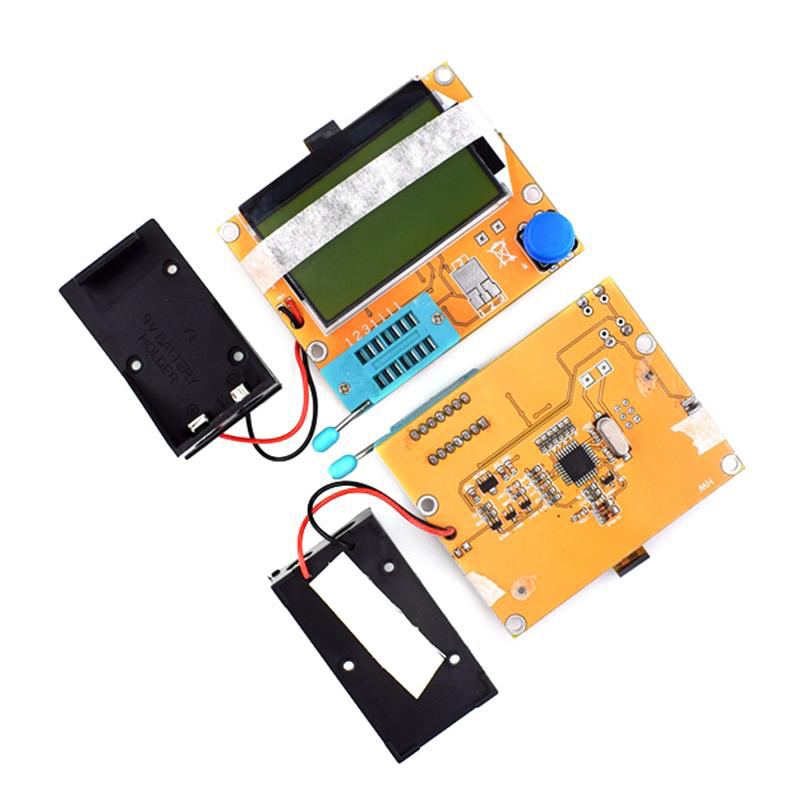

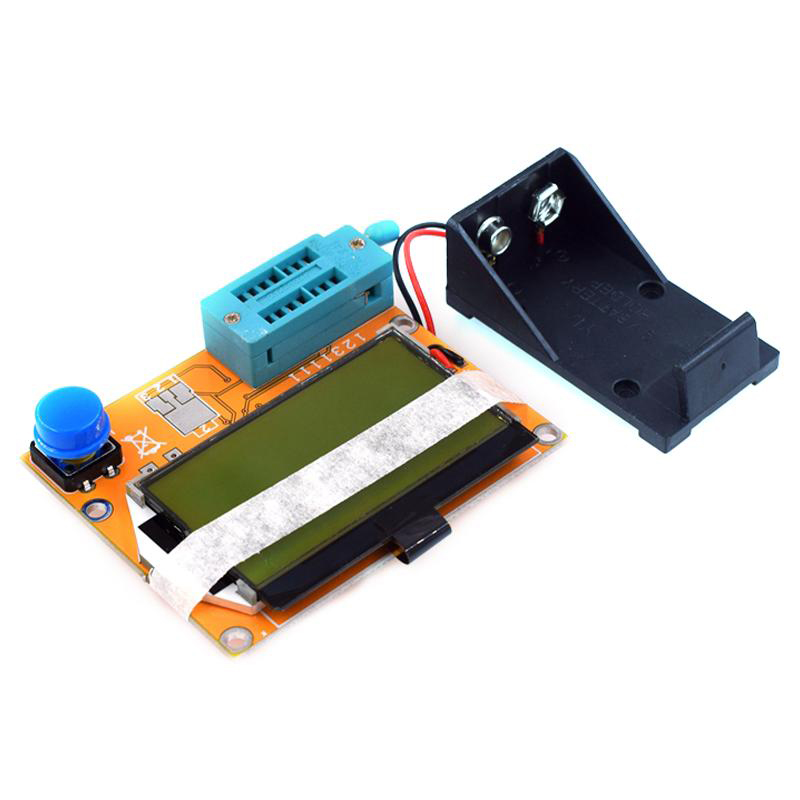

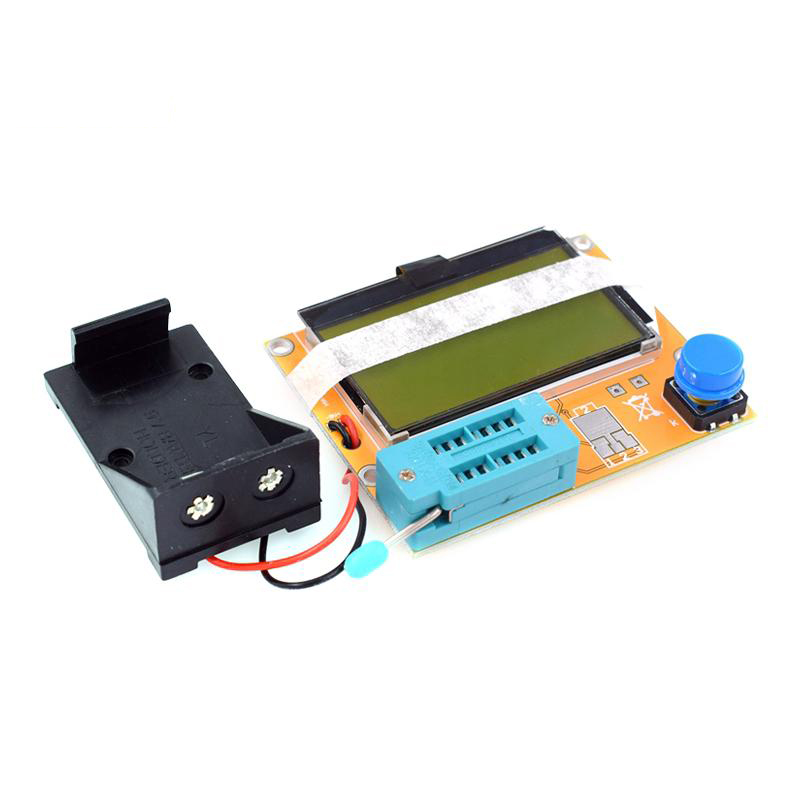

Product Show
