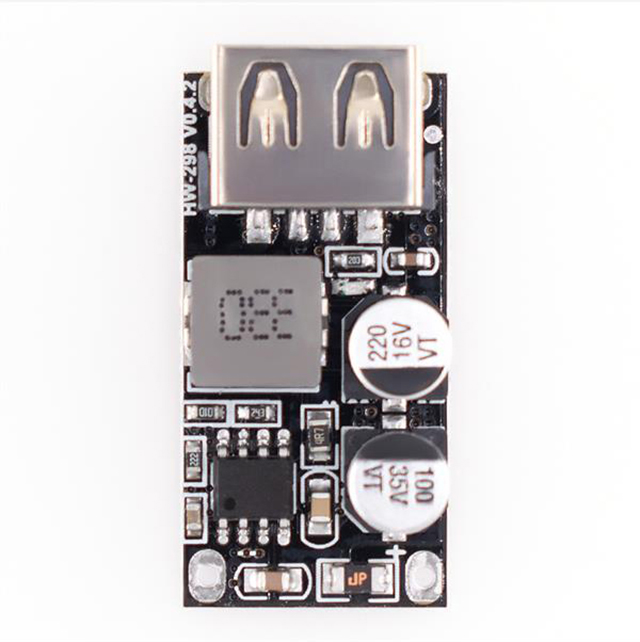

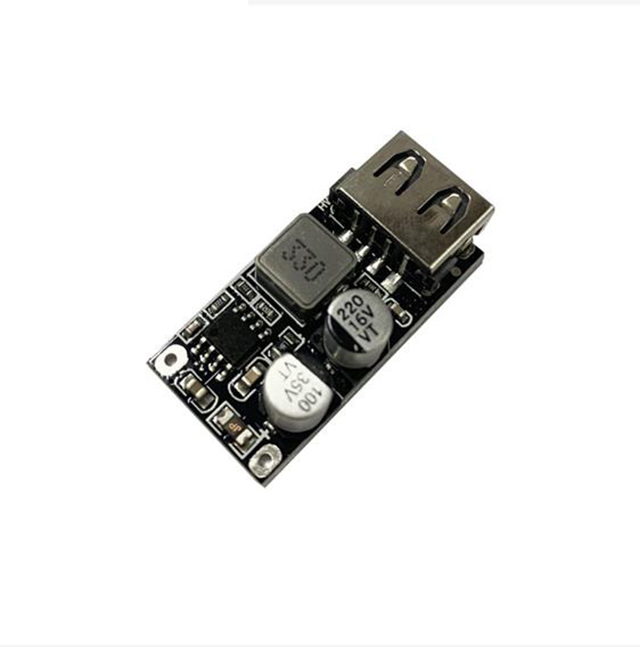

DC-DC DC buck USB charging module car USB charger 8-30V12V24V to QC3.0 fast charging
Manufacturer
Manufacturer Product Number
M332
Description
DC buck USB charging module car USB charger
Package Condition
Bulk
Product Description
Support fast charging protocol
Support DCP protocol BC1.2.Apple、 Samsung Agreement
Support Huawei fast charging protocol FCP/SCP
Support Huawei Fast Charging Protocol AFC
Support Spreadtrum Fast Charging Protocol (SFCP)
Support Qualcomm QC2.0 and 3.0
Support MTK PE1.1/PE2.0
Product Parameters

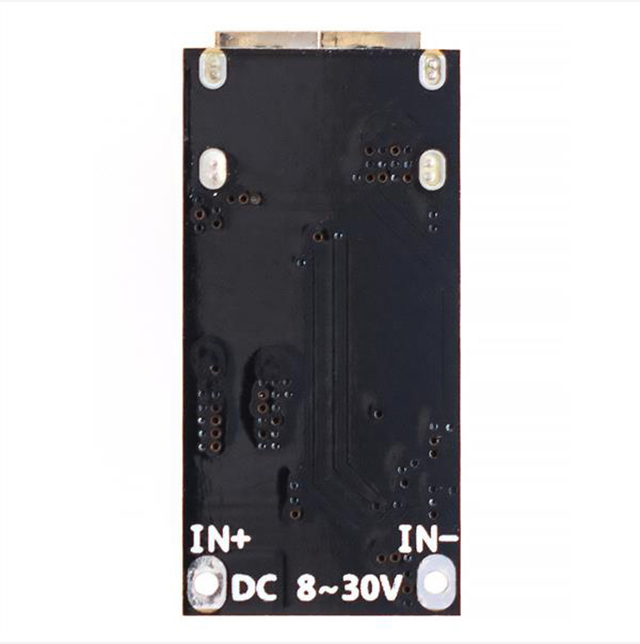

Input voltage range: 8V-30V
Output voltage: default 5V, automatically adjusted between 3-12V after triggering fast charging
Output power: Maximum 24W（ 5V@3.4A , 9V@2.5A , 12V@2A etc.
Output voltage wired compensation function
Conversion efficiency: 90-97
Support multiple fast charging protocols
Input overvoltage and undervoltage protection
Input overcurrent protection
Output overcurrent and short circuit protection
Whole machine over temperature protection

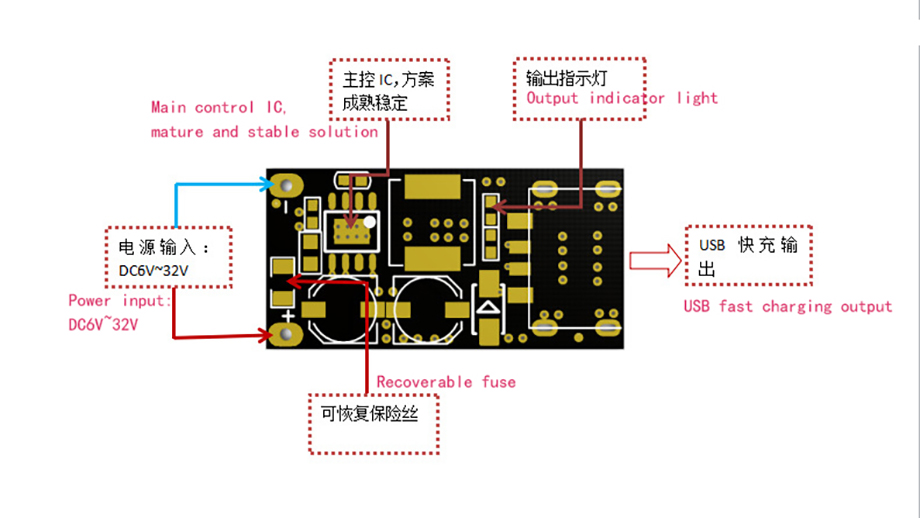

Product Functions

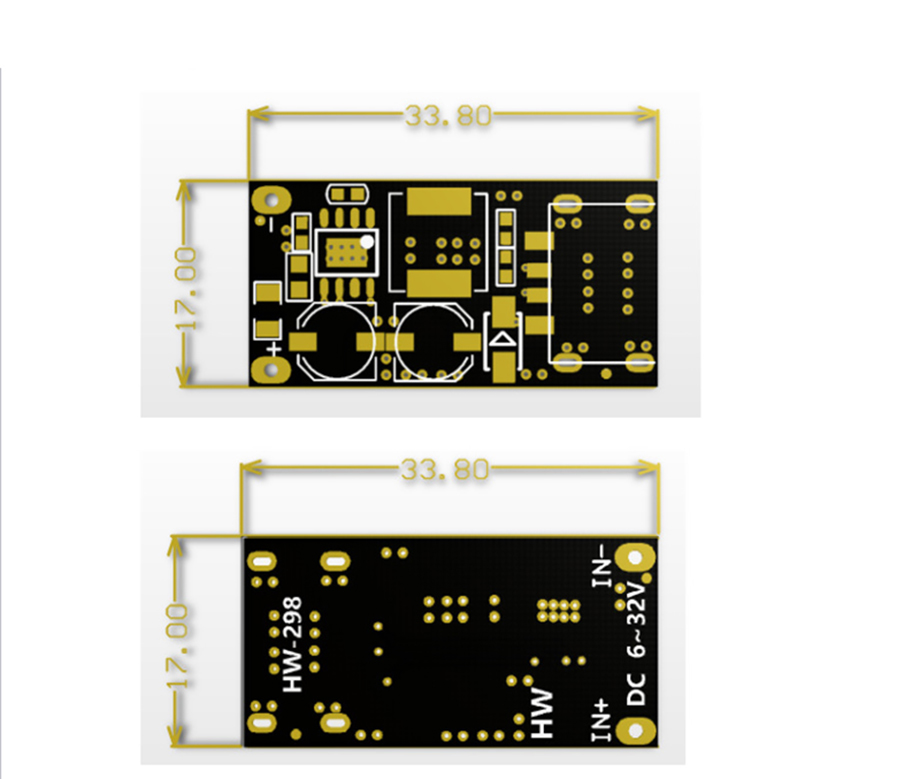

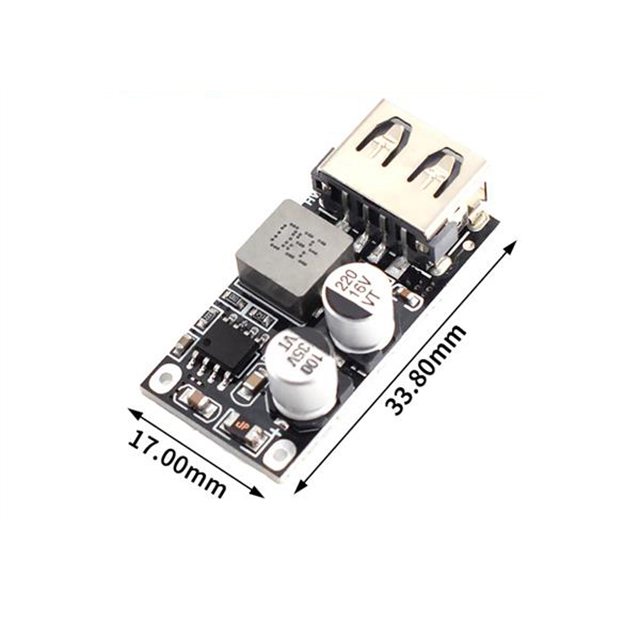

Product Size

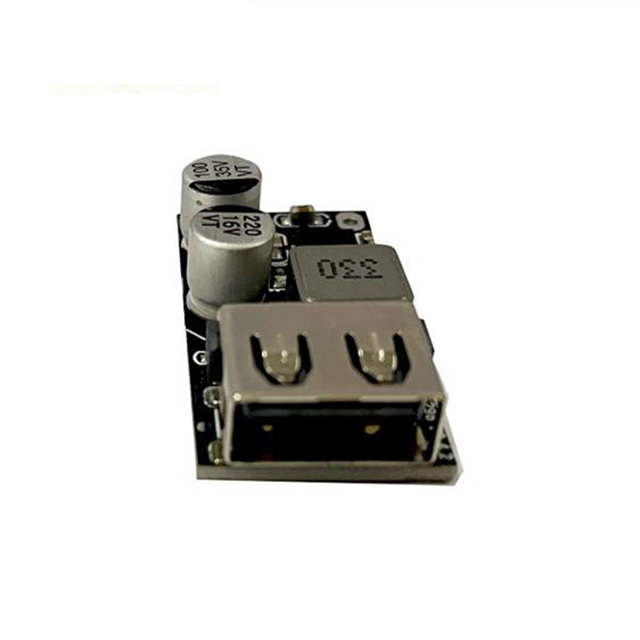

Product Show
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
