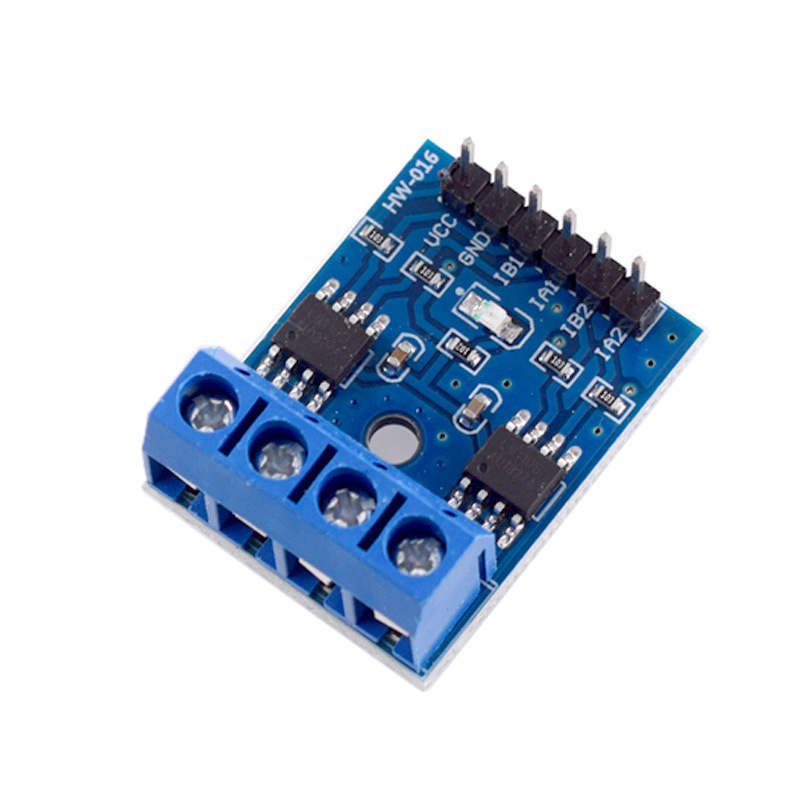

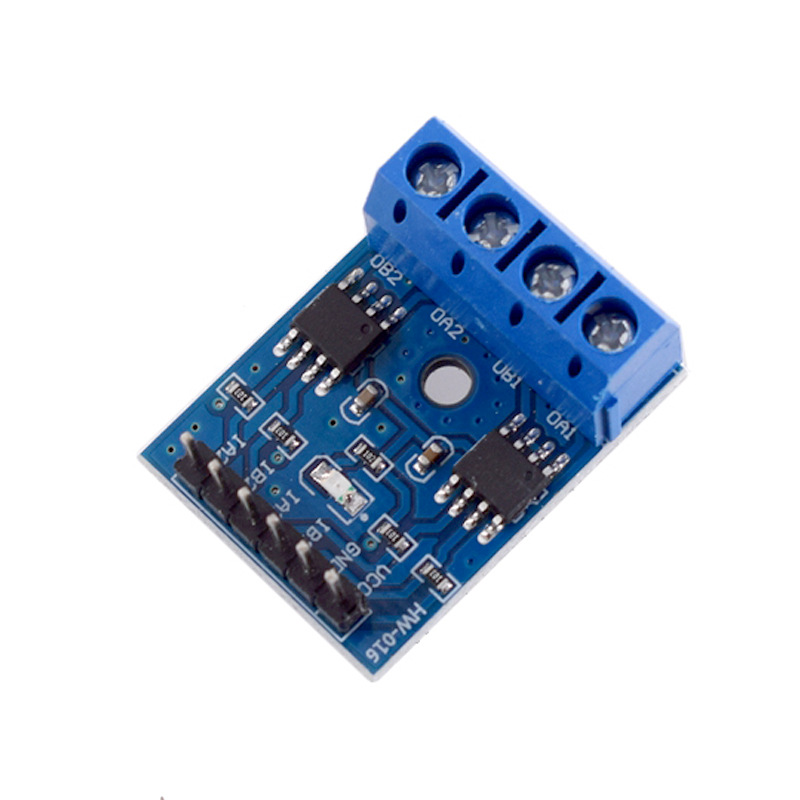

Two way motor drive H-bridge L9110S stepper motor drive module
Manufacturer
Manufacturer Product Number
L9110S
Description
Two way motor drive H-bridge L9110S stepper motor module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
-
Wide power input: 2.5V-12V
-
Each prop has a continuous current output capability of 800MA
-
Low static operating current
-
Ultra low saturation voltage drop
-
TTL/CMOS output level compatible, can be directly connected to CPU
-
Output built-in clamp diode, suitable for inductive loads
-
Accurate pulse width control and post stage drive
-
Equipped with high voltage protection function for pins
-
Working temperature:- 30°C-80°C
Product Description

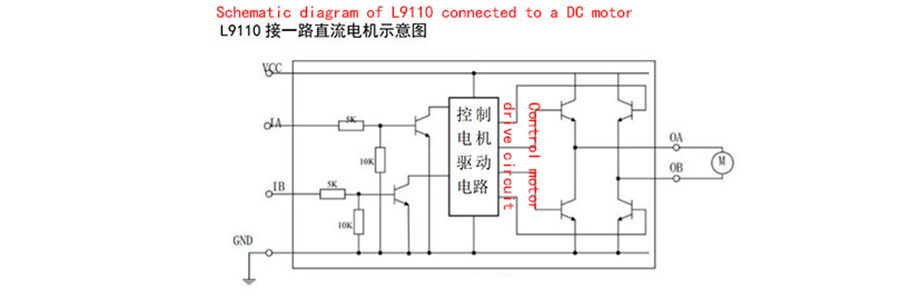

This module has two H-bridge motor driver chips L9110, which can drive two DC motors or one 2-phase 4-wire stepper motor.
Product Functions

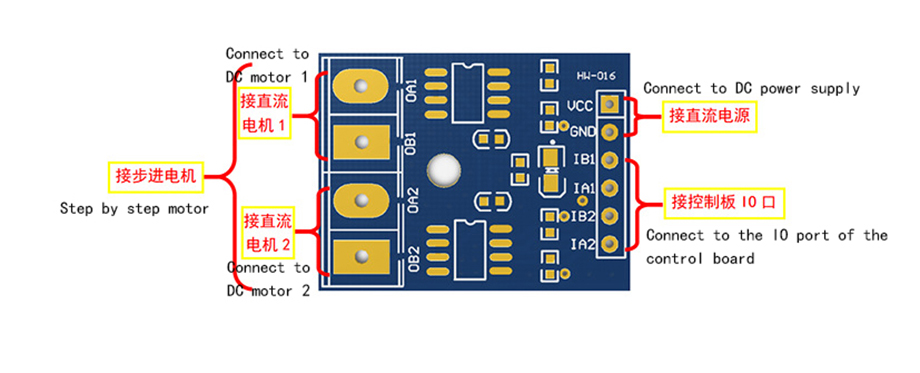

Pin Description
VCC: Connect to a DC 2.5-12V power supply (depending on the motor)
GND: Connect the negative pole of the power supply
IA1: Motor 1 control terminal, control A circuit, connected to microcontroller IO port
IB1: Motor 1 control terminal, control B circuit, connected to microcontroller IO port
IA2: Motor 2 control terminal, control A circuit, connected to microcontroller IO port
IB2: Motor 2 control terminal, control B circuit, connected to microcontroller IO port
OA1: A-way output, connected to motor 1
OB1: B output, connected to motor 1
OA2: A output, connected to motor 2
OB2: B output, connected to motor 2

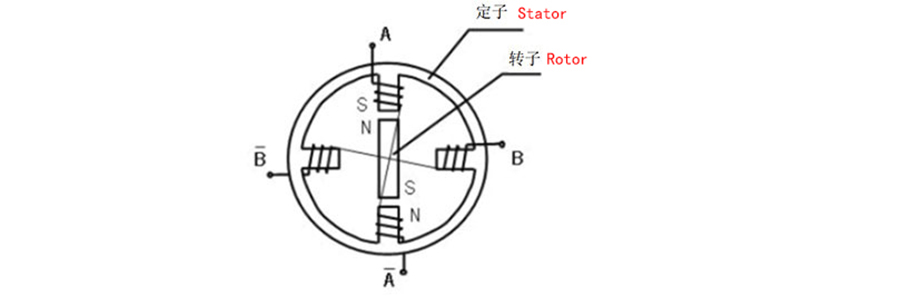

Step by step motor:
If you want to connect a 2-phase 4-wire motor, here is the "A" route The meanings of phases A and B in the "B" path and stepper motor are different. If connected to a stepper motor, (IA1.1B1) corresponds to one phase, and (IA2. IB2) corresponds to the other phase.
Control development board
You can choose an Arduino development board, which is relatively easy to develop and provides libraries and sample programs for driving L9110. If you don't know how to use Arduino, you can purchase our Arduino development board, which provides detailed instructions for use.

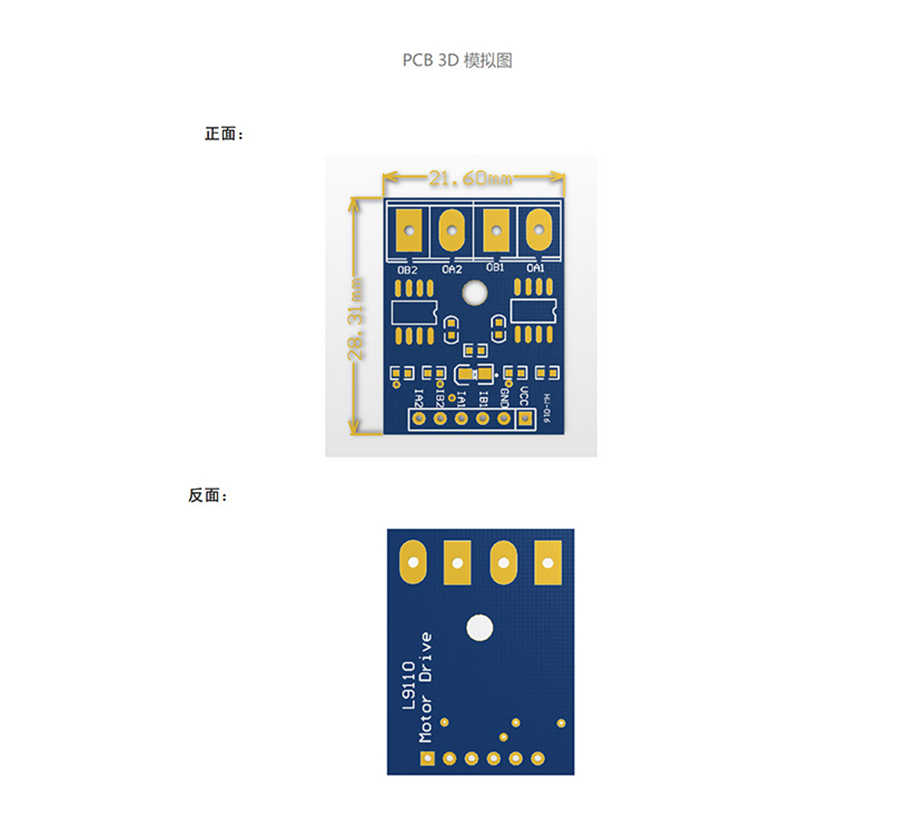

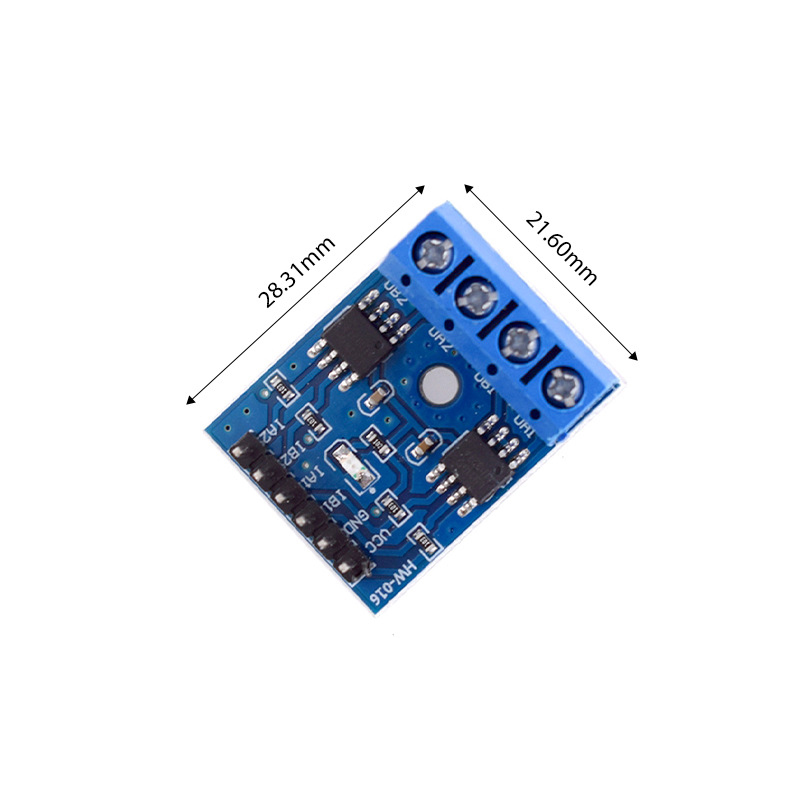

Product Size

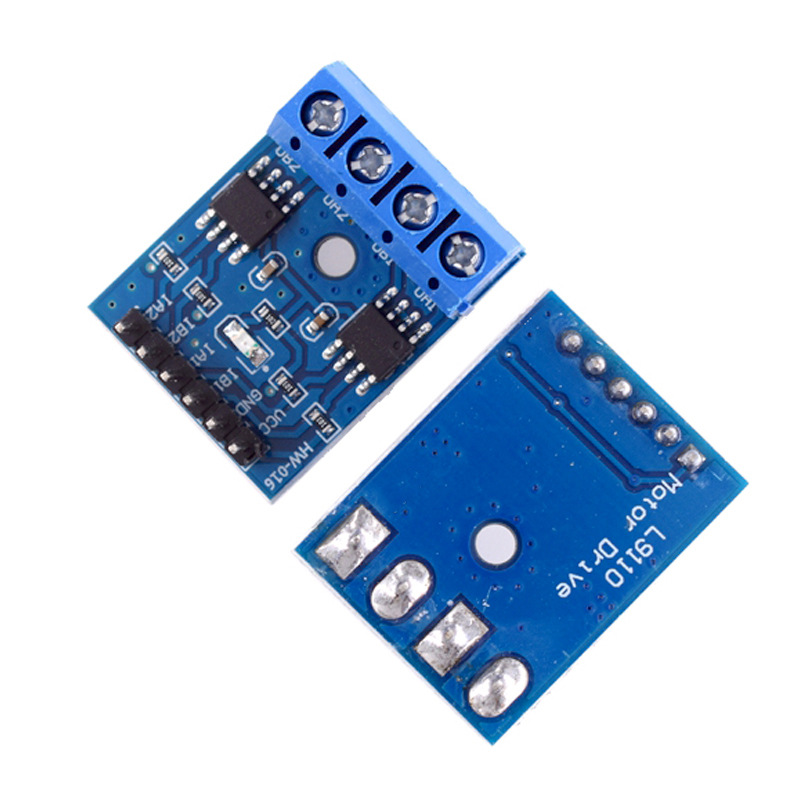

Product Show
