Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

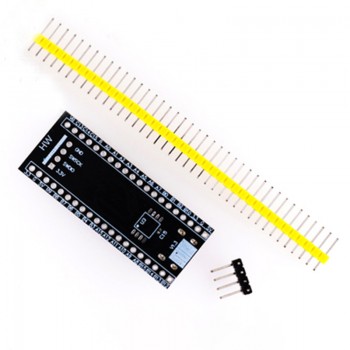

STM32F401 411 development board STM32F411CCU6 32F4 core small system board learning board
Manufacturer
Manufacturer Product Number
STM32F411CEU6
Description
411 development board 32F4 core small system board learning board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameters
IC model: STM32F411CEU6
IC storage: 512KBYTES FLASH, 128KBYTES SRAM
External crystal oscillator: 25MHz high-speed crystal oscillator+32.768KHZ low-speed crystal oscillator
Back FLASH pad: Users can solder and install FLASH themselves as needed (recommended W25032JVSSIQ)
Ready made communication interface: TYPE-CUSB、SWD、USART(A9:TXA10:RX)
Board size: 21MM * 53MM
Product Descriptions
This is an STM32F411CEU6 core development board with an ARM core Cortex@-M4 It is rich in resources and backed by powerful resources provided by STMicroelectronics, making it a good choice for both learning and secondary development.
Product Functions
1. Download firmware
1.1 Port: The module can download firmware to fash using USB/USART (A9: TX A10: RX)/SWD interface. For other download methods, you need to check the ST official website.
1.2 Hardware: Type USB2 data cable/USB to serial module/ST-LINK
1.3 Software: STM32CubeProgrammer (Download the software from the ST official website)
1.4 Download firmware method. Taking USB download as an example:
Product Size
Product Show
