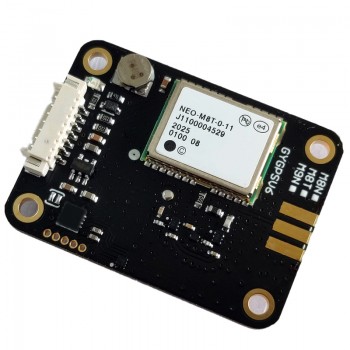

GY-GPSV6-M8N NEO-M8N GPS module ensures high-precision positioning and original packaging

Product Parameters

Power supply: 3-5v

Current: 50ma

TTL serial communication output

Equipped with an electronic compass, the compass is equivalent to HMC5883 and can be directly connected to px4, A_P_M, etc

Equipped with high-quality active antennas for stronger satellite reception

The module can be connected to an external SAM antenna using a 1.6mm flat base, which can be accessed from the side

Equipped with PPS second pulse output for easy testing

The wiring terminals have a spacing of 1.25mm, and there are solder pads with a spacing of 2.54mm on the back, which can also be soldered with ordinary pins

We provide computer testing software and do not provide internal circuit diagrams

Module size: 39mm * 29mm * 9.5mm (length, width, thickness)

Installation aperture 2mm, hole spacing 22.5mm 32.5mm

Modules usually need to be placed in open outdoor areas to achieve better star collection effects. It takes some time for the first power on and cold start
