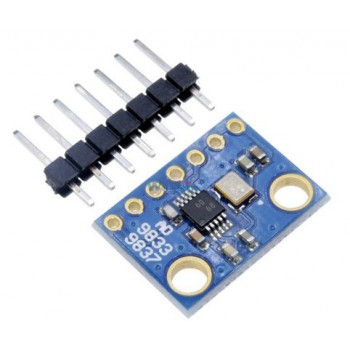

GY-9833 sine wave signal generator DDS module AD9833 programming serial interface module chip

Product Technical Parameters

Digital programmable frequency and phase

12.65MW3V power consumption

Output frequency range from 0MHz to 12.5MHz

Bit resolution: 0.1HZ to 25MHz reference clock

Sine wave, triangular wave, and square wave output 2.3V to 5.5V power supply

No need for external components

SPI interface cable

Extended temperature range: 6140C to+1050C

Power off option

Update frequency: 25 (maximum)

VOUT maximum value: 0.65V

Minimum VOUT: 38MV

VOUT temperature coefficient: 2000

High voltage input: 1.7-2.8V

Low voltage input: 0.5-0.7V

Input current: 10&MIRCO-

Entry capacity: 3PF

The working temperature ranges from 61400C to+1050C; Typical specification is 25 "C

Size: 17 * 12MM/0.66 * 0.47
