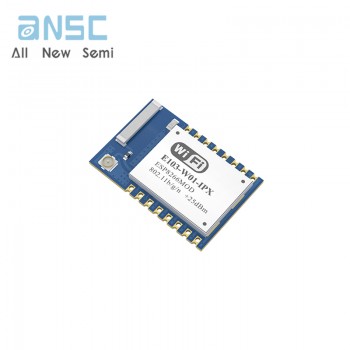

Hot selling Original stock sale E103-W01-IPX High Quality 2.4ghz 20dBm 100m wifi module ESP8266 ESP WIFI Module
Manufacturer Product Number
E103-W01-IPX
Description
E103-W01-IPX is a highly cost-effective 100mW (20dBm) serial to Wi-Fi module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
E103-W01-IPX is a highly cost-effective 100mW (20dBm) serial to Wi Fi module, packaged in a small surface mount, ceramic antenna and IPX coexist, operating in the 2.4-2.4835GHz frequency band. The module can use serial ports for data transmission and reception, reducing the threshold for wireless applications.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E103-W01-IPX | |
| Working frequency | 2402~2483 MHz | Default: 2.4GHz |
| Transmitting power | 20 dBm | About 100mW |
| WiFi version | 802.11 b/g/n | |
| Test distance | 100 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m |
| Size | 16 * 24 mm | |
| Antenna type | Ceramic antenna / IPEX | 50Ω characteristic impedance |
| Communication interface | UART | |
| Package | SMD |
Actual product photos
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
