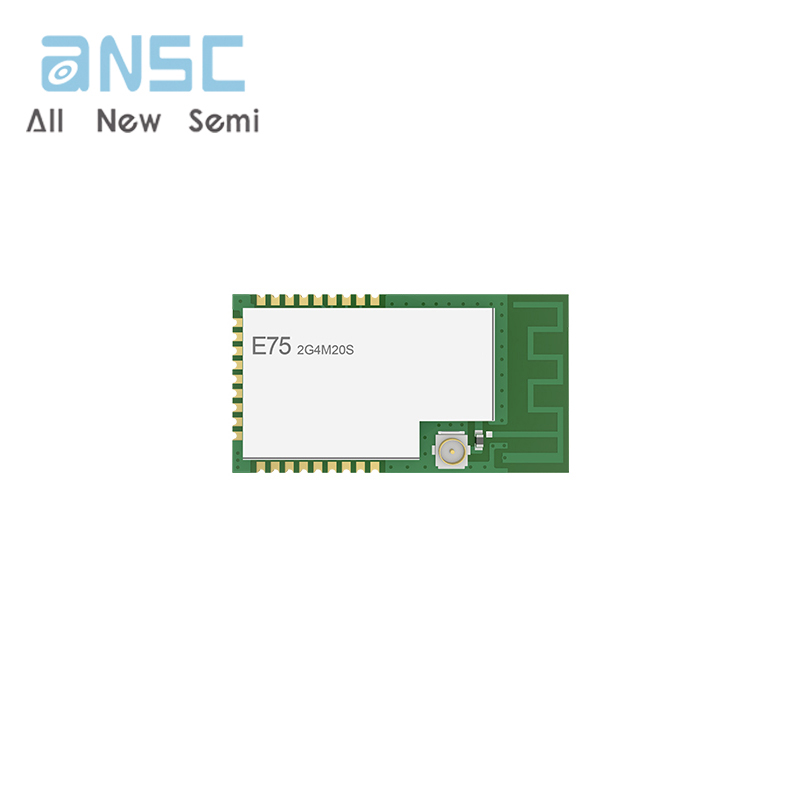

Original stock sale E75-2G4M20S 1000m 20dBm JN5168 IEEE802.15.4 ISM Band ZigBee Wireless Module 2.4GHz SoC Development Board
Manufacturer Product Number
E75-2G4M20S
Description
E75-2G4M20S is a low-power, high-performance ZigBee module developed based on NXP JN5168 chip
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
E75-2G4M20S is a low-power, high-performance ZigBee module developed based on NXP JN5168 chip, providing a complete application integration solution based on IEEE802.15.4 standard ISM (2.4-2.5GHz) frequency band. Supports protocols such as FastZigBee, ZNET, JenNet IP, ZigBee PRO, RF4CE, etc., and can be quickly applied to industrial control, industrial data collection, agricultural control, mining personnel positioning, smart homes, smart remote controllers, and other occasions.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E75-2G4M20S | |
| Working frequency | 2405~2480 MHz | Default: 2.4GHz(32MHz oscillator) |
| Transmitting power | 20 dBm | About 100mW |
| Receiving sensitivity | -100 dBm | Air data rate: 250kbps |
| Air data rate | 250kbps | |
| Test distance | 1000m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 250kbps |
| IC | JN5168ASGU482/QFN40 | - |
| FLASH | 256 KB | - |
| RAM | 32 KB | - |
| Core | 32bit RISC CPU | - |

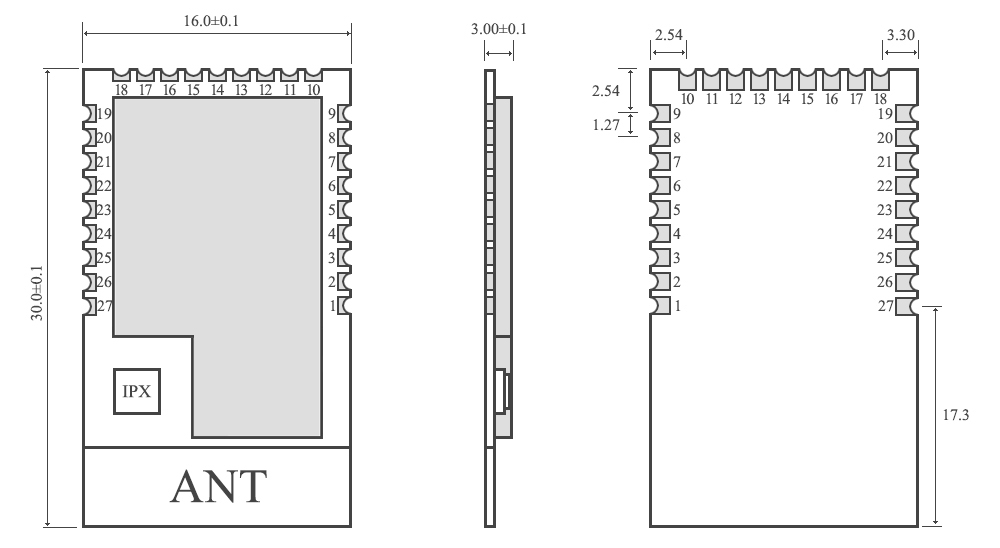

| Size | 16 * 30 mm | - |
| Antenna type | PCB / Stamp hole | - |
| Communication interface | SPI | - |
| Package | SMD | - |
Actual product photos
