Original RTXM228-618 SM-15km-1310-2.15~6.144G-I Optical fiber module

Product Overview

The RTXM228-618 6Gigabit 1310nm DFB transceiver is designed for transmitting and receiving serial optical data links over single-mode fiber at data rates from 2.1 Gb/s to 6.25 Gb/s. This transceiver complies with applicable portions of 2/4GFC, CPRI, and SFF-8431. Digital diagnostics are available via a 2-wire serial interface, as specified in SFF-8472.

Product Features

6Gbps 15Km link length at DFB 1310nm

LC duplex connector

Low power consumption <1.2W

Wide operating temperature range -40°C to 85°C

Single +3.3V±5 power supply

Digital monitoring compliant with SFF-8472 standard

Product Applications

Wireless and cellular base station system interconnection:

OBSAI rates 6.144Gb/s, 3.072Gb/s

CPRI rates 4.9152 Gb/s, 2.4576 Gb/s

2/4GFC data storage channel

Product Description

Specifications

Part Number: RTXM228-618

Form Factor: SFP+

Data Rate: 2.125 ~ 6.25Gb/s

Transmitter: DFB

Receiver: PIN

Wavelength: 1310nm

Distance: 15km

Operating Temperature: -40°C to 85°C

Applications: OBSAI, CPRI, 2/4GFC

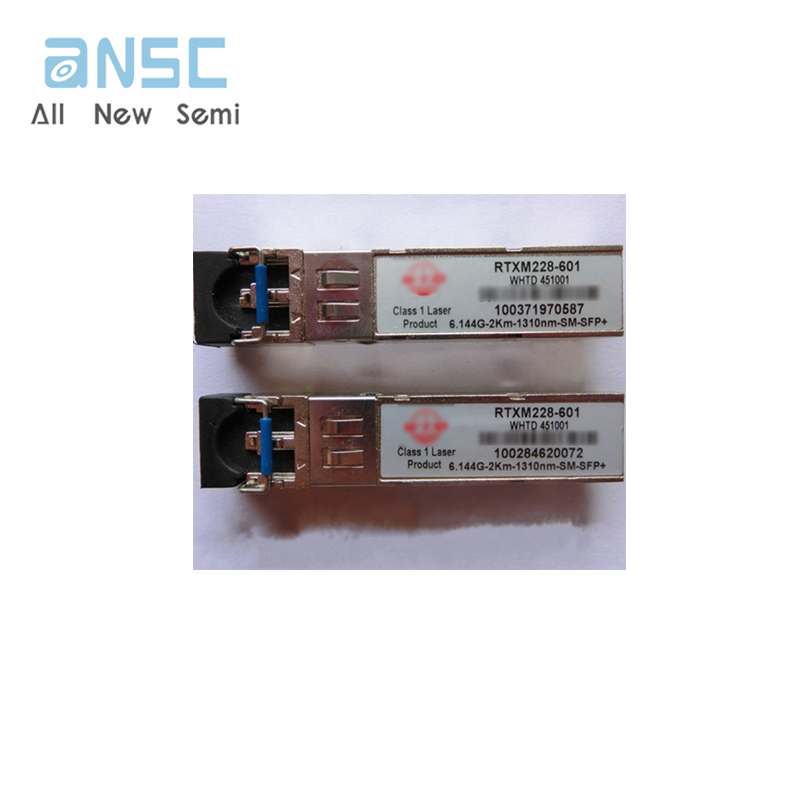

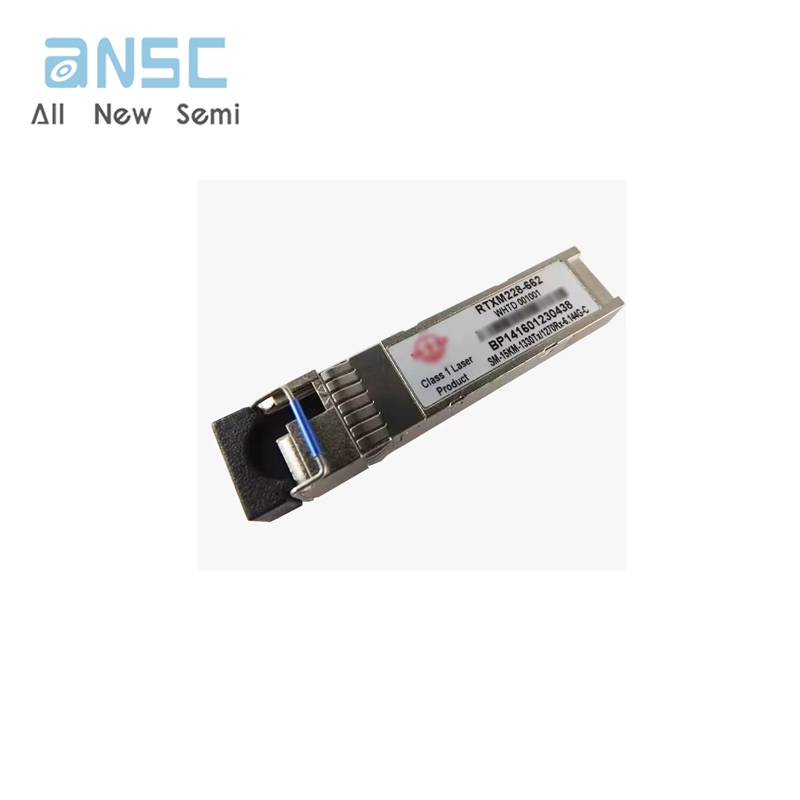

Actual image of the product
