One-Stop Supply Electronic component BOM LIST LC550DQJ-SMA1 Logic Board
Manufacturer
Manufacturer Product Number
LC550DQJ-SMA1
Description
LC550DQJ-SMA1 Logic Board
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| brand | Original |
| Model P/N | LC550DQJ-SMA1 |
| Diagonal size | 7.0" |
| Panel type | LCD display, LCD monitor |
| resolution | 800(RGB)× 480，WVGA 134PPI |
| Pixel format | RGB vertical stripes |
| Activity area | 156.24(W)× 82.368(H) mm |
| Baffle opening | 158.7(W)× 85.1(H) mm |
| Profile dimensions | 168.8(W)× 93.5(H)× 11(D) mm |
| surface | Anti-glare, reflection 4.0% (typical) |
| brightness | 490 cd/m² (typical) |
| contrast | 600:1 (typical)(TM) |
| visual angle | 70/70/50/60 (typical) (cr ≥ 10) |
| Display mode | TN, usually white, permeabil |
| Best view | 6 o'clock |
| Response time | 5/15 (typical) (Tr/Td) |
| Display color | 262K 62% NTSC |
| Lamp type: | WLED, 15k hours, with LED driver |
| frequency | 60 Hz |
| touch screen | No |
| Panel weight | 210/220g (typical/max) |
| apply | Automotive displays |
| Signal interface | 40 pinsConnector |
| Input voltage | 5.0V (typical) |
| environment | Operating temperature. :-30 ~ 85 ℃; Storage temperature. :-40〜85 °C; Vibration Rating: 2.84G (27.8 m/s²) |
| 7.0 inch 800*480 LC550DQJ-SMA1 LCD display panel | |

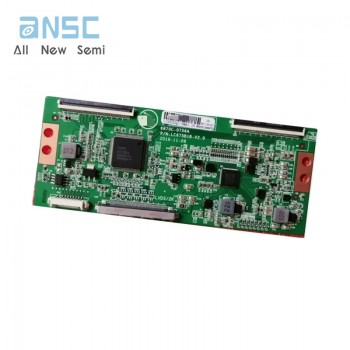

Actual image of the product
Other Products In The same category:
LC550DQJ-SMA1 Logic Board
100In stock:
Can ship immediately
