original DC-DC 2-24V to 2-28V Step Up Adjustable Power Module Step Up Boost Converter 2A SX1308
Manufacturer
Manufacturer Product Number
2A SX1308
Description
2A SX1308 DC-DC Step Up Adjustable Power Module Step Up Boost Converter
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
Description:
WAVGAT SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency.
The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest
RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet),
which can realize large current output of up to 2A. It widely used in 3G network products,
digital products, mobile power supply,battery power supply, equipment, etc.
Features:
Oscillation frequency 1.2MHz
Efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage
Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A
Product Parameters
| Type# | Description |
| PART# | 2A SX1308 |
| Place of Origin | China |
| Brand Name | Original |
| Functional Application | More |
| Maximum input voltage | DC 2-24V |
| Maximum output voltage | DC 2-28V |
| Switching frequency | 1.2MHz |
| Maximum current output | 2A |
| Package Weight | 0.043kg (0.09lb.) |
| Package Size | 15cm x 10cm x 3cm (5.91in x 3.94in x 1.18in) |
| Type: | Drive IC |

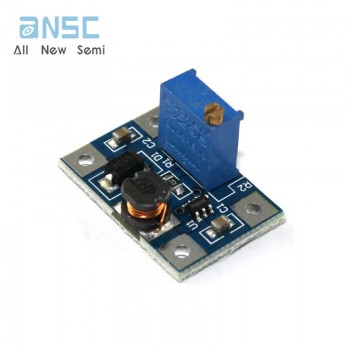

Actual image of the product
