Hot sale Original AOCJYR-20.000MHz-M5627LF XTAL OSC OCXO 20.0000MHZ LVCMOS 20 MHz OCXO LVCMOS Oscillator 3.3V
Manufacturer Product Number
AOCJYR-20.000MHz-M5627LF
Description
AOCJYR-20.000MHz-M5627LF Oscillator 20 MHz OCXO LVCMOS Oscillator 3.3V 4-SMD
Package Condition
Strip
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
FEATURES:
• 25.4 x 22.1 x 12.7 mm True SMT- RoHS Compliant Reflow-able Package
• SC-Cut, High “Q” resonator based design
• Either Sinewave or CMOS RF output
• Available with ±30 ppb over -40°C to +75°C operating temperature Range
• Tighter Stabilities to ±5.0 ppb over 0°C to +50°C also available
• Exceptional long-term Aging of ±500 ppb over 10-Year Product Life
• Excellent close-in phase noise (-130 dBc/Hz Typical @100 Hz offset from 10MHz carrier)
APPLICATIONS:
• Cellular Infrastructure
• Radar Systems
• Test & Measurement Equipment
• GPS Tracking with precision hold-over accuracy
• WiMax / WLAN
Product Description
| Type | Description |
| ANSC PART# | ANSC - AOCJYR-20.000MHz-M5627LF |
| Category | Crystals, Oscillators, Resonators |
| Oscillators | |
| Mfr | / |
| Series | AOCJYR |
| Packaging | Strip |
| Part Status | Active |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 20 MHz |
| Function | - |
| Output | LVCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±20ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 122mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.382" L x 0.295" W (9.70mm x 7.50mm) |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Current - Supply (Disable) (Max) | - |

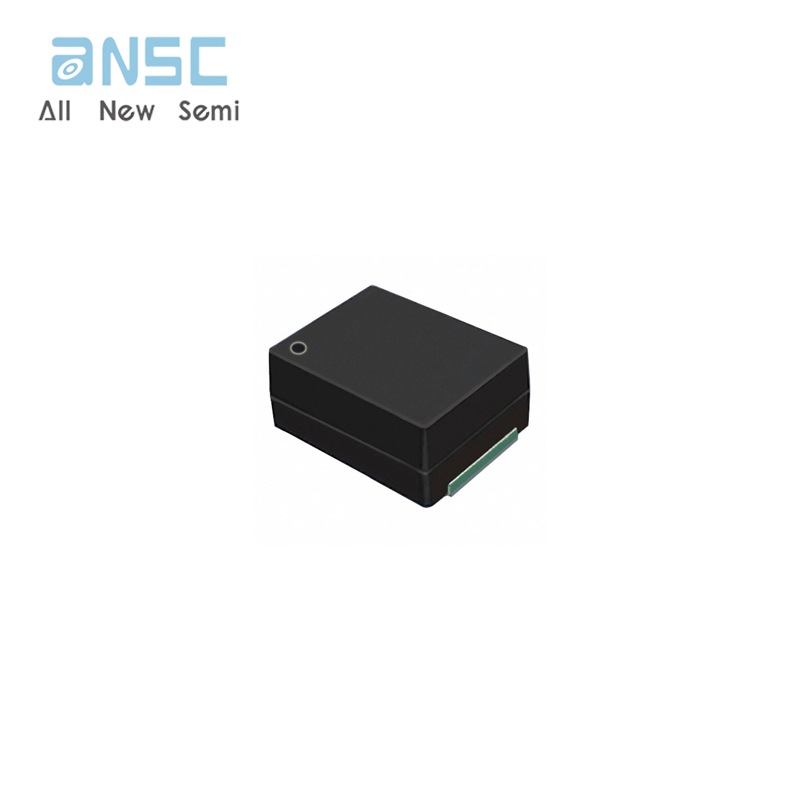

Actual image of the product

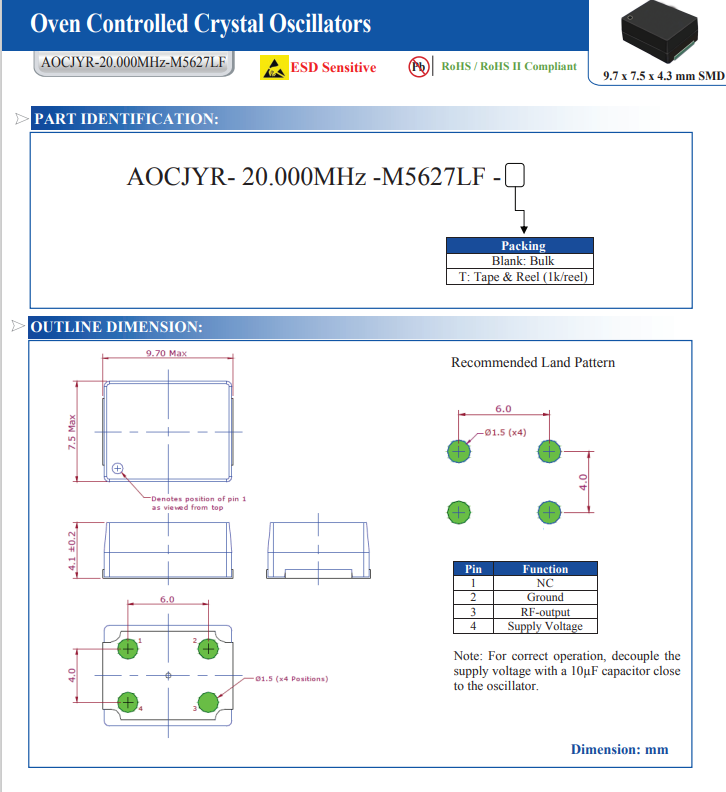

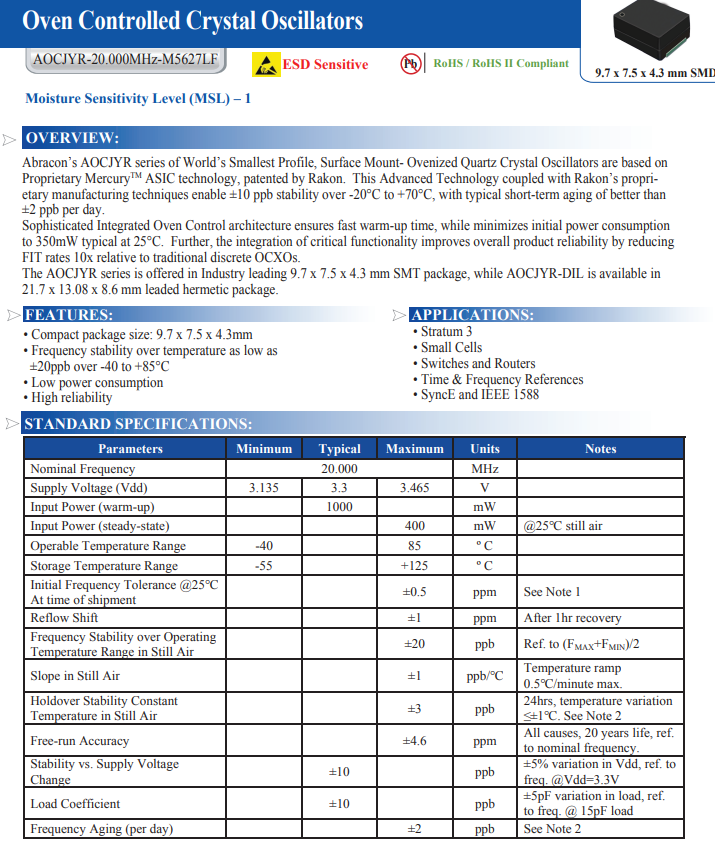

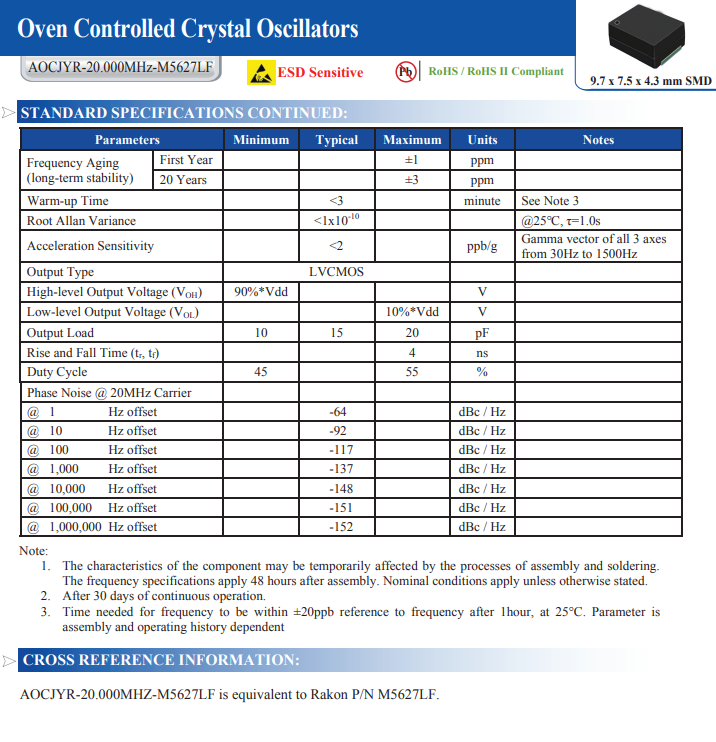

Product datasheet
For more information, please download
