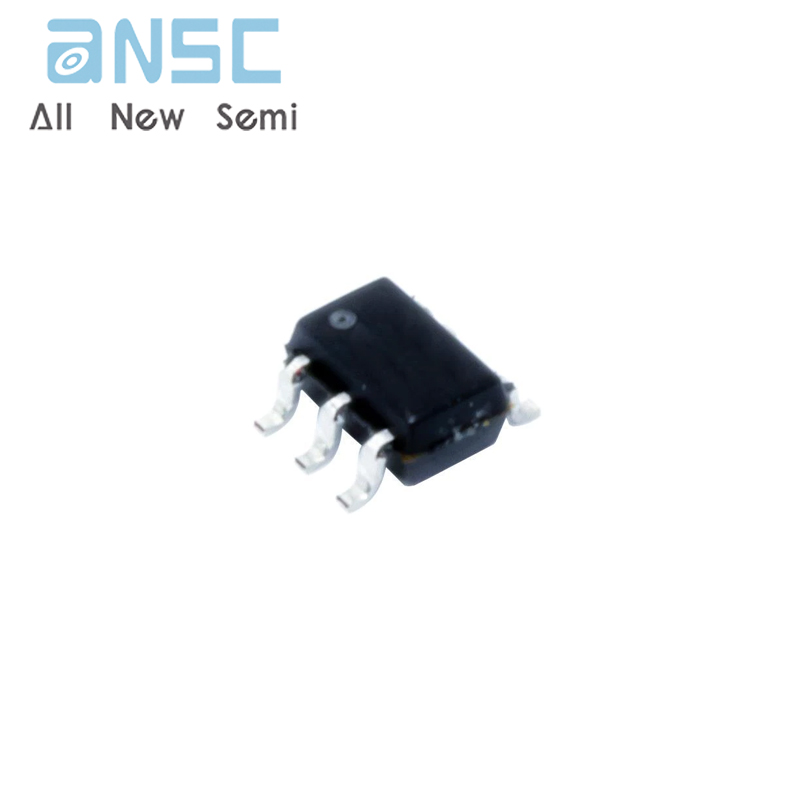

Spot sales of SN74LVC1GU04DCKR Single Inverter Gate SC70-5
Manufacturer Product Number
SN74LVC1GU04DCKR
Description
SN74LVC1GU04DCKR Single Inverter Gate SC70-5
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This single inverter gate is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1GU04 contains one inverter with an unbuffered output and performs the Boolean function Y = A.
NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.
Product Features
• Available in the Texas Instruments
• ±24-mA Output Drive at 3.3 V NanoFree™ Package
• Latch-Up Performance Exceeds 100 mA Per
• Supports 5-V VCC Operation JESD 78, Class II
• Inputs Accept Voltages to 5.5 V
• ESD Protection Exceeds JESD 22
• Unbuffered Output – 2000-V Human-Body Model (A114-A)
• Max t pd of 3.7 ns at 3.3 V – 200-V Machine Model (A115-A)
• Low Power Consumption, 10-µA Max I CC – 1000-V Charged-Device Model (C101)
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LVC1GU04DCKR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74LVC |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.41V ~ 1.38V |
| Input Logic Level - High | 1.24V ~ 4.13V |
| Max Propagation Delay @ V, Max CL | 3.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 74LVC1GU04 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
SN74LVC1GU04DCKR Single Inverter Gate SC70-5
22In stock:
Can ship immediately
