Hot-selling MP62160DS-LF-Z 3.3V/5V,Single-Channel 2A Current-Limited Power Distribution Switch with Output Discharge SOP-8

Product Descriptions

The MP62160/MP62161 Power Distribution Switch features internal current limiting to prevent damage to host devices due to faulty load conditions. The MP62160/MP62161 operates from a 3.3V or 5V input voltage and includes an 85mΩ Power MOSFET to handle up to 2A continuous load with a 2.8A typical current limit. The MP62160/MP62161 has builtin protection for both over current and increased thermal stress. For over-current protection (OCP), the device will limit the current by going into a constant current mode.

When continuous output overload condition exceeds power dissipation of the package, the thermal protection will shut the part off. The device will recover once the device temperature reduces to approx 120°C.

The MP62160/MP62161 involves a discharge function that provides a resistive discharge path for the external output capacitor when the part is disabled.

The MP62160/MP62161 is available in QFN8E, MSOP8E and SOIC8 packages.

Product Features

• 2A Continuous Current

• 2.8A accurate Current Limit

• Output Discharge Function

• 2.7V to 5.5V Supply Range

• 90uA Quiescent Current

• 85mΩ MOSFET

• Thermal-Shutdown Protection

• Under-Voltage Lockout

• 8ms FLAG Deglitch Time

• No FLAG Glitch During Power Up

• Reverse Current Blocking

• Active High & Active Low Options

• UL Recognized: E322138

Product Applications

• Smartphone and PDA

• Portable GPS Device

• Notebook PC

• Set-top-box

• Telecom and Network Systems

• PC Card Hot Swap

• USB Power Distribution

Product Specification

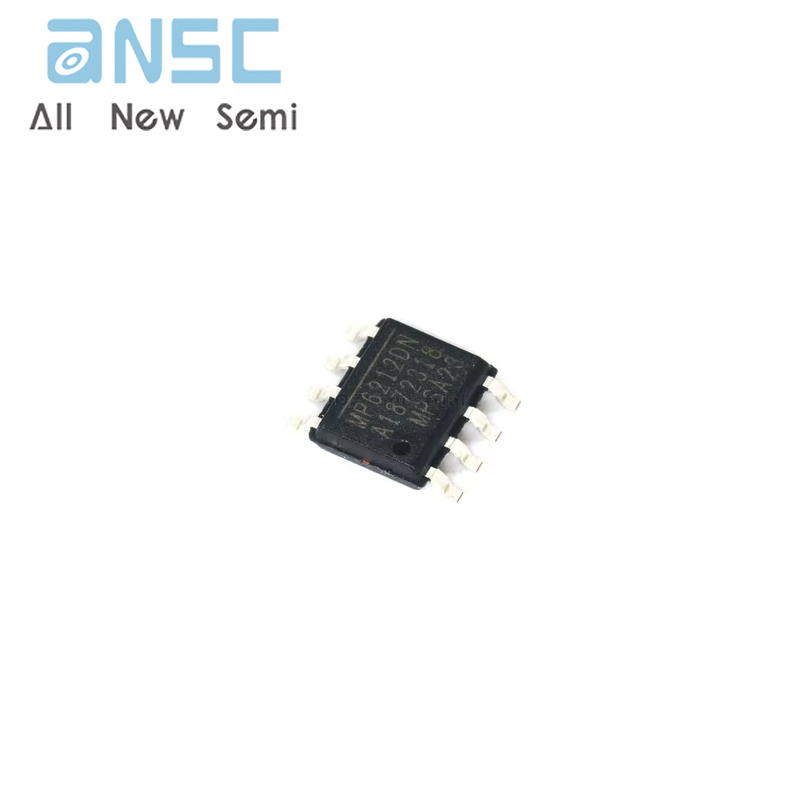

Product Photos

For more product information, please download the PDF

​
