Hot-selling and scarce MP2612ER-LF-Z 2A,24V Input, 600kHz 2-3 Cells Switching Li-Ion Battery Charger QFN

Product Features

The MP2612 is a monolithic switching charger for 2-3 cells series Li-Ion cells battery with a built-in internal power MOSFET. It achieves up to 2A charge current with current mode control for fast loop response and easy compensation. The charge current can be programmed by sensing the current through an accurate sense resistor.

MP2612 regulates the charge current and charge voltage using two control loops to realize high accuracy CC charge and CV charge.

Fault condition protection includes cycle- bycycle current limiting and thermal shutdown. Other safety features include battery temperature monitoring, charge status indication and programmable timer to finish the charging cycle.

The MP2612 requires a minimum number of readily available standard external components.

The MP2612 is available in 16-pin 4mm x 4mm QFN package.

Product Features

 Charges 2-3 Cells Series Li-Ion Battery Packs

 Wide Operating Input Range

 Up to 2 A Programmable Charging Current

 ±0.75 PERCENT VBATT Accuracy

 0.2Ω Internal Power MOSFET Switch

 Up to 90 PERCENT Efficiency

 Fixed 600kHz Frequency

 Preconditioning for Fully Depleted Batteries

 Charging Operation Indicator

 Input Supply and Battery Fault Indicator

 Thermal Shutdown

 Cycle-by-Cycle Over Current Protection

 Battery Temperature Monitor and Protection

Product Applications

 Distributed Power Systems

 Chargers for 2-Cell or 3-Cell Li-Ion Batteries

 Pre-Regulator for Linear Regulators

 Smart Phones

 Net-book

Product Specification

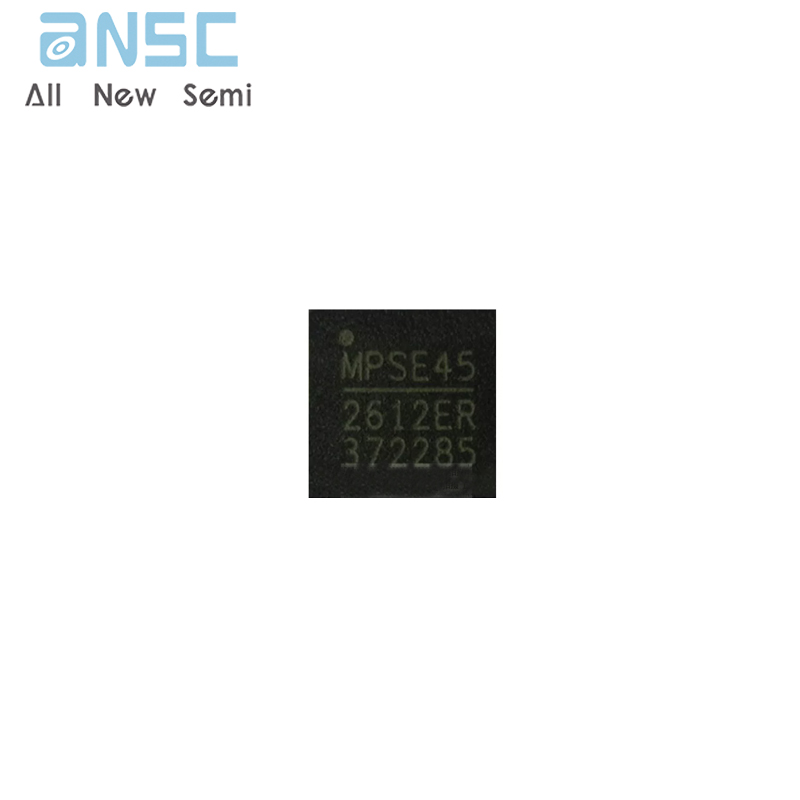

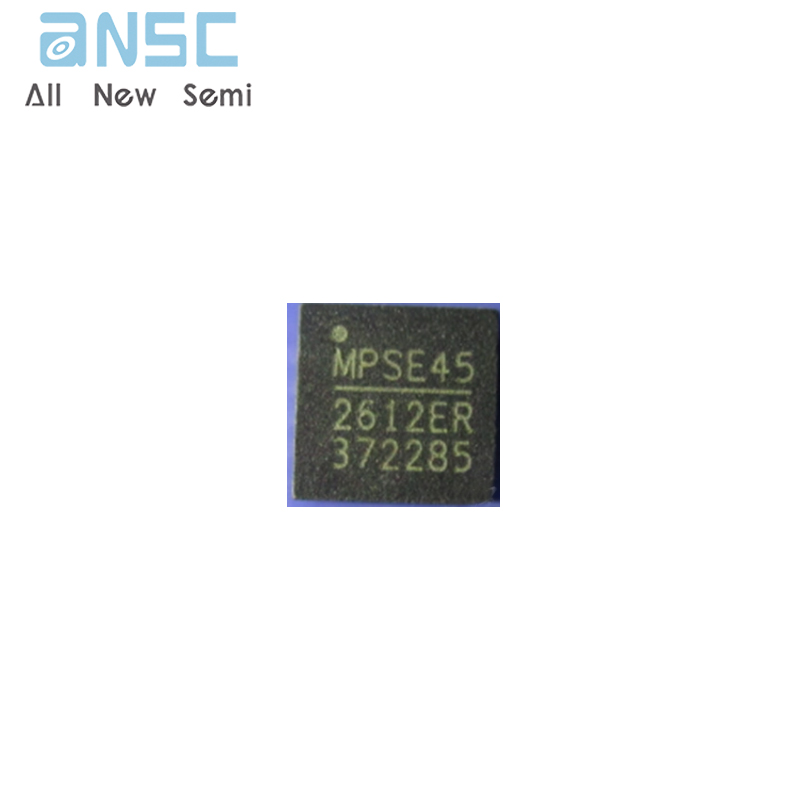

Product Photos

For more product information, please download the PDF
