Hot-selling and scarce MP5001DQ-LF-Z 5V, 1A- 5A Programmable Current Limit Switch QFN
Manufacturer Product Number
MP5001DQ-LF-Z
Description
MP5001DQ-LF-Z 5V, 1A- 5A Programmable Current Limit Switch QFN
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MP5001 is a protection device designed to protect circuitry on the output (source) from transients on input (VCC). It also protects VCC from undesired shorts and transients coming from the source.
At start up, inrush current is limited by limiting the slew rate at the source. The slew rate is controlled by a small capacitor at the dv/dt pin. The dv/dt pin has an internal circuit that allows the customer to float this pin (no connect) and still receive a 1.1ms ramp time at the source.
The max load at the output (source) is current limited. This is accomplished by utilizing a sense FET topology. The magnitude of the current limit is controlled by an external resistor from the ILimit pin to the Source pin.
An internal charge pump drives the gate of the power device, allowing a very low on-resistance DMOS power FET of just 44mΩ.
The source is protected from the VCC input being too low or too high. Under Voltage Lockout (UVLO) assures that VCC is above the minimum operating threshold, before the power device is turned on. If VCC goes above the high output threshold, the source voltage will be limited.
Product Features
• Integrated 44mΩ Power FET withstand 20V
• Enable/Fault Pin
• Adjustable Slew Rate for Output Voltage
• Adjustable Current Limit
• Thermal Protection
• Over Voltage Limit
Product Applications
• Hot Swap
• PC Cards
• Cell Phones
• Laptops
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP5001DQ-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4V ~ 10V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Rds On (Typ) | 44mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-QFN (3x3) |
| Package / Case | 10-VFDFN Exposed Pad |
| Base Product Number | MP5001 |

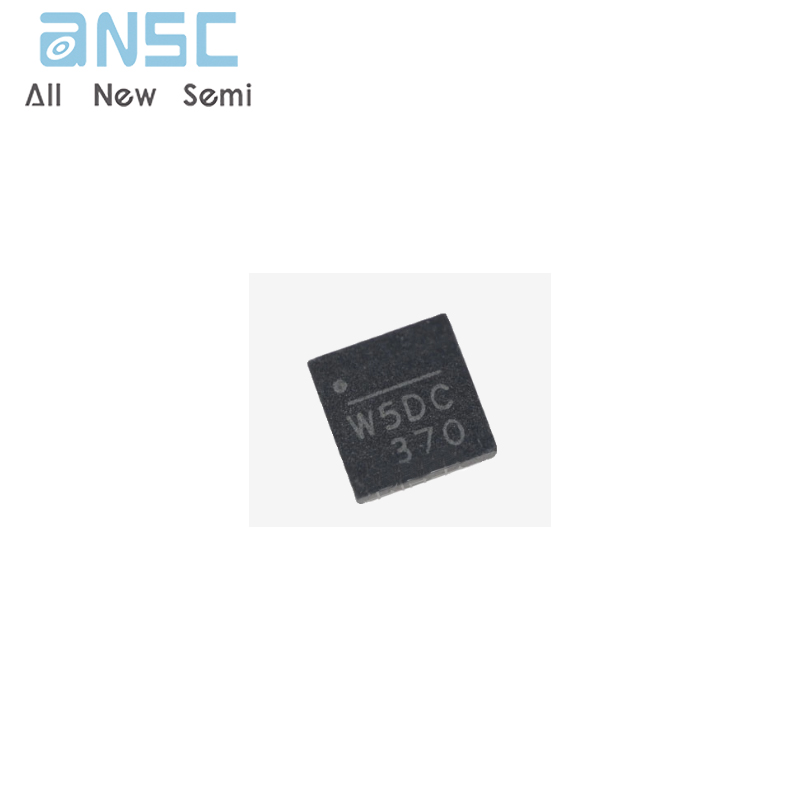

Product Photos
For more product information, please download the PDF
