Hot-selling and scarce RT9817C-30PH Micro-Power Voltage Detectors with Manual Reset SOT143 spot stock

Product Descriptions

The RT9817 is a micro-power voltage detector with deglitched manual reset input supervising the power supply voltage level for microprocessors (μP) or digital systems. It provides internally fixed threshold levels with 0.1V per step ranging from 1.2V to 5V, which covers most digital applications. It features low supply current of 3μA. The RT9817 performs supervisory function by sending out a reset signal whenever the VDD voltage falls below a preset threshold level. This reset signal will last the whole period before VDD recovering. Once VDD recovered upcrossing the threshold level, the reset signal will be released after a certain delay time. To pull reset signal low manually, just pull the manual reset input (MR) below the specified VIL level. RT9817 is provided in SC-82 and SOT-143 packages.

Product Features

 Internally Fixed Threshold 1.2V to 5V in 0.1V Step

 High Accuracy ±±±1.5 percent

 Low Supply Current 3μμμA

 No External Components Required

 Quick Reset within 20μμμs

 Built-in Recovery Delay Include 0ms, 55ms, 220ms,450ms Options

 Low Functional Supply Voltage 0.9V

 CMOS Push-Pull Output

 Small SC-82 and SOT-143 Packages

 RoHS Compliant and 100 percent Lead (Pb)-Free

Product Applications

 ​Computers

 Controllers

 Intelligent Instruments

 Critical μP and μC Power Monitoring

 Portable/Battery-Powered Equipment

Product Specification

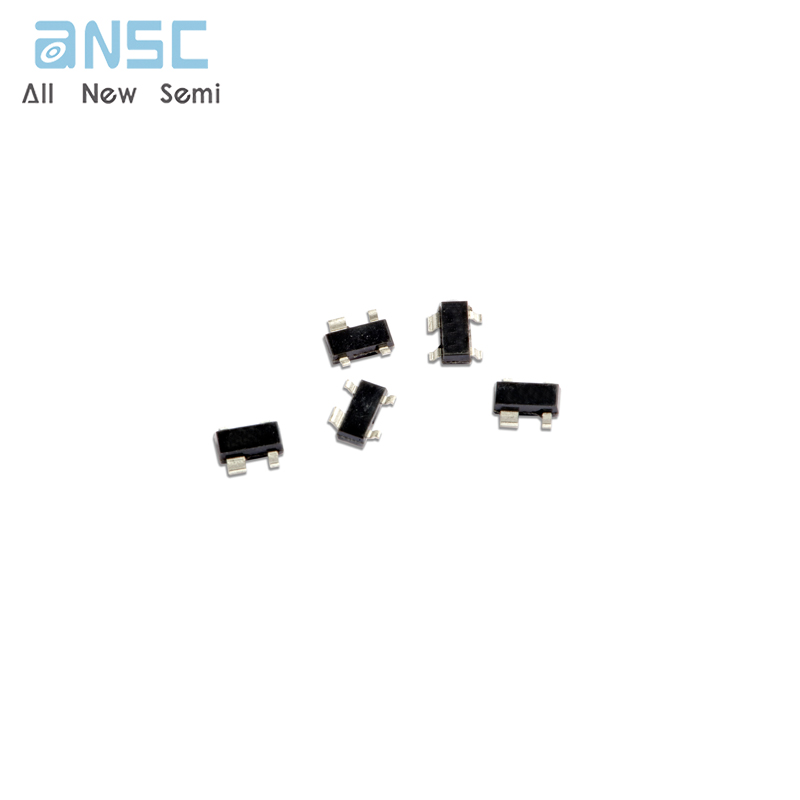

Product Photos

For more product information, please download the PDF
