Hot-selling and scarce SESD0201X1BN-0010-098 Single-channel Silicon ESD Protection Devices DFN0201 spot stock

Product Descriptions

The Silicon ESD (SESD) devices help provide protection and improve reliability of  applications including but not limited to consumer, portable and mobile electronics. The  0402- and 0201- sized devices have industry leading ultra-low capacitance of 0.10pF for  bi-directional devices, and 0.20pF for uni-directional devices with low insertion loss which  help provide protection for ultra-high-speed data signals. The single-channel SESD devices  provide robust ESD protection with industry-leading 20kV contact and air discharge  rating per IEC61000-4-2 standard. The ultra-low capacitance enables signal integrity for  today’s highest-speed interfaces including USB 3.0/2.0, HDMI, eSATA, DisplayPort, and  Thunderbolt.

TE offers the single-channel devices in uni-directional and bi-directional configurations.  Bi-directional devices offer the lowest capacitance and insertion loss, allow placement on  the PCB without orientation constraint and do not clip signals that swing below ground.  Uni-directional devices offer a low negative breakover voltage and help provide protection  for high-speed digital interfaces. The 0201-sized XDFN small footprint — measuring a mere  0.6mm x 0.3mm x 0.31mm – offers designers placement flexibility in space-constrained  applications.

Product Features

• Industry-leading lowest capacitance; provides lowest insertion loss for high speed data signals

• Provides ESD protection up to 20kV contact and air discharge per IEC61000-4-2

• Small size ESD protection diodes for high speed data signals (0402- and 0201- size devices)

• Helps protect electronic circuits against damage from Electrostatic Discharge (ESD), lightning and cable discharge events

• Assist equipment to pass IEC61000-4-2, level 4 testing

Product Applications

• Consumer, mobile and portable electronics

• Tablet PC and external storage with high speed interfaces

• Ultra-high speed data lines

• USB 3.0/2.0, HDMI 1.3/1.4, DisplayPort interface, Thunderbolt interface (Light Peak), V-by-One HS, and LVDS interface

• Applications requiring high ESD performance in small packages

Product Specification

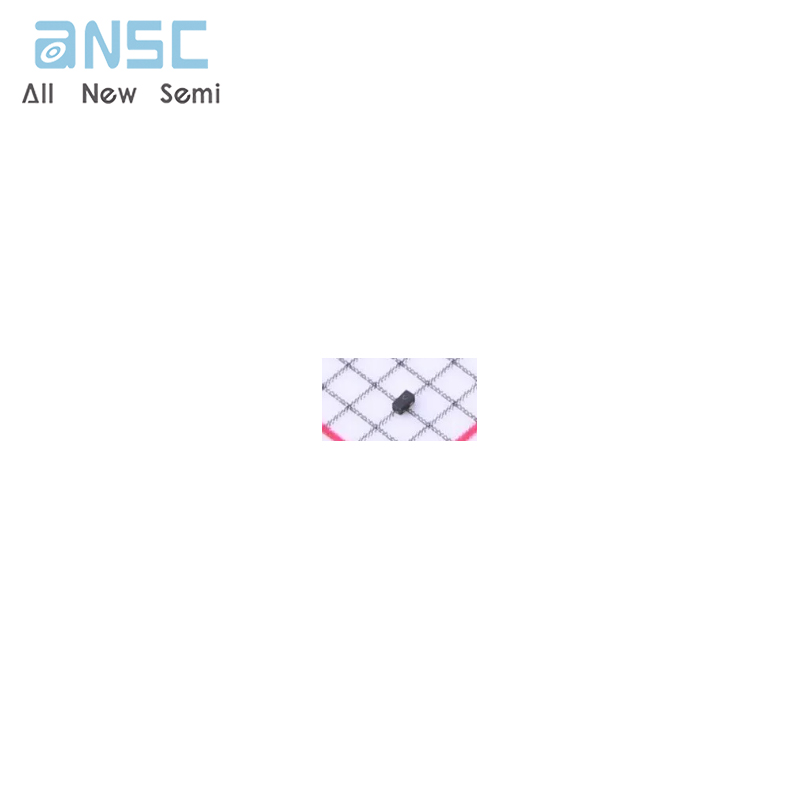

Product Photos

For more product information, please download the PDF
