Hot-selling and scarce SI3014-KT 3.3 V FCC/JATE DIRECT ACCESS ARRANGEMENT TSSOP16 spot stock

Product Descriptions

The Si3035 is an integrated direct access arrangement (DAA) chipset that provides a digital, low-cost, solid-state interface to a telephone line. Available in two 16-pin small outline packages, it eliminates the need for an analog front end (AFE), an isolation transformer, relays, opto-isolators, and a 2- to 4-wire hybrid. The Si3035 dramatically reduces the number of discrete components and cost required to achieve compliance with FCC Part 68. The Si3035 interfaces directly to standard modem DSPs and supports all FCC and JATE out-of-band noise requirements. International support is provided by the pin compatible Si3034.

Product Features

! 3.3 V to 5 V Digital/Analog Power Supplies

! JATE Filter Option

! 86 dB Dynamic Range TX/RX Paths

! Daisy-Chaining for Up to Eight Devices

! Integrated Ring Detector

! 3000 V Isolation

! Support for Caller ID

! Low Profile SOIC Packages

! Direct Interface to DSPs

! Integrated Modem Codec

! Compliant with FCC Part 68

! Low-Power Standby Mode

! Proprietary ISOcap™ Technology

! Pin Compatible with Si3034, Si3032

! Optional IIR Digital Filter

Product Applications

! V.90 Modems

! Voice Mail Systems

! Fax Machines

! Set Top Boxes

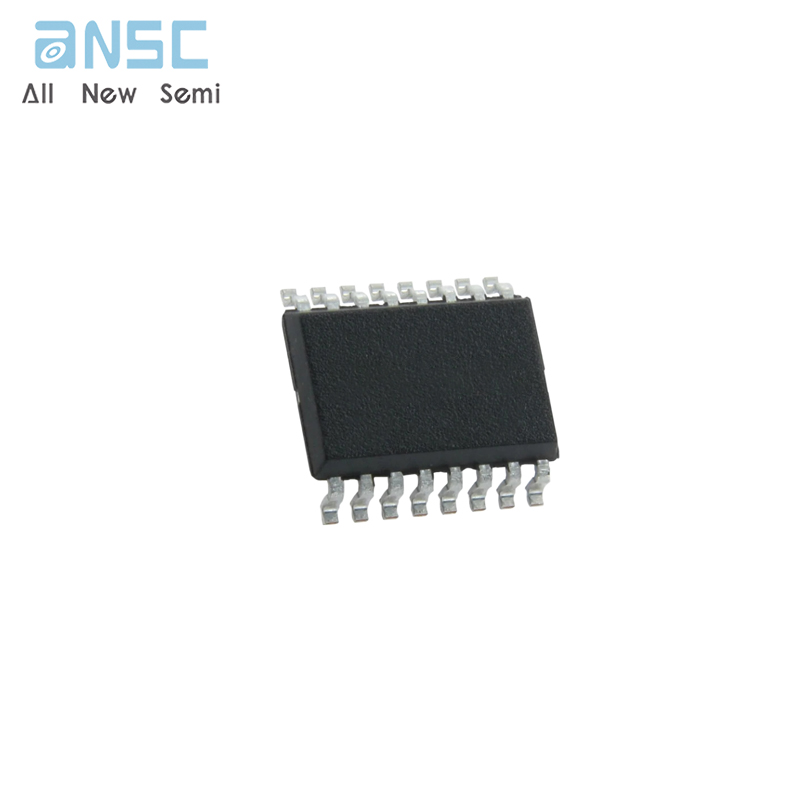

Product Photos

​

For more product information, please download the PDF
