Hot-selling and scarce CPC5603CTR N Channel Depletion Mode FET SOT223 spot stock
Manufacturer Product Number
CPC5603CTR
Description
CPC5603CTR N Channel Depletion Mode FET SOT223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The CPC5603C is an “N” channel depletion mode Field Effect Transistor (FET) that utilizes Clare’s proprietary third generation vertical DMOS process. The third generation process realizes world class, high voltage MOSFET performance in an economical silicon gate process. The vertical DMOS process yields a highly reliable device particularly in difficult application environments such as telecommunications.
One of the primary applications for the CPC5603C is as a linear regulator/ hook switch for the LITELINK™ family of Data Access Arrangements (DAA) Devices CPC5620A, CPC5621A, and CPC5622A.
The CPC5603C has a typical on-resistance of 8Ω, a breakdown voltage exceeding 415V and is available in an SOT-223 package. As with all MOS devices, the FET structure prevents thermal runaway and thermal-induced secondary breakdown.
Product Features
• Low on resistance 8 ohms
• Breakdown voltage 415V minimum
• High input impedance
• Low input and output leakage
• Small package size SOT-223
• PC Card (PCMCIA) Compatible
• PCB Space and Cost Savings
Product Applications
• Support Component for LITELINK™ Data Access Arrangement (DAA)
• Telecom
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CPC5603CTR |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel, Depletion Mode |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 415 V |
| Current - Continuous Drain (Id)@ 25°C | 5mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 0.35V |
| Rds On (Max) @ Id, Vgs | 14Ohm @ 50mA, 350mV |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 300 pF @ 0 V |
| Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | CPC5603 |

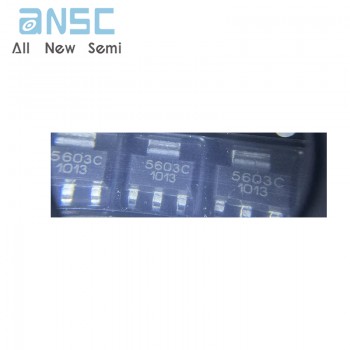

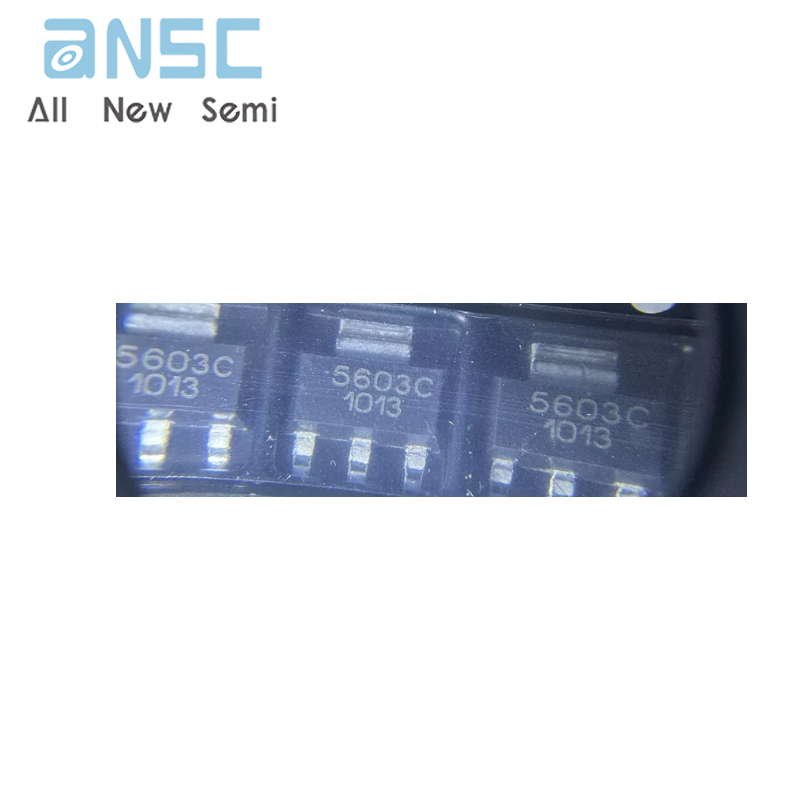

Product Photos
