Hot-selling and scarce IRF8714TRPBF Power MOSFET SOP8 spot stock
Manufacturer Product Number
IRF8714TRPBF
Description
IRF8714TRPBF Power MOSFET SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The IRF8714PbF incorporates the latest HEXFET Power MOSFET Silicon Technology into the industry standard SO-8 package. The IRF8714PbF has been optimized for parameters that are critical in synchronous buck operation including Rds(on) and gate charge to reduce both conduction and switching losses. The reduced total losses make this product ideal for high efficiency DC-DC converters that power the latest generation of processors for Notebook and Netcom applications.
Product Features
Very Low Gate Charge
Very Low RDS(on) at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage and Current
20V VGS Max. Gate Rating
100% tested for Rg
Lead-Free
Product Applications
Control MOSFET of Sync-Buck Converters used for Notebook Processor Power
Control MOSFET for Isolated DC-DC Converters in Networking Systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IRF8714TRPBF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| cms-filter-header-series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8.7mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 25µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1020 pF @ 15 V |
| Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| cms-filter-header-bpn | IRF8714 |

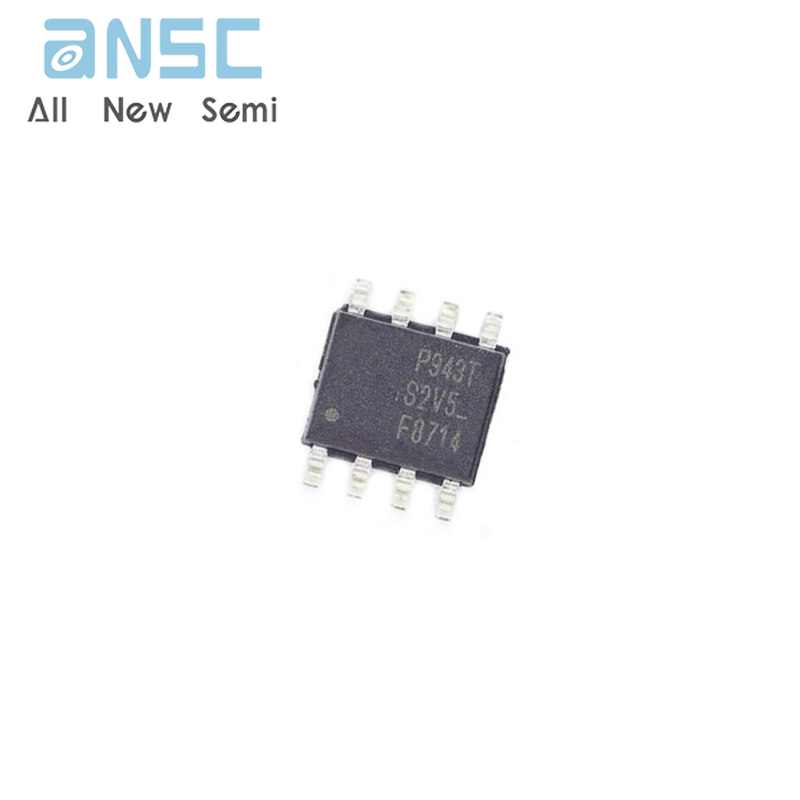

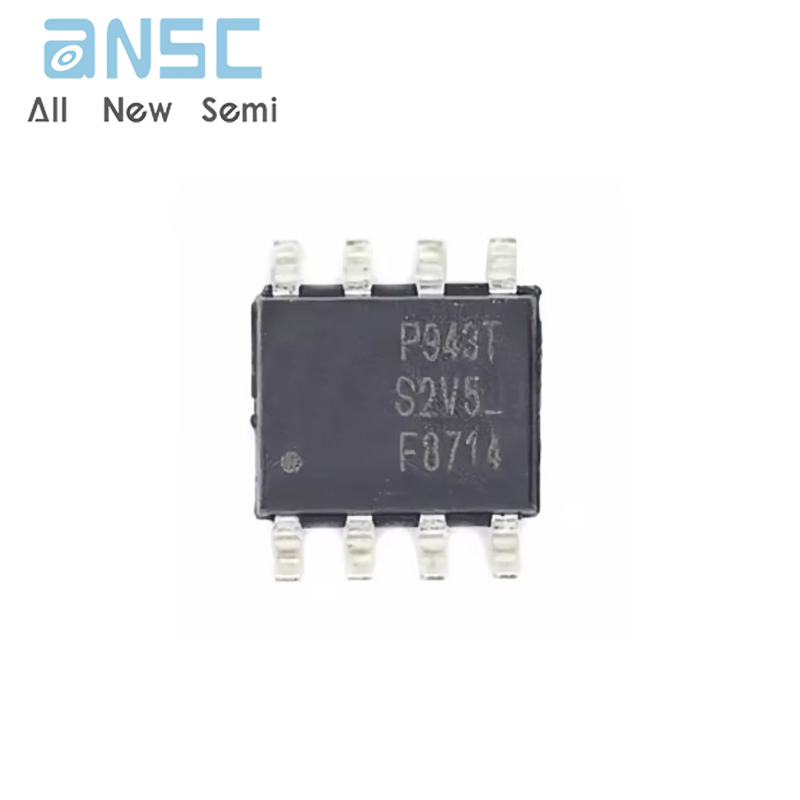

Product Photos
、
For more product information, please download the PDF
