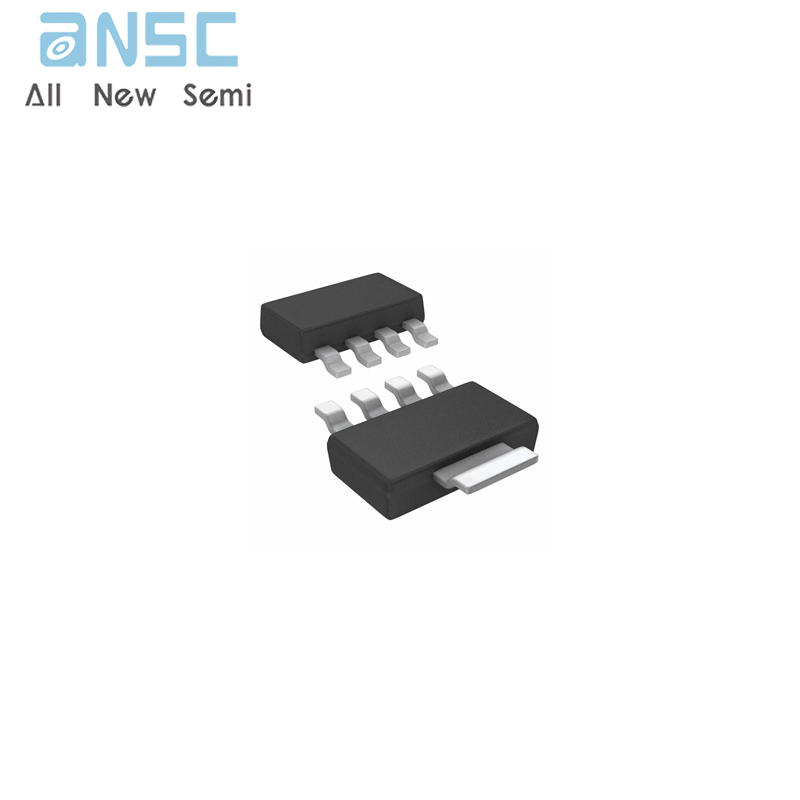

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce LP3875EMP-ADJ/NOPB 1.5A Fast Ultra Low Dropout Linear Regulators SOT223 spot stock
Manufacturer Product Number
LP3875EMP-ADJ/NOPB
Description
LP3875EMP-ADJ/NOPB 1.5A Fast Ultra Low Dropout Linear Regulators SOT223 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The LP3875-ADJ fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. The LP3875-ADJ is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3875-ADJ to operate under extremely low dropout conditions.
Product Features
• Ultra Low Dropout Voltage
• Low Ground Pin Current
• Load Regulation of 0.06%
• 10nA Quiescent Current in Shutdown Mode
• Specified Output Current of 1.5A DC
• Available in DDPAK/TO-263, TO-220 and SOT-223 Packages
• Minimum Output Capacitor Requirements
• Overtemperature/Overcurrent Protection
• −40°C to +125°C Junction Temperature Range
Product Applications
• Microprocessor Power Supplies
• GTL, GTL+, BTL, and SSTL Bus Terminators
• Power Supplies for DSPs
• SCSI Terminator
• Post Regulators
• High Efficiency Linear Regulators
• Battery Chargers
• Other Battery Powered Applications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LP3875EMP-ADJ/NOPB |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 6.4V |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | 73dB ~ 57dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-5, TO-261AB |
| Supplier Device Package | SOT-223-5 |
| Base Product Number | LP3875 |
Product Photos
For more product information, please download the PDF
