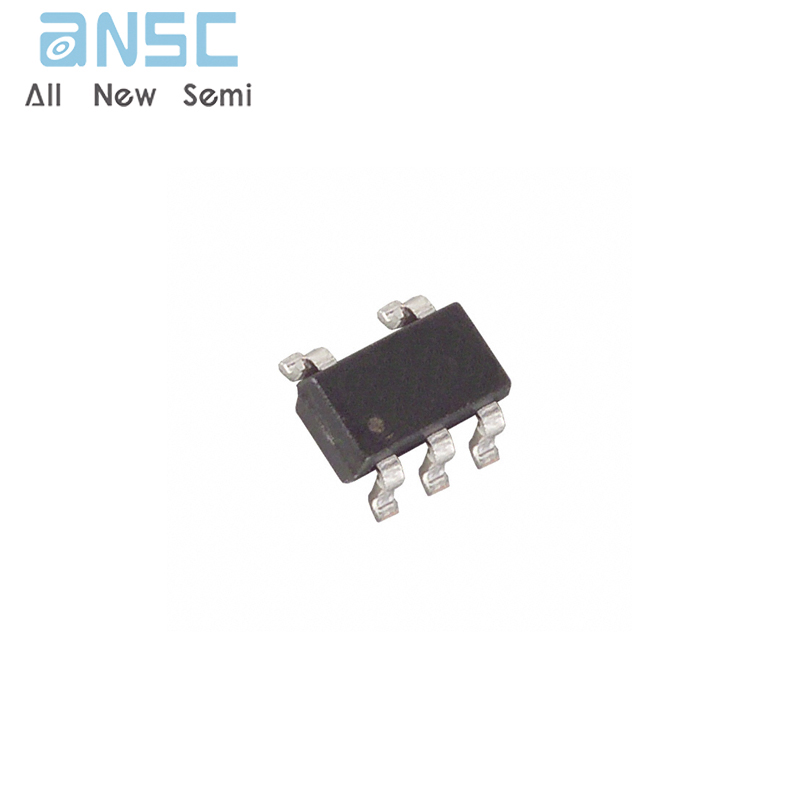

Hot-selling and scarce SN74AHCT1G14DBVR SINGLE SCHMITT-TRIGGER INVERTER GATE SOT23-5 spot stock
Manufacturer Product Number
SN74AHCT1G14DBVR
Description
SN74AHCT1G14DBVR SINGLE SCHMITT-TRIGGER INVERTER GATE SOT23-5 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SN74AHCT1G14 contains a single inverter gate. The device performs the Boolean function Y = A.
The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT– ) signals.
Product Features
• Operating Range 4.5-V to 5.5-V
• Max tpd of 8 ns at 5-V
• Low Power Consumption, 10-μA Max ICC
• ±8-mA Output Drive at 5-V
• Inputs Are TTL-Voltage Compatible
• Latch-Up Performance Exceeds 250 mA Per JESD 17
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74AHCT1G14DBVR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74AHCT |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Input Logic Level - Low | 0.5V ~ 0.6V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 8ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74AHCT1G14 |
