Hot-selling and scarce MM74HC151M 8-Channel Digital Multiplexer SOP16 spot stock

Product Descriptions

The MM74HC151 high speed Digital multiplexer utilizes advanced silicon-gate CMOS technology. Along with the high noise immunity and low power dissipation of standard CMOS integrated circuits, it possesses the ability to drive 10 LS-TTL loads. The MM74HC151 selects one of the 8 data sources, depending on the address presented on the A, B, and C inputs. It features both true (Y) and complement (W) outputs. The STROBE input must be at a low logic level to enable this multiplexer. A high logic level at the STROBE forces the W output HIGH and the Y output LOW.

​The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Product Features

■ Typical propagation delay data select to output Y: 26 ns

■ Wide operating supply voltage range: 2–6V

■ Low input current: 1 µA maximum

■ Low quiescent supply current: 80 µA maximum (74HC)

■ High output drive current: 4 mA minimum

Product Specification

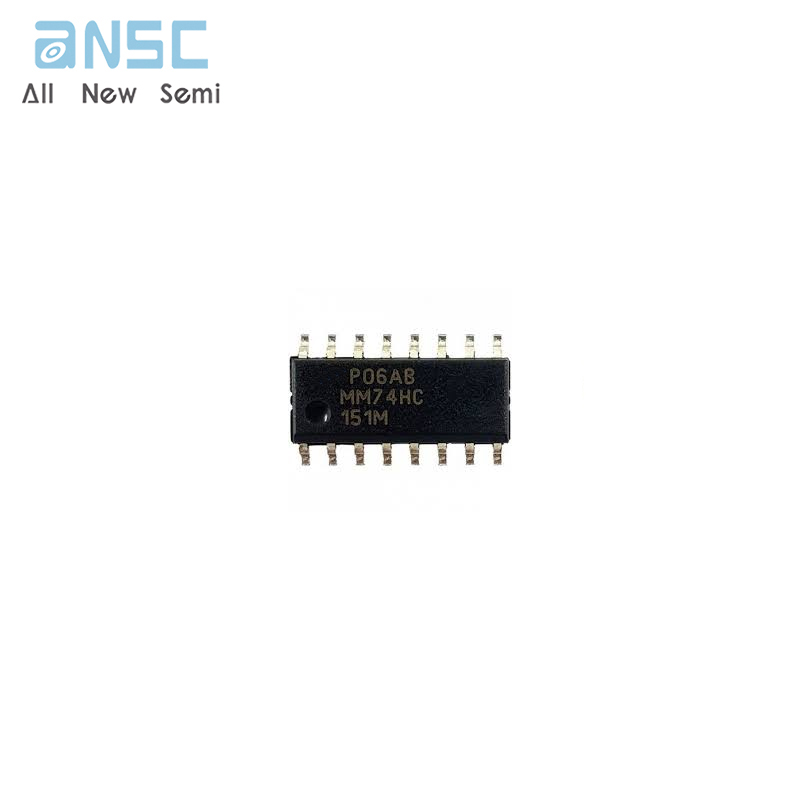

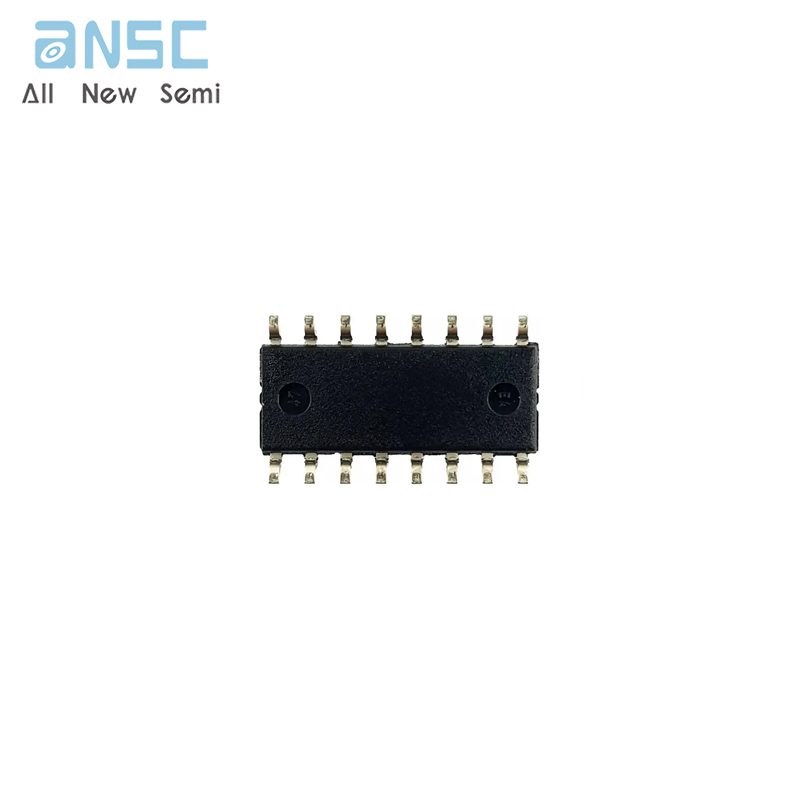

Product Photos

For more product information, please download the PDF
