Hot-selling and scarce 74ACT86 QUAD EXCLUSIVE OR GATE SOP14 spot stock

​Product Descriptions

The ACT86 is an advanced high-speed CMOS QUAD EXCLUSIVE OR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2 MOS technology. It is ideal for ow power applications mantaining high speed operation similar to equivalent Bipolar Schottky TTL. The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stabe output.

The device is designed to interface directly High Speed CMOS systems with TTL, NMOS and CMOS output voltage levels.

All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Product Features

■ HIGH SPEED: tPD = 5.0 ns (TYP.) at VCC =5V

■ LOW POWER DISSIPATION:

ICC = 4 µA (MAX.) at TA = 25 ℃

■ COMPATIBLE WITH TTL OUTPUTS

VIH = 2V (MIN), VIL = 0.8V (MAX)

■ 50Ω TRANSMISSION LINE DRIVINGCAPABILITY

■ SYMMETRICAL OUTPUT IMPEDANCE:

|IOH|=IOL =24 mA (MIN)

■ BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

■ OPERATING VOLTAGE RANGE:

VCC (OPR) = 4.5V to 5.5V

■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 86

■ IMPROVED LATCH-UP IMMUNITY

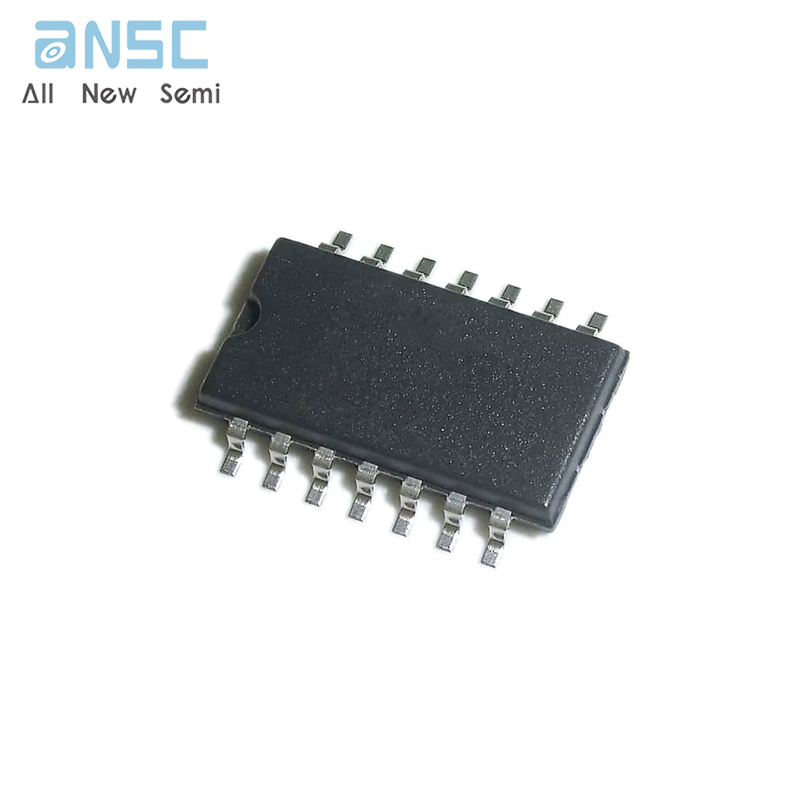

Product Photos

For more product information, please download the PDF
