Hot-selling and scarce PTH12020WAST 18-A 12-V INPUT NON-ISOLATED WIDE-OUTPUT ADJUST POWER MODULE spot stock
Manufacturer Product Number
PTH12020WAST
Description
PTH12020WAST 18-A, 12-V INPUT NON-ISOLATED WIDE-OUTPUT ADJUST POWER MODULE spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Up to 18 A Output Current
• 12-V Input Voltage
• Wide-Output Voltage Adjust (1.2 V to 5.5 V)/(0.8 V to 1.8 V)
• Efficiencies up to 95%
• 195 W/in3 Power Density
• On/Off Inhibit
• Output Voltage Sense
• Pre-Bias Startup
• Under-Voltage Lockout
• Auto-Track™ Sequencing
• Margin Up/Down Controls
• Output Over-Current Protection (Non-Latching, Auto-Reset)
• Over-Temperature Protection
• Operating Temperature:–40°C to 85°C
• Safety Agency Approvals: UL/cUL 60950,EN60950 VDE
• Point-of-Load Alliance (POLA™) Compatible
Product Applications
• Complex multi-voltage, multi-processor systems
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PTH12020WAST |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | PTH12020 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 1.2 ~ 5.5V |
| Current - Output (Max) | 18A |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 0.95 |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm) |
| Base Product Number | PTH12020 |

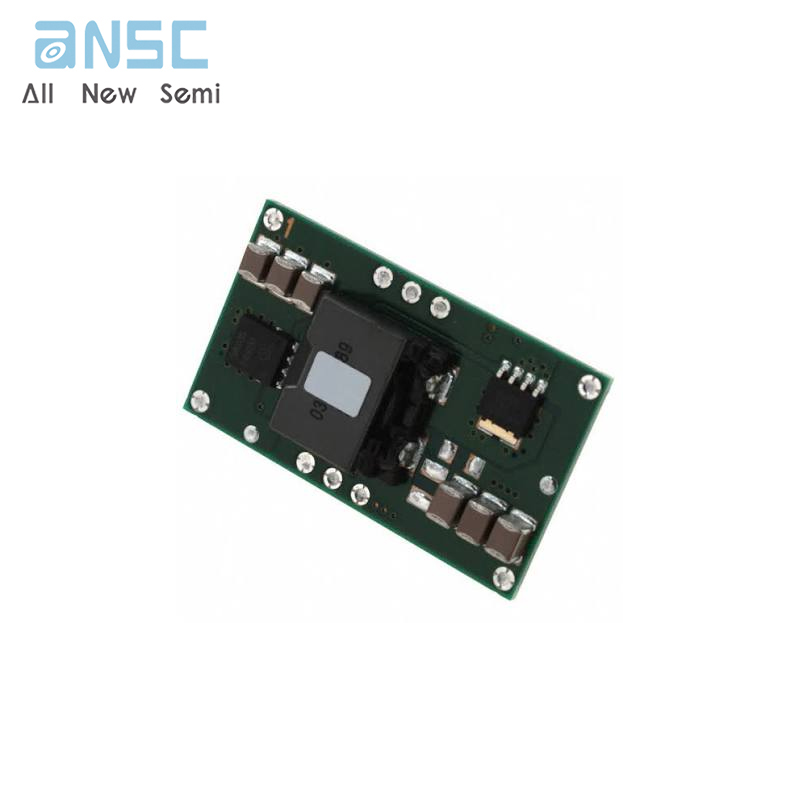

Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
