ADRF6602ACPZ-R7 1550 MHz to 2150 MHz Rx Mixer with Integrated Fractional-N PLL and VCO LFCSP40 spot stock

Product Descriptions

The ADRF6602 is a high dynamic range active mixer with integrated phase-locked loop (PLL) and voltage-controlled oscillator (VCO). The PLL/synthesizer uses a fractional-NPLL to generate an fLO input to the mixer. The reference input can be divided or multiplied and then applied to the PLL phase frequency detector (PFD).

The PLL can support input reference frequencies from 12 MHz to 160 MHz. The PFD output controls a charge pump whose output drives an off-chip loop filter.

The loop filter output is then applied to an integrated VCO. The VCO output at 2× fLO is applied to an LO divider, as well as to a programmable PLL divider. The programmable PLL divider is controlled by a Σ-Δ modulator (SDM). The modulus of the SDM can be programmed from 1 to 2047.

The active mixer converts the single-ended 50 Ω RF input to a 200 Ω differential IF output. The IF output can operate up to 500 MHz.

The ADRF6602 is fabricated using an advanced silicon-germanium BiCMOS process. It is available in a 40-lead, RoHS-compliant,6 mm × 6 mm LFCSP with an exposed paddle. Performance is specified over the −40°C to +85°C temperature range.

Product Features

Rx mixer with integrated fractional-N PLL

RF input frequency range: 1000 MHz to 3100 MHz

Internal LO frequency range: 1550 MHz to 2150 MHz

Input P1dB: 14.5 dBm

Input IP3: 30 dBm

IIP3 optimization via external pin

SSB noise figure

IP3SET pin open: 13.5 dB

IP3SET pin at 3.3 V: 14 dB

Voltage conversion gain: 6 dB

Matched 200 Ω IF output impedance

IF 3 dB bandwidth: 500 MHz

Programmable via 3-wire SPI interface

40-lead, 6 mm × 6 mm LFCSP

Product Applications

Cellular base stations

Product Specifications

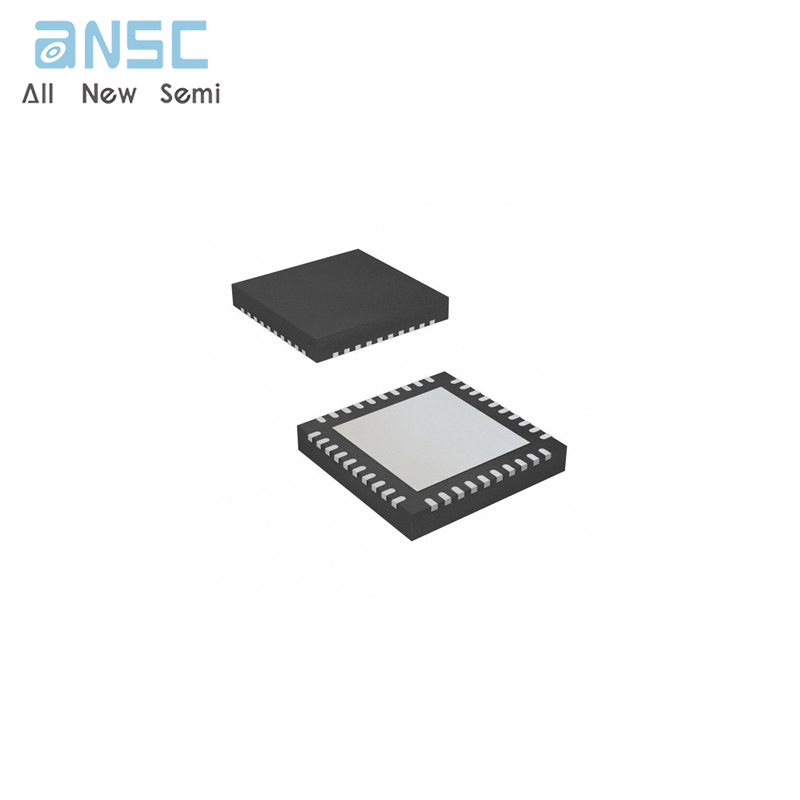

Product Photos

For more product information, please download the PDF
