Hot-selling and scarce ADUC7024BCPZ62 Precision Analog Microcontroller 12-bit Analog I/O QFN64 spot stock

Product Features

Analog I/O

Multichannel, 12-bit, 1 MSPS ADC

Up to 16 ADC channels1

Fully differential and single-ended modes

0 to VREF analog input range

12-bit voltage output DACs

Up to 4 DAC outputs available1

On-chip voltage reference

On-chip temperature sensor (±3°C)

Voltage comparator

Microcontroller

ARM7TDMI core, 16-bit/32-bit RISC architecture

JTAG port supports code download and debug

Clocking options

Trimmed on-chip oscillator (±3%)

External watch crystal

External clock source up to 44 MHz

41.78 MHz PLL with programmable divider

Memory

62 kB flash/EE memory, 8 kB SRAM

In-circuit download,JTAG-based debug

Software triggered in-circuit reprogrammability

On-chip peripherals

UART, 2 × I2C® and SPI® serial I/O

Up to 40-pin GPIO port1

4 × general-purpose timers

Wake-up and watchdog timers (WDT)

Power supply monitor

Three-phase, 16-bit PWM generator1

Programmable logic array (PLA)

External memory interface, up to 512 kB1

Power

Specified for 3 V operation

Active mode: 11 mA @ 5 MHz; 40 mA @ 41.78 MHz

Packages and temperature range

From 40-lead 6 mm × 6 mm LFCSP to 80-lead LQFP1

Fully specified for –40°C to +125°C operation

Tools

Low-cost QuickStart™ development system

Full third-party support

Product Applications

Industrial control and automation systems

Smart sensors, precision instrumentation

Base station systems, optical networking

Product Specifications

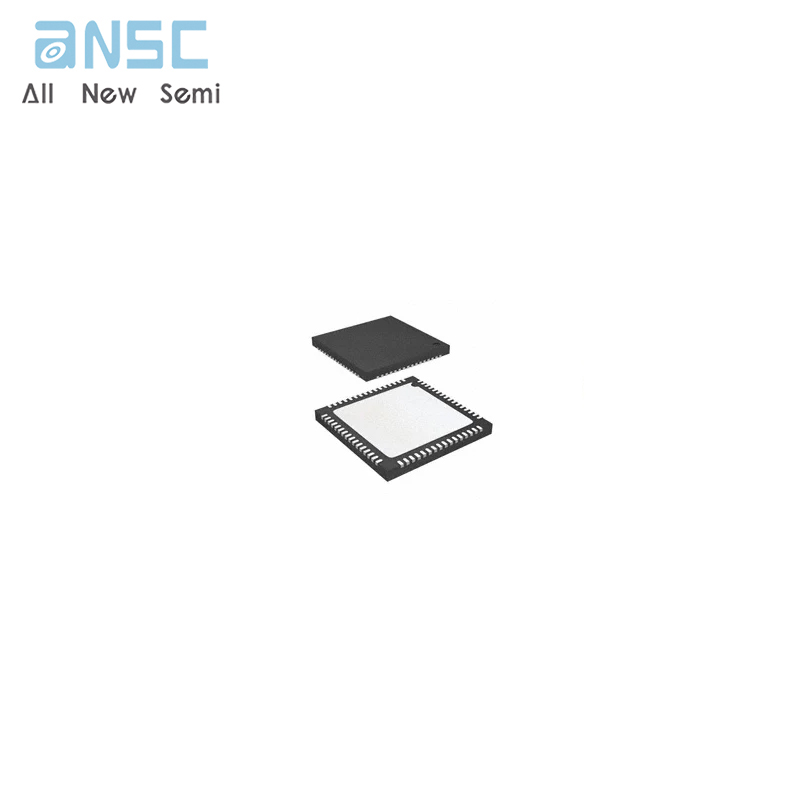

Product Photos

​
