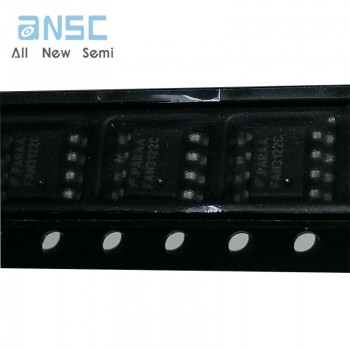

Hot selling One stop electronic component supply FAN3122CMX Single 9A High-Speed, Low-Side Gate Driver IC Non-Inverting 8-SOIC

Product Descriptions

The FAN3121 and FAN3122 MOSFET drivers are designed to drive N-channel enhancement MOSFETs in low-side switching applications by providing high peak current pulses. The drivers are available with either TTL input thresholds (FAN312xT) or VDD-proportional CMOS input thresholds (FAN312xC). Internal circuitry provides an under-voltage lockout function by holding the output low until the supply voltage is within the operating range. FAN312x drivers incorporate the MillerDrive™ architecture

for the final output stage. This bipolar / MOSFET combination provides the highest peak current during the Miller plateau stage of the MOSFET turn-on / turn-off process.

The FAN3121 and FAN3122 drivers implement an enable function on pin 3 (EN), previously unused in the industry-standard pin-out. The pin is internally pulled up to VDD for active HIGH logic and can be left open for standard operation.

The commercial FAN3121/22 is available in a 3x3 mm 8-lead thermally-enhanced MLP package or an 8-lead SOIC package. The AEC-Q100 automotive-qualified versions are available in the 8-lead SOIC package.

Product Features

• Industry-Standard Pin-out with Enable Input

• 4.5-V to 18-V Operating Range

• 11.4 A Peak Sink at VDD = 12 V

• 9.7-A Sink / 7.1-A Source at VOUT = 6 V

• Inverting Configuration (FAN3121) and Non-Inverting Configuration (FAN3122)

• Internal Resistors Turn Driver Off If No Inputs

• 23-ns / 19-ns Typical Rise/Fall Times (10 nF Load)

• 18 ns to 23 ns Typical Propagation Delay Time

• Choice of TTL or CMOS Input Thresholds

• MillerDrive™ Technology

• Available in Thermally Enhanced 3x3 mm 8-Lead MLP or 8-Lead SOIC Package (Pb-Free Finish)

• Rated from –40°C to +125°C

• Automotive Qualified to AEC-Q100 (F085 Versions)

Product Applications

• Synchronous Rectifier Circuits

• High-Efficiency MOSFET Switching

• Switch-Mode Power Supplies

• DC-to-DC Converters

• Motor Control

• Automotive-Qualified Systems (F085 Versions)
