Hot sale Original TPS54325PWPR IC REG BUCK ADJ 3A 14HTSSOP Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output
Manufacturer Product Number
TPS54325PWPR
Description
TPS54325PWPR IC REG BUCK ADJ 3A 14HTSSOP Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 3A 14-PowerTSSOP (0.173", 4.40mm Width)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The TPS54325PWPR is a surface-mount, pulse-width modulation (PWM) controlled, step-down switching regulator. This D-CAP2? series regulator is designed to provide a highly efficient and compact power supply solution for a wide range of applications. Features: High Efficiency: The TPS54325PWPR operates at a high frequency of 700 kHz, ensuring high efficiency and low heat dissipation. Adjustable Output: The output voltage is adjustable between 0.76V and 5.5V, making it suitable for various applications. High Current Capability: The regulator can deliver up to 3A of output current, making it suitable for high-power applications. Low Quiescent Current: The regulator has a low quiescent current of 850μA, reducing power consumption when the output is not in use. Synchronous Rectification: The regulator features synchronous rectification, which improves efficiency and reduces heat dissipation. Applications: Primary Applications: Power supplies for industrial control systems Power supplies for automotive systems Power supplies for medical devices Secondary Applications: Power supplies for consumer electronics Power supplies for telecommunications equipment Power supplies for aerospace and defense systems |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - TPS54325PWPR |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
|
Mfr |
/ |
|
Series |
D-CAP2™ |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Function |
Step-Down |
|
Output Configuration |
Positive |
|
Topology |
Buck |
|
Output Type |
Adjustable |
|
Number of Outputs |
1 |
|
Voltage - Input (Min) |
2V |
|
Voltage - Input (Max) |
18V |
|
Voltage - Output (Min/Fixed) |
0.76V |
|
Voltage - Output (Max) |
5.5V |
|
Current - Output |
3A |
|
Frequency - Switching |
700kHz |
|
Synchronous Rectifier |
Yes |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
14-PowerTSSOP (0.173", 4.40mm Width) |
|
Supplier Device Package |
14-HTSSOP |
|
Base Product Number |
TPS54325 |

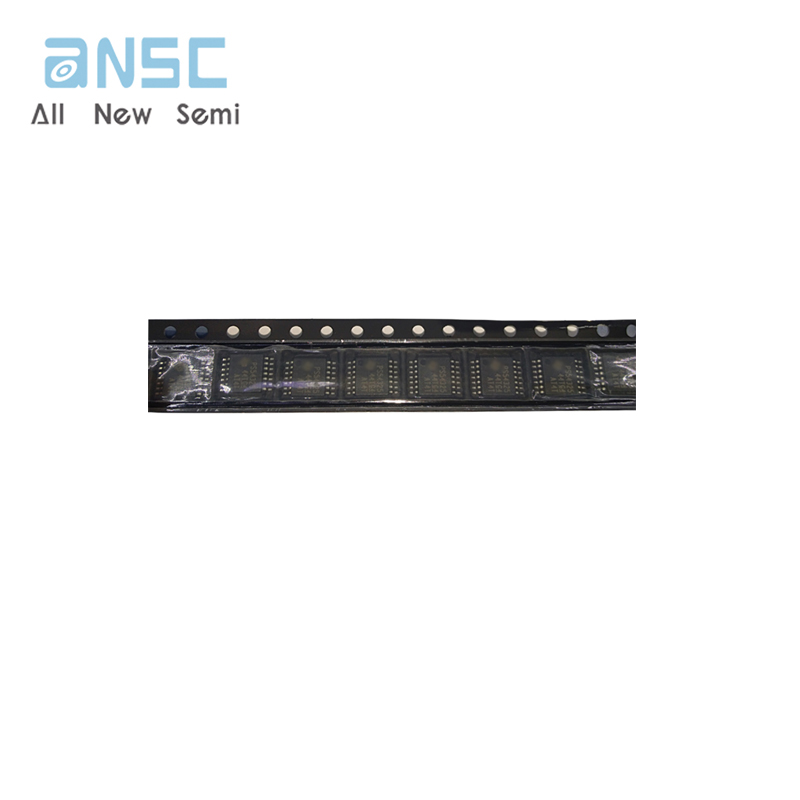

Actual image of the product

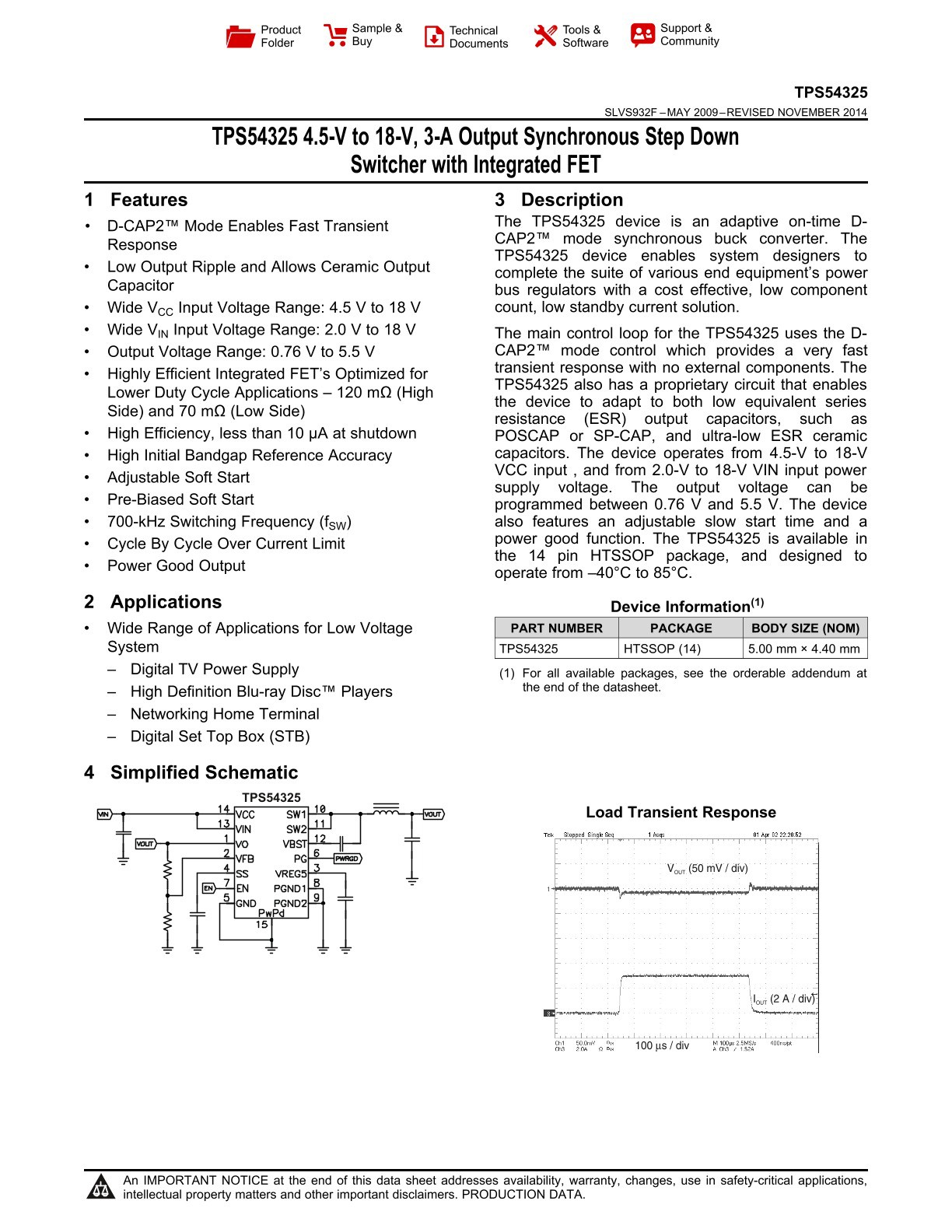

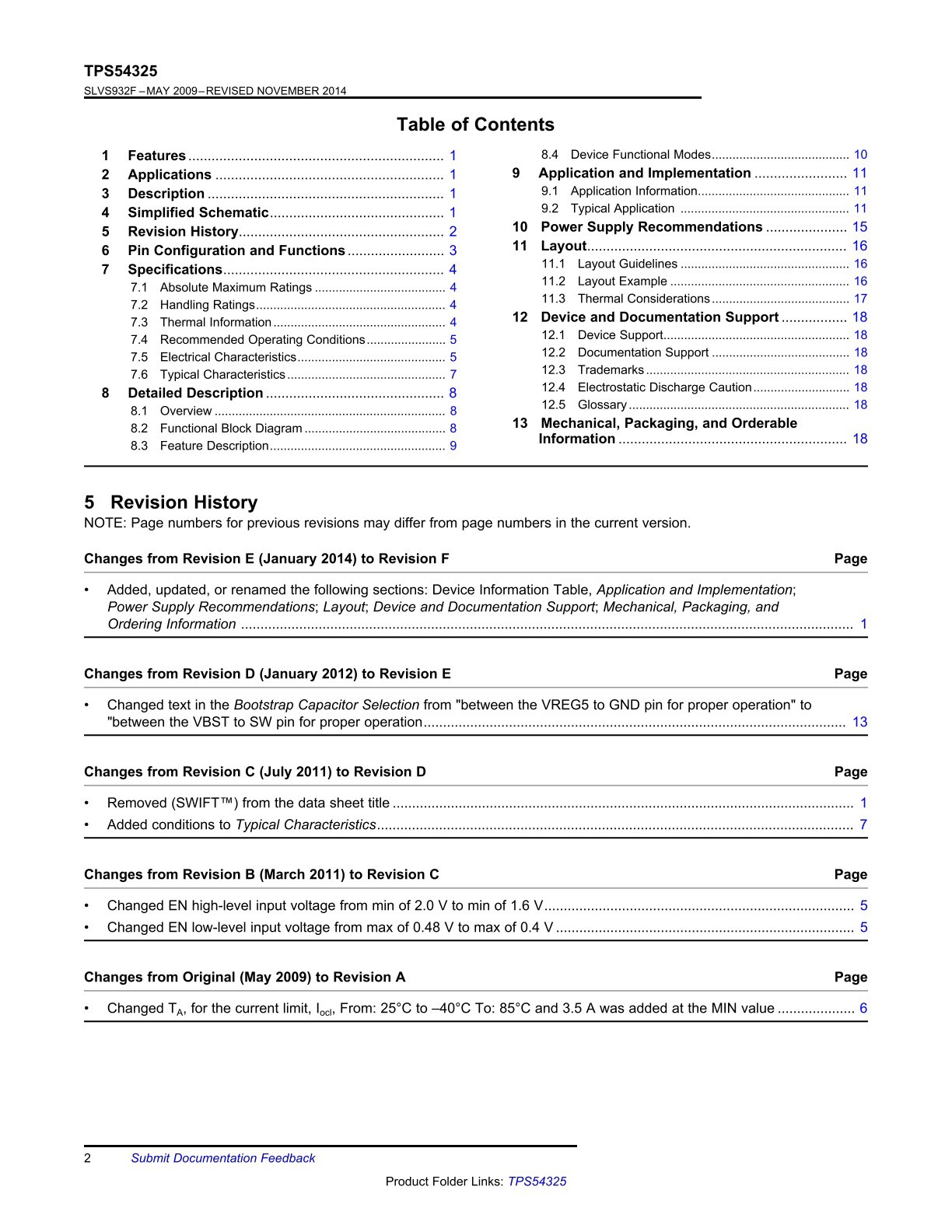

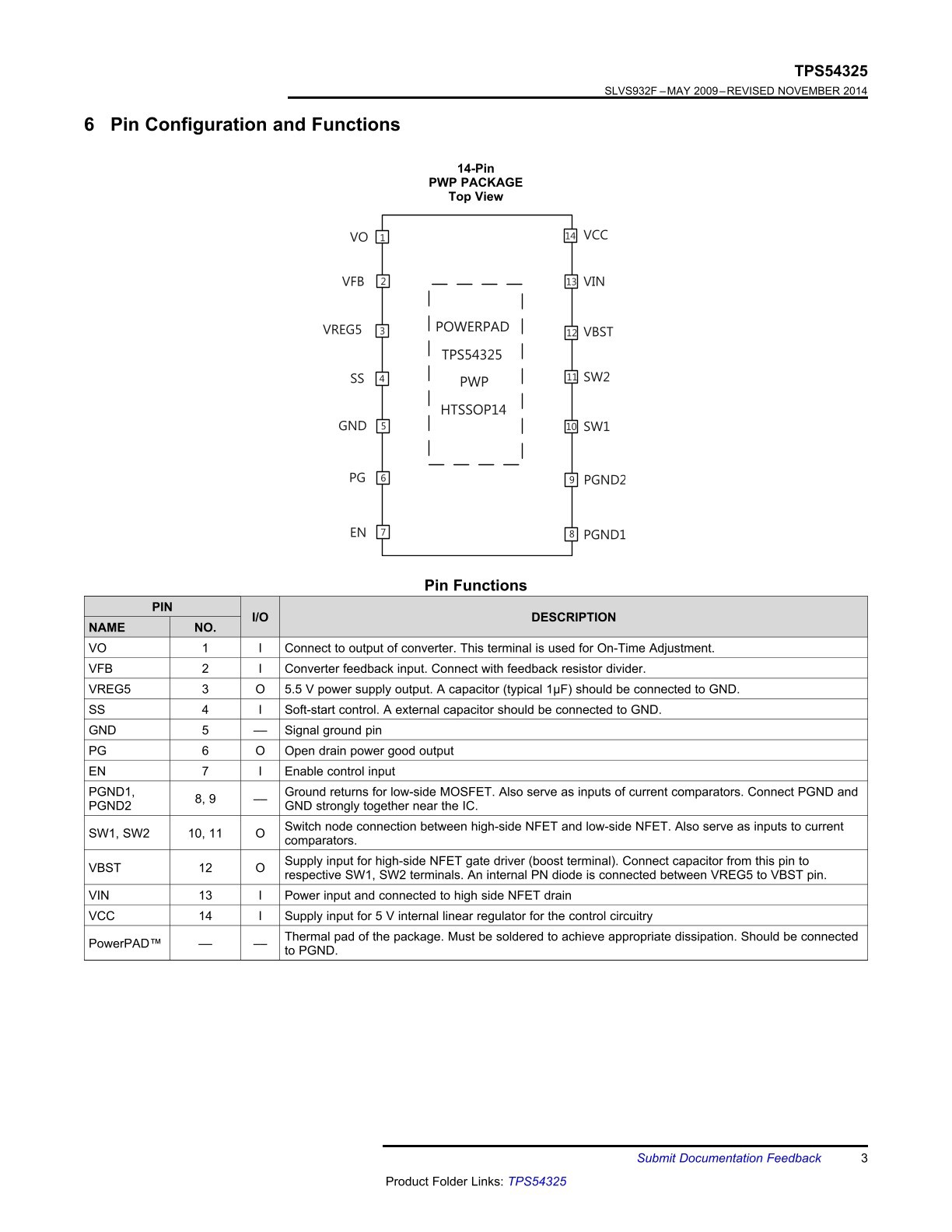

Product datasheet
For more information, please download
