Hot sale Original LM1117MP-3.3 IC 3.3V FIXED POSITIVE LDO REGULATOR 1.3V DROPOUT PDSO4 SOT-223 3 PIN
Manufacturer Product Number
LM1117MP-3.3
Description
LM1117MP-3.3 IC 3.3V FIXED POSITIVE LDO REGULATOR 1.3V DROPOUT PDSO4 SOT-223 3 PIN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The LM1117 series of positive adjustable and fixed regulators are designed to provide 1A with high efficiency. All internal circuitry is designed to operate down to 1.4V input to output differential. The product is specifically designed to provide well-regulated supply for low-voltage IC application such as high-speed bus termination and low current 3.3V logic supply, and other applications such as VGA cards. Features ● Adjustable or Fixed Output ● Output Current of 1A ● Low Dropout, 1.4V max at 1A Output Current ● Good Noise Rejection ● Output Current Limiting ● Built-in Thermal Shutdown ● Fast Transient Response ● Can operate using MLCCs in the capacitance range of 2μF to 10μF Applications ● High Efficiency Linear Regulators ● Post Regulators for Switching Supplies ● Adjustable Power Supply |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LM1117MP-3.3 |
| Part Package | SOT-223 |
| Package Description | Sot-223, 4 Pin |
| Pin Count | 3 |
| Adjustability | Fixed |
| Dropout Voltage1-Max | 1.3 V |
| Dropout Voltage1-Nom | 1.2 V |
| Input Voltage Absolute-Max | 20 V |
| Input Voltage-Max | 15 V |
| Input Voltage-Min | 4.75 V |
| Length | 6.5 Mm |
| Line Regulation-Max | 0.01% |
| Load Regulation-Max | 0.01% |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 4 |
| Operating Temperature TJ-Max | 125 °C |
| Operating Temperature TJ-Min | |
| Output Current1-Max | 0.8 A |
| Output Voltage1-Max | 3.365 V |
| Output Voltage1-Min | 3.235 V |
| Output Voltage1-Nom | 3.3 V |
| Package Body Material | Plastic/Epoxy |
| Package Code | SOP |
| Package Equivalence Code | SOT-223 |
| Package Shape | Rectangular |
| Package Style | Small Outline |
| Packing Method | Tr |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Regulator Type | Fixed Positive Single Output Ldo Regulator |
| Seated Height-Max | 1.8 Mm |
| Surface Mount | Yes |
| Technology | Bipolar |
| Terminal Finish | Tin Lead |
| Terminal Form | Gull Wing |
| Terminal Pitch | 2.3 Mm |
| Terminal Position | Dual |
| Voltage Tolerance-Max | 2% |
| Width | 3.56 Mm |

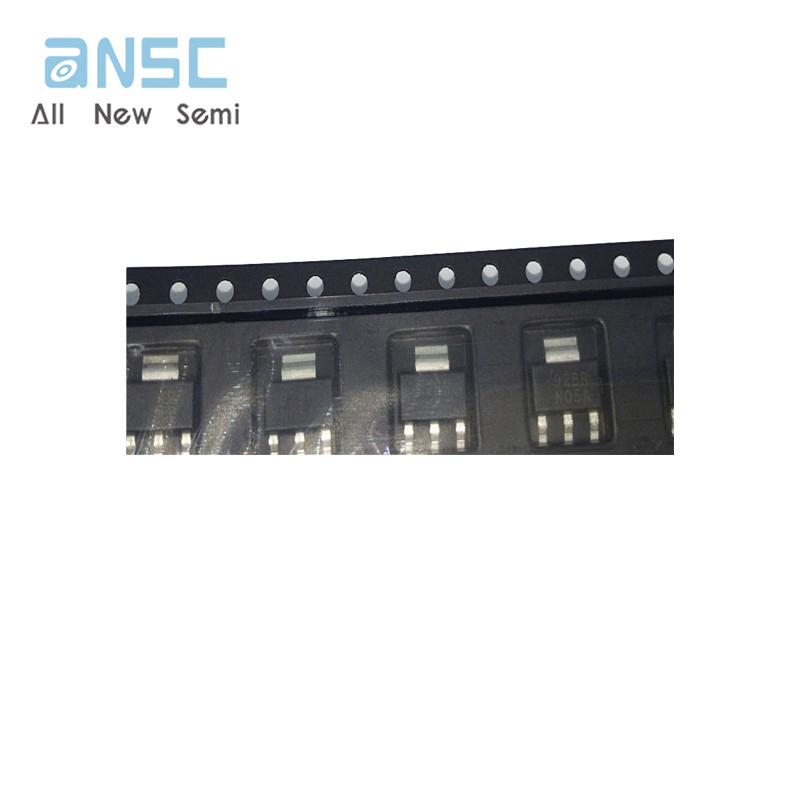

Actual image of the product
