Hot sale Original TOP243R-TL IC OFFLINE SWITCH FLYBACK TO263 Converter Offline Flyback Topology
Manufacturer Product Number
TOP243R-TL
Description
TOP243R-TL IC OFFLINE SWITCH FLYBACK TO263 Converter Offline Flyback Topology 66kHz ~ 132kHz TO-263-7C
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

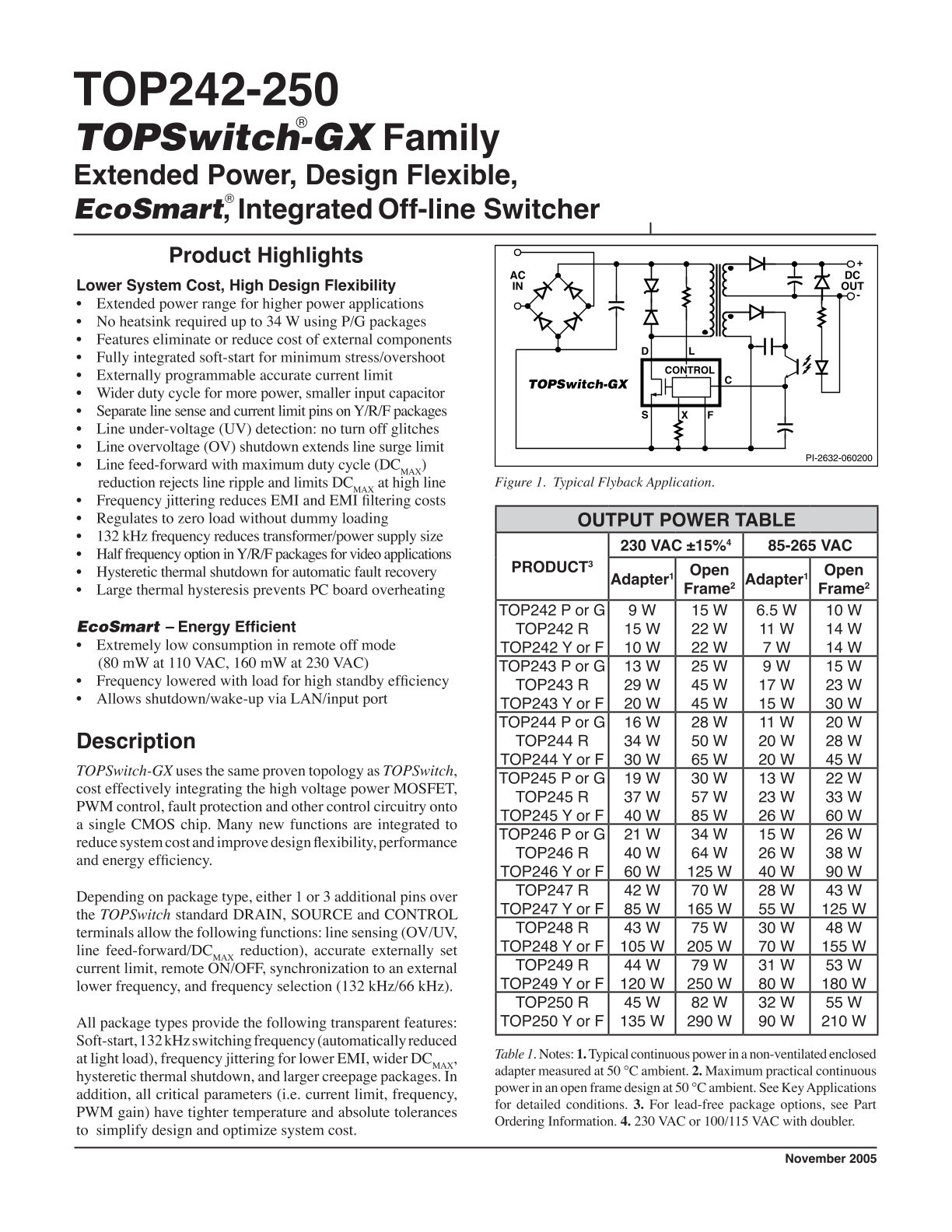

| Description TOPSwitch-GXuses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry on to a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency. Product Highlights Lower System Cost, High Design Flexibility • Extended power range for higher power applications • No heatsink required up to 34 W using P package • Features eliminate or reduce cost of external components • Fully integrated soft-start for minimum stress/overshoot • Externally programmable accurate current limit • Wider duty cycle for more power, smaller input capacitor • Separate line sense and current limit pins on Y/R/F packages • Line under-voltage (UV) detection: no turn off glitches • Line overvoltage (OV) shutdown extends line surge limit • Line feed-forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line • Frequency jittering reduces EMI and EMI filtering costs • Regulates to zero load without dummy loading • 132 kHz frequency reduces transformer/power supply size • Half frequency option in Y/R/F packages for video applications • Hysteretic thermal shutdown for automatic fault recovery • Large thermal hysteresis prevents PC board overheating |
Product Description
| Type | Description |
| ANSC PART# | ANSC - TOP243R-TL |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| AC DC Converters, Offline Switchers | |
| Manufacturer | Original |
| Series | TOPSwitch®-GX |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Not For New Designs |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 66.50% |
| Frequency - Switching | 66kHz ~ 132kHz |
| Power (Watts) | 45 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Supplier Device Package | TO-263-7C |
| Mounting Type | Surface Mount |
| Base Product Number | TOP243 |

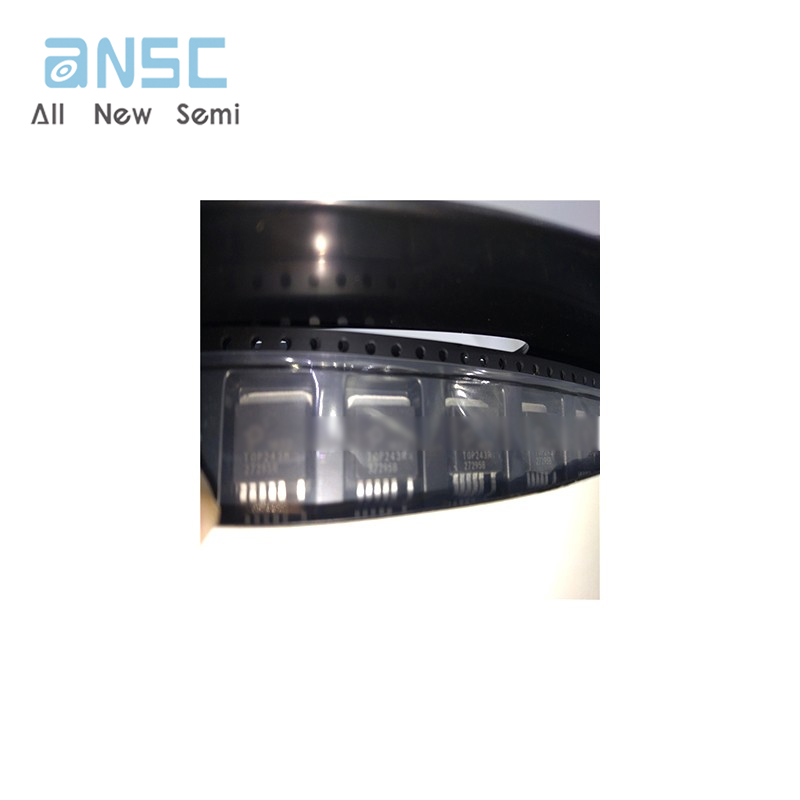

Actual image of the product
