Hot sale Original TLV1117-33CDCYR IC REG LIN 3.3V 800MA SOT223-4 Linear Voltage Regulator IC Positive Fixed 1 Output
Manufacturer
Manufacturer Product Number
TLV1117-33CDCYR
Description
TLV1117-33CDCYR IC REG LIN 3.3V 800MA SOT223-4 Linear Voltage Regulator IC Positive Fixed 1 Output 800mA
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION: The CBTLV16210 operates as a single 20-bit bus switch or as a dual 10-bit bus switch,which provides high-speed switching. This device has very low ON resistance, resulting in under 250ps propagation delay through the switch. When Output Enable (OE) is low, the corresponding 10-bit bus switch is on and port A is connected to Port B. When OE is high, the switch is off and a high impedance exists between Port A and Port B. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor. FEATURES: • 5Ω A/B bi-directional switch • Isolation Under Power-Off Conditions • Over-voltage tolerant • Latch-up performance exceeds 100mA • VCC = 2.3V - 3.6V, normal range • ESD >2000V per MIL-STD-883, Method 3015; >200V using machine model (C = 200pF, R = 0) • Available in TSSOP package APPLICATIONS: • 3.3V High Speed Bus Switching and Bus Isolation |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC -TLV1117-33CDCYR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | TLV1117 |

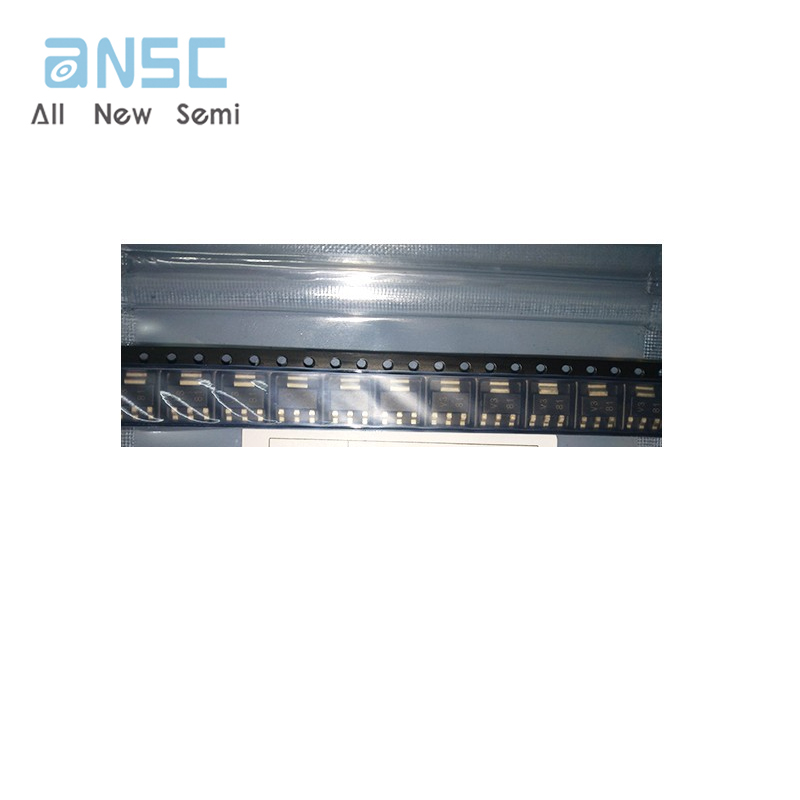

Actual image of the product

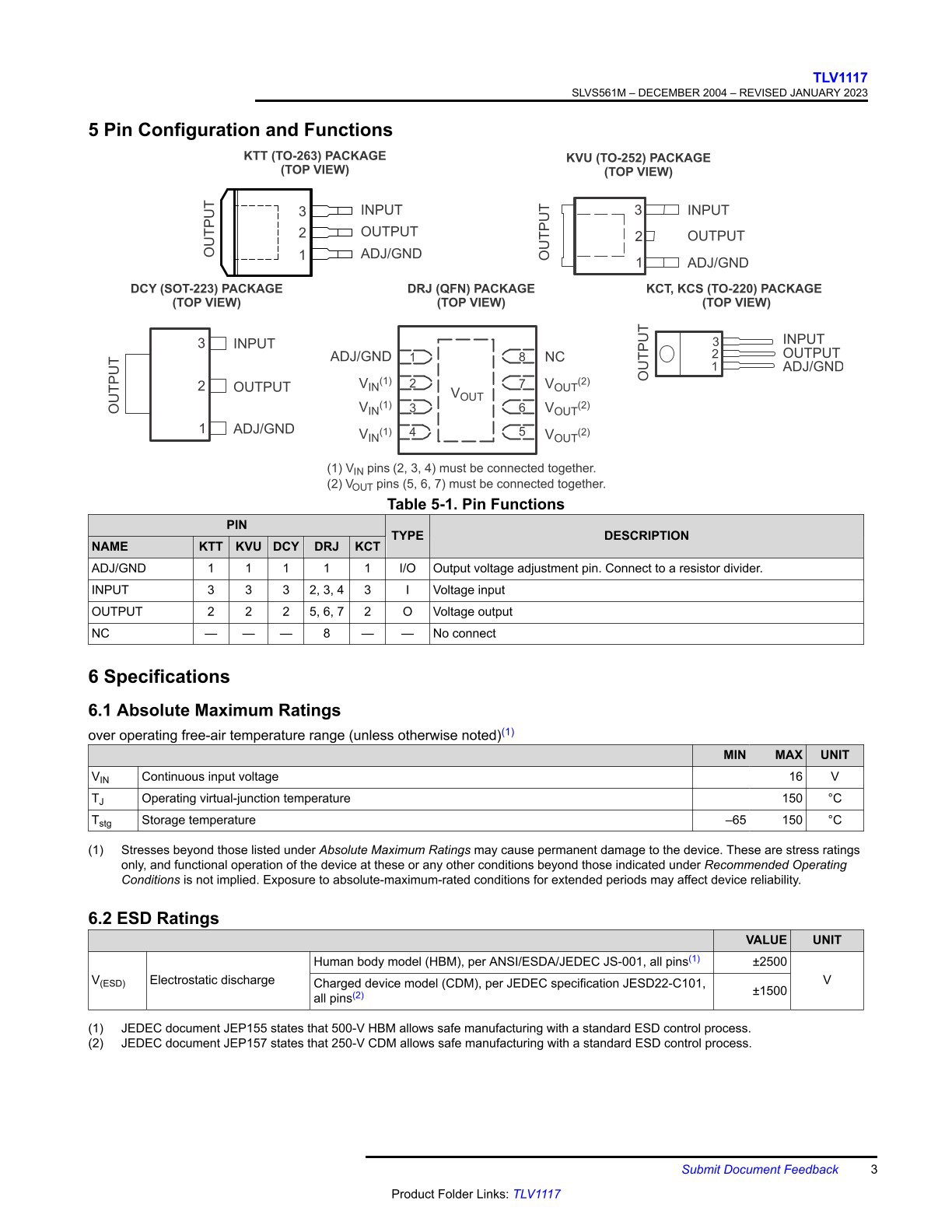

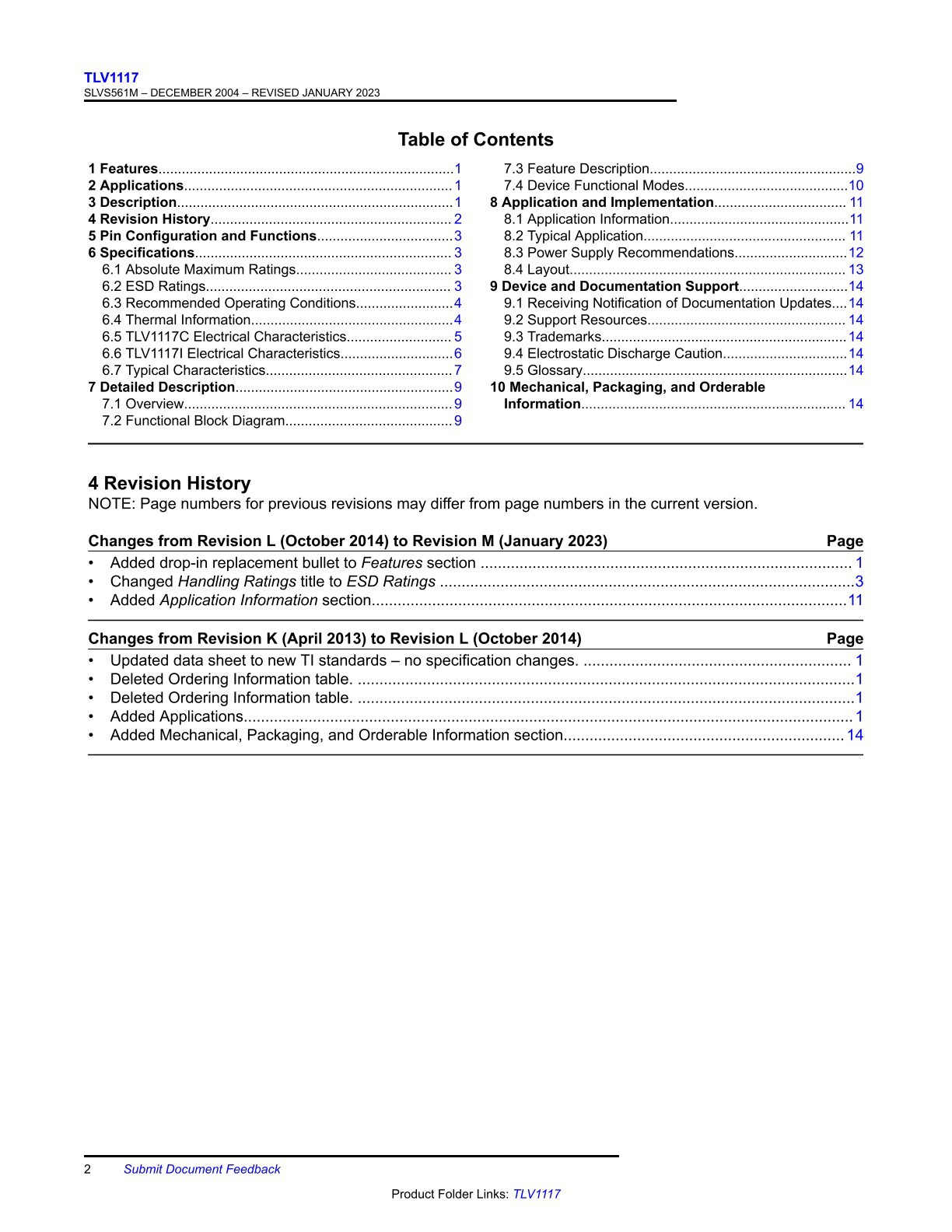

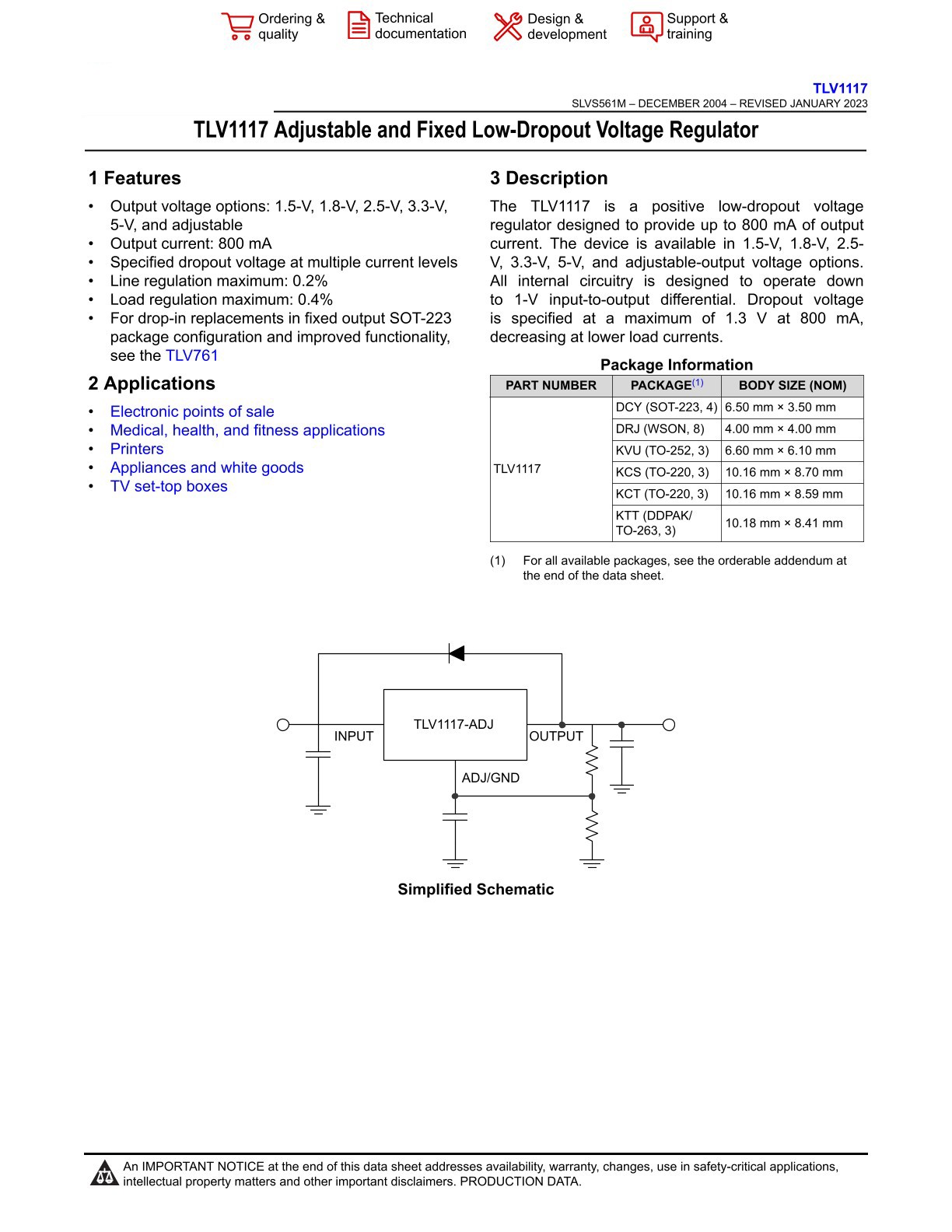

Product datasheet
For more information, please download
