Original TPS62172QDSGRQ1DC Voltage Regulator Tape & Reel (TR) 8-Pin 8 Terminals TPS62172 2.25MHz Switching Regulator IC Chip
TPS62172QDSGRQ1 PMIC IC REG BUCK 3.3V 500MA 8WSON Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA 8-WFDFN Exposed Pad
Product Details
PMIC - Voltage Regulators - DC DC Switching Regulators /
TPS62172QDSGRQ1 Description:
8 Terminals 8-Pin TPS62172 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 2.25MHz Tape & Reel (TR) 8-WFDFN Exposed Pad
Product Overview
Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. A voltage regulator consists of 8 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. There is a 8-WFDFN Exposed Pad package available for this voltage regulator, as DC DC switching regulator is space-saving. 1 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Fixed output. Switching regulators like this one can be mounted on the Surface Mount mounting system. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~125°C TJ. In this voltage regulator 12v, the switching frequency is 2.25MHz. There is a adjusting voltage regulator's voltage output (Min/Fixed) of 3.3V. Voltage regulator's input voltage can reach 17V. For operation, switching regulator requires a nominal input voltage of 12V. TPS62172 is a family of voltage regulators that belong to the DC/DC industry. Voltage regulator is capable of giving voltage at 6V volts. In order to operate voltage regulator, 8 pins are required. This voltage regulator 12v should be configured with an output voltage that is at least 900mV. For switching regulator maximum operation, dc to dc voltage regulator delivers 500mA A. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 6V. A switching DC-DC regulator, it is a member of the Automotive, AEC-Q100, DCS-Control™ family of electronic voltage regulator 12vs. With a supply voltage of 17V, this harley voltage regulator works. Without external influences, harley voltage regulator consumes 17μAA of quiescent current. The dc to dc voltage regulator's minimum supply voltage of 3V volts ensures reliable performance.
Product Features
1 outputs
8 pins
Operating supply voltage of 17V
Product Applications
There are a lot of Texas Instruments
TPS62172QDSGRQ1 Voltage Regulators applications.
-
Network technology
-
Automation technology
-
CMM
-
Various precision measuring instruments
-
Various precision measuring detectors
-
Flaw detection equipment
-
Balance equipment
-
Industrial robots
-
Industrial controllers
-
Die casting equipment
Product Description
ANSC PART# |
ANSC- TPS62172QDSGRQ1 |
Part# |
TPS62172QDSGRQ1 |
Type: |
Integrated Circuits |
Manufactor |
Original |
DC |
new |

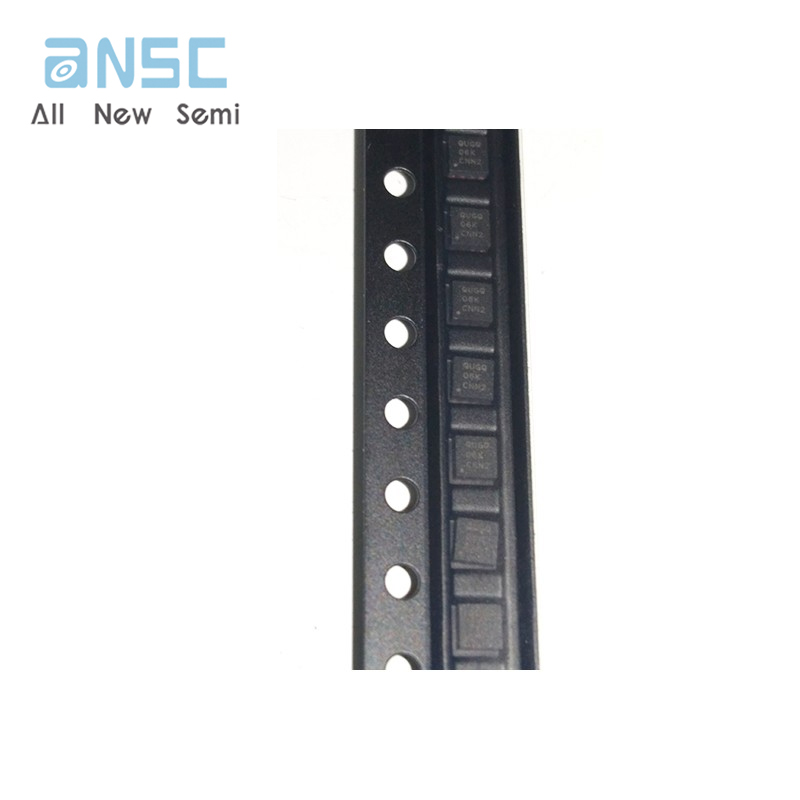

Actual image of the product
TYPE |
DESCRIPTION |
---|---|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
Mfr |
Texas Instruments |
Series |
DCS-Control™ |
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
Part Status |
Active |
Function |
Step-Down |
Output Configuration |
Positive |
Topology |
Buck |
Output Type |
Fixed |
Number of Outputs |
1 |
Voltage - Input (Min) |
3V |
Voltage - Input (Max) |
17V |
Voltage - Output (Min/Fixed) |
3.3V |
Voltage - Output (Max) |
- |
Current - Output |
500mA |
Frequency - Switching |
2.25MHz |
Synchronous Rectifier |
Yes |
Operating Temperature |
-40°C ~ 125°C (TJ) |
Grade |
Automotive |
Qualification |
AEC-Q100 |
Mounting Type |
Surface Mount |
Package / Case |
8-WFDFN Exposed Pad |
Supplier Device Package |
8-WSON (2x2) |
Base Product Number |
TPS62172 |

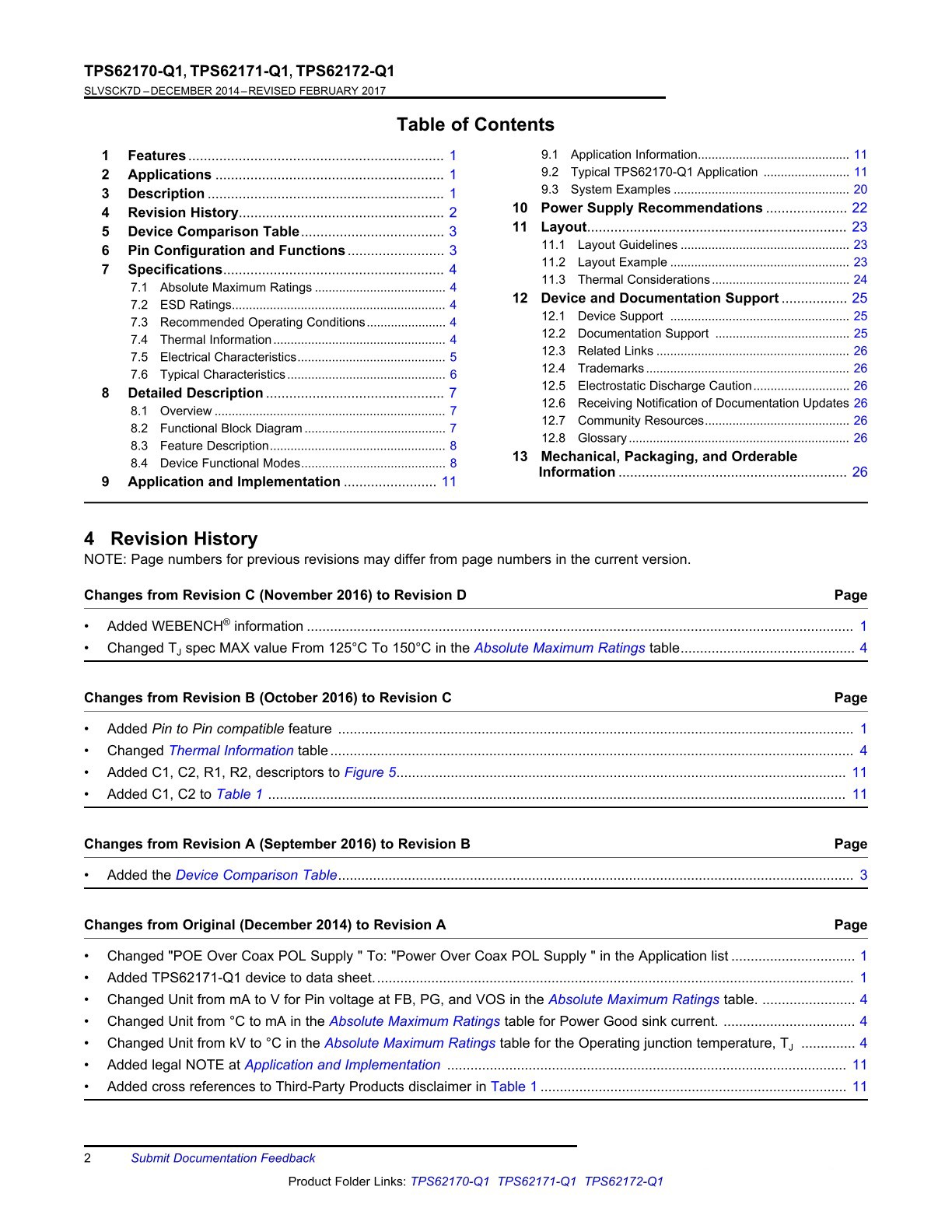

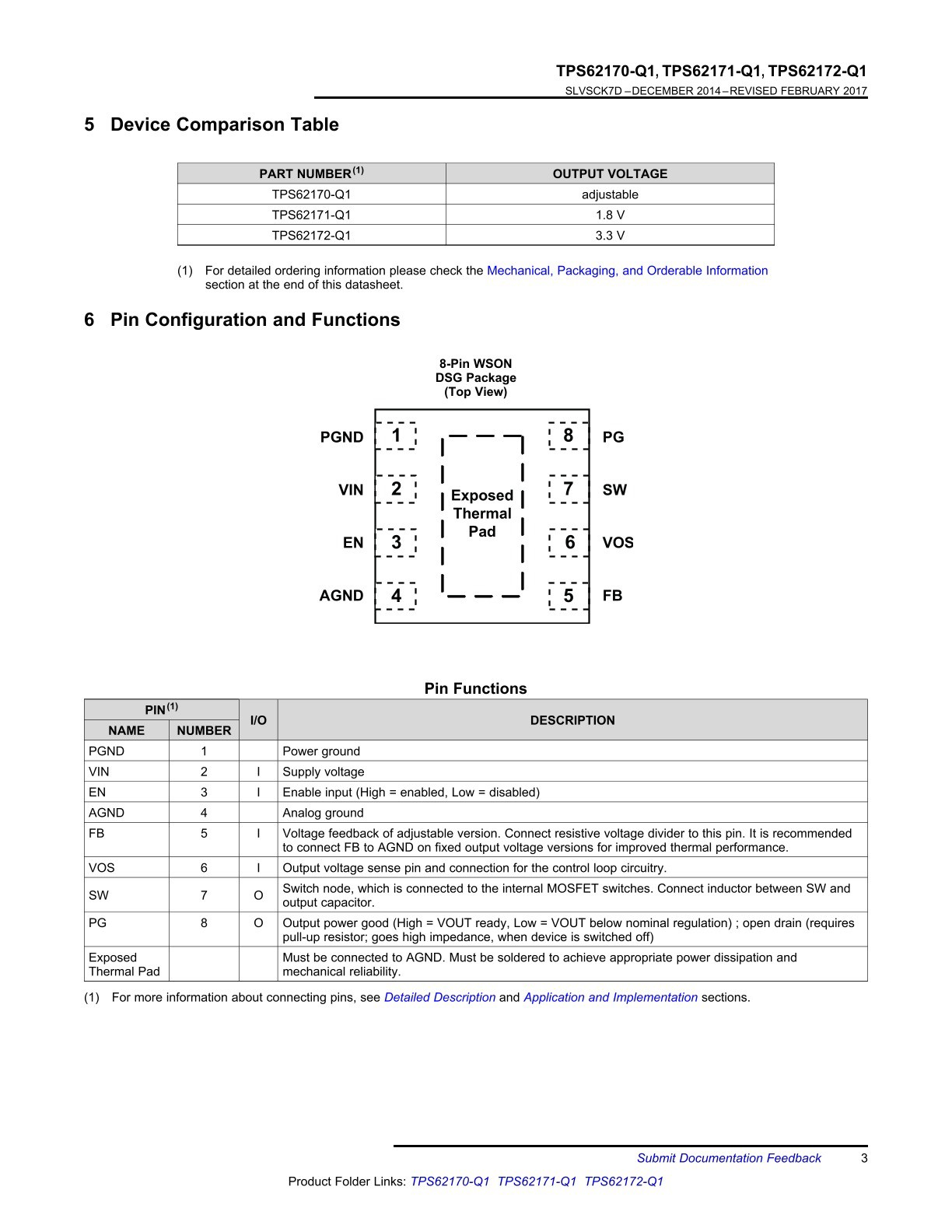

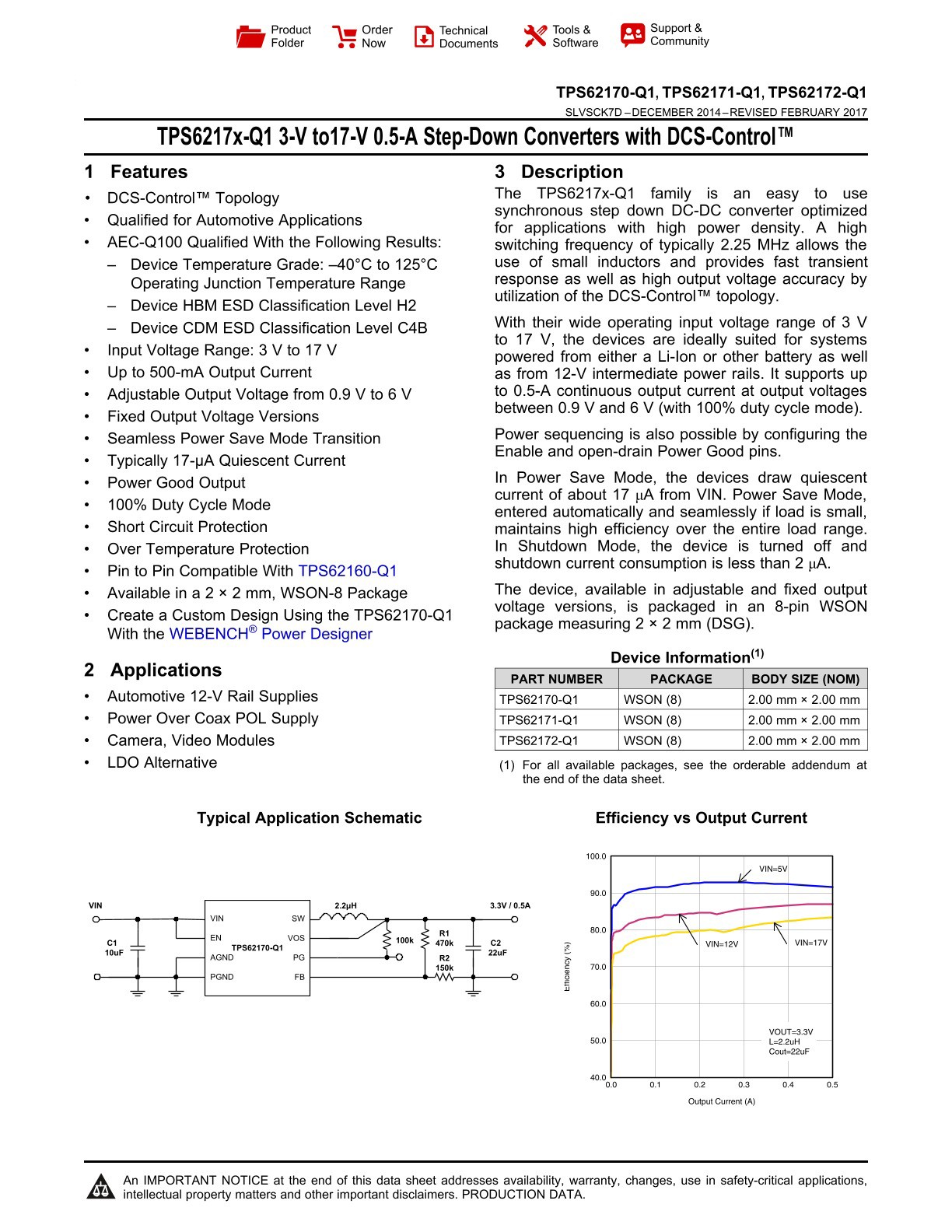

Product datasheet
For more information, please download
