Hot sale Original HT7550-1 Power Circuits Linear Regulator ICs Fixed Positive LDO Regulator

Manufacturer Product Number
HT7550-1
Description

HT7550-1 Power Circuits Linear Regulator ICs Fixed Positive LDO Regulator

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details


General Description
The HT75xx-1 series is a set of three-terminal high current low voltage regulator implemented in CMOS technology. They can deliver 100mA output current and allow an input voltage as high as 24V. They are available with several fixed output voltages ranging from 2.1V to 12.0V. CMOS technology ensures low voltage drop and low quiescent current.

Features
• Low power consumption
• Low voltage drop
• Low temperature coefficient
• High input voltage (up to 24V)
• High output current : 100mA
• Output voltage accuracy: tolerance ±3%
• TO92, SOT89 and SOT23-5 package

Applications
• Battery-powered equipment
• Communication equipment
• Audio/Video equipment

Product Description

Type# Description
ANSC PART# ANSC- HT7550-1
Adjustability Fixed
Dropout Voltage1-Max 0.055 V
Dropout Voltage1-Nom 0.025 V
Input Voltage Absolute-Max 33 V
Input Voltage-Max 30 V
Input Voltage-Min 6 V
​Length 2.9 Mm
Line Regulation-Max 0.24%
Load Regulation-Max 0.06%
Number of Functions 1
Number of Outputs 1
Number of Terminals 5
Operating Temperature TJ-Max 150 °C
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current1-Max 0.1 A
Output Voltage1-Max 5.15 V
Output Voltage1-Min 4.85 V
Output Voltage1-Nom 5 V
Package Body Material Plastic/Epoxy
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape Rectangular
Package Style Small Outline, Low Profile, Shrink Pitch
Regulator Type Fixed Positive Single Output Ldo Regulator
Seated Height-Max 1.45 Mm
Surface Mount Yes
Technology Cmos
Terminal Form Gull Wing
Terminal Pitch 0.95 Mm
Terminal Position Dual
Voltage Tolerance-Max 3%
Width 1.6 Mm

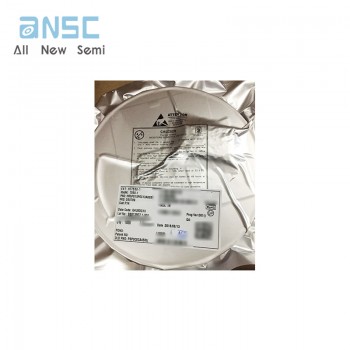

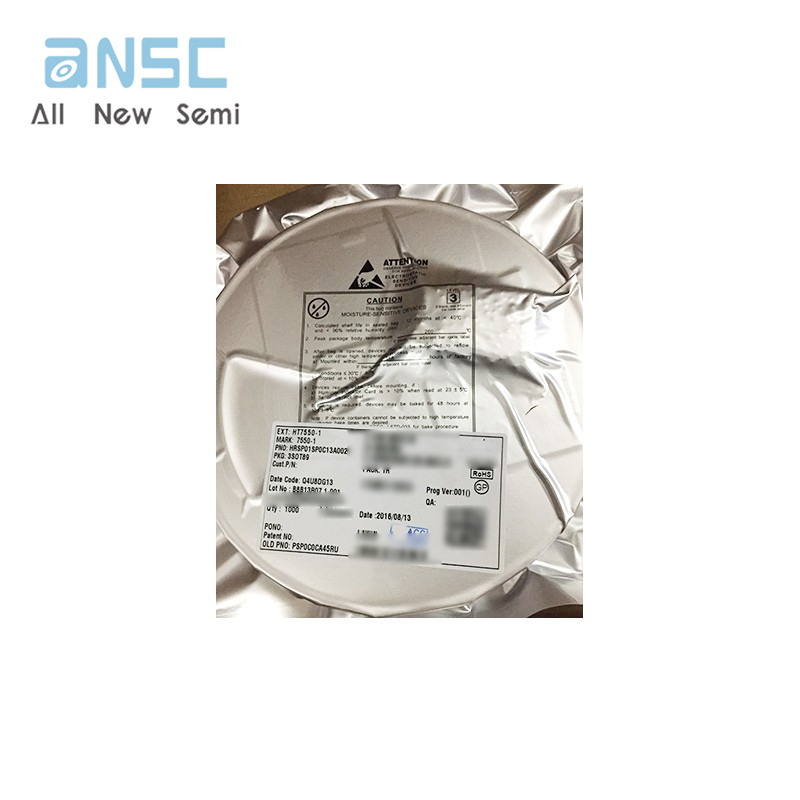

Actual image of the product

HT7550-1

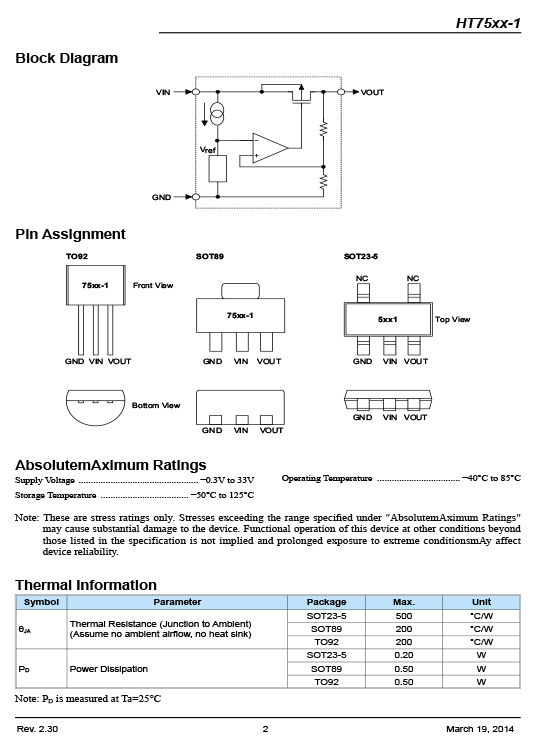

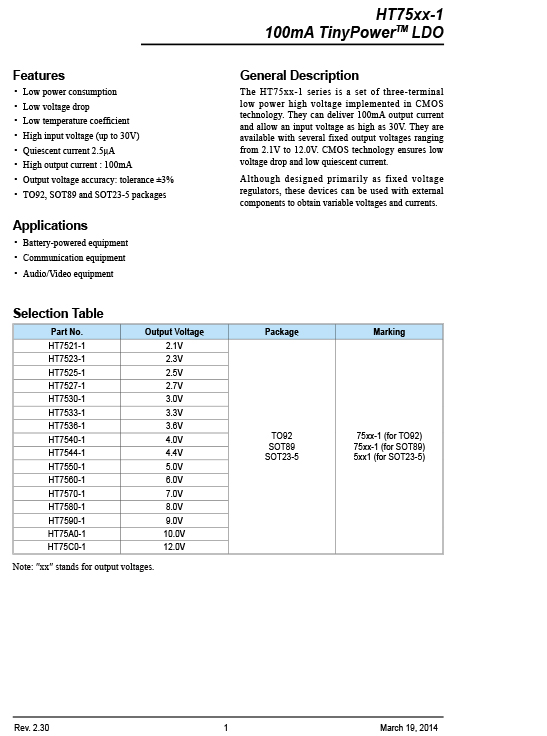

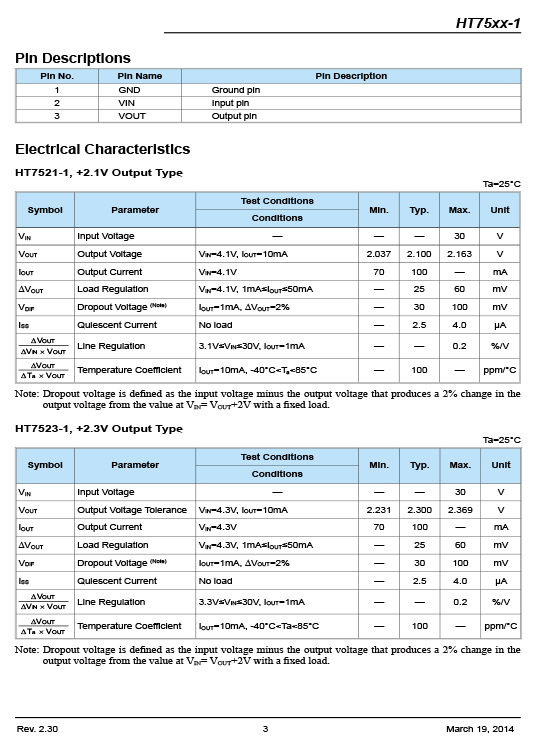

Product datasheet

For more information, please download
