Hot-selling and scarce IR4427STRPBF DUAL LOW SIDE DRIVER SOP8 spot stock

Product Descriptions

The IR4426/IR4427/IR4428 (S) is a low voltage, high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched.

Product Features

· Gate drive supply range from 6 to 20V

· CMOS Schmitt-triggered inputs

· Matched propagation delay for both channels

· Outputs out of phase with inputs (IR4426)

· Outputs in phase with inputs (IR4427)

· OutputA out of phase with inputA and

 OutputB in phase with inputB (IR4428)

· Also available LEAD-FREE

Product Specification

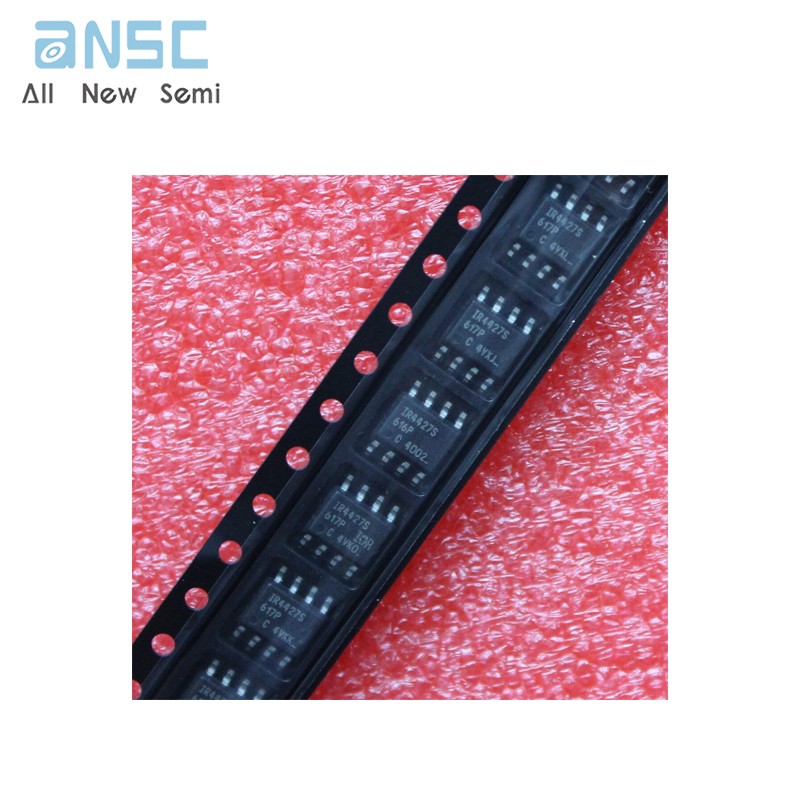

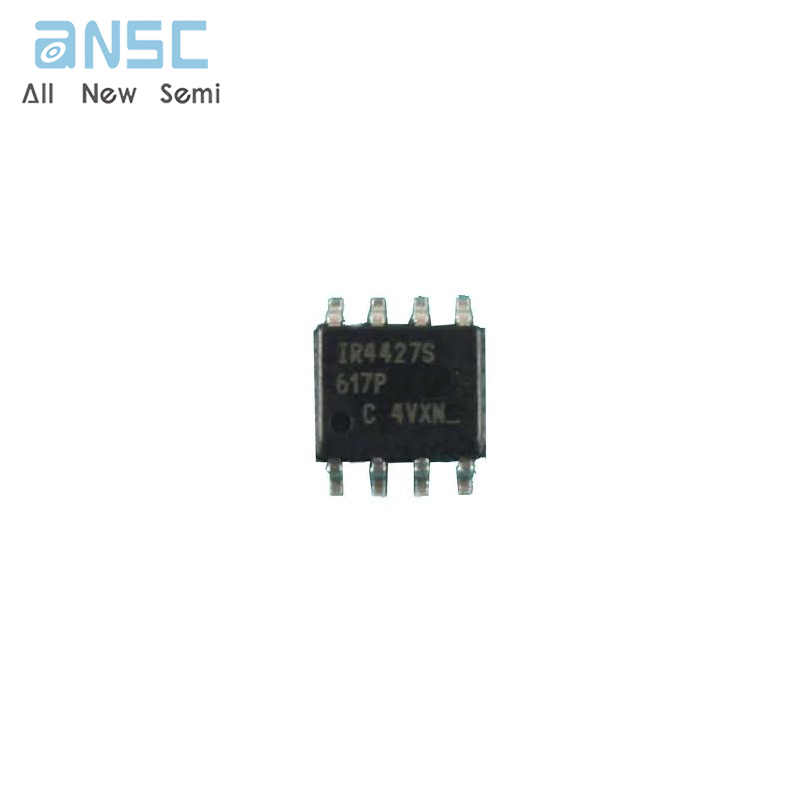

Product Photos

For more product information, please download the PDF
