Hot-selling and scarce MMPF0100NPAZESR2 14 channel configurable power management integrated circuit 56-VFQFN spot stock

Product Descriptions

The PF0100 SMARTMOS power management integrated circuit (PMIC) provides a highly programmable/configurable architecture,with fully integrated power devices and minimal external components. With up to six buck converters,six linear regulators, RTC supply,and coin-cell charger,the PF0100 can provide power for a complete system,including applications processors,memory,and system peripherals,in a wide range of applications. With on-chip one time programmable (OTP)memory,the PF0100 is available in pre-programmed standard versions,or non-programmed to support custom programming.The PF0100 is defined to power an entire embedded MCU platform solution such as i.MX 6 based eReader,IPTV,medical monitoring,and home/factory automation.

Product Features

• Four to six buck converters,depending on configuration

• Single/Dual phase/parallel options

• DDR termination tracking mode option

• Boost regulator to 5.0 V output

• Six general purpose linear regulators

• Programmable output voltage,sequence,and timing

• OTP (one time programmable)memory for device configuration

• Coin cell charger and RTC supply

• DDR termination reference voltage

• Power control logic with processor interface and event detection

• I 2 C control

• Individually programmable ON,OFF,and standby modes

Product Applications

• Tablets

• IPTV

• eReaders

• Set top boxes

• Industrial control

• Medical monitoring

• Home automation/alarm/energy management

Product Specification

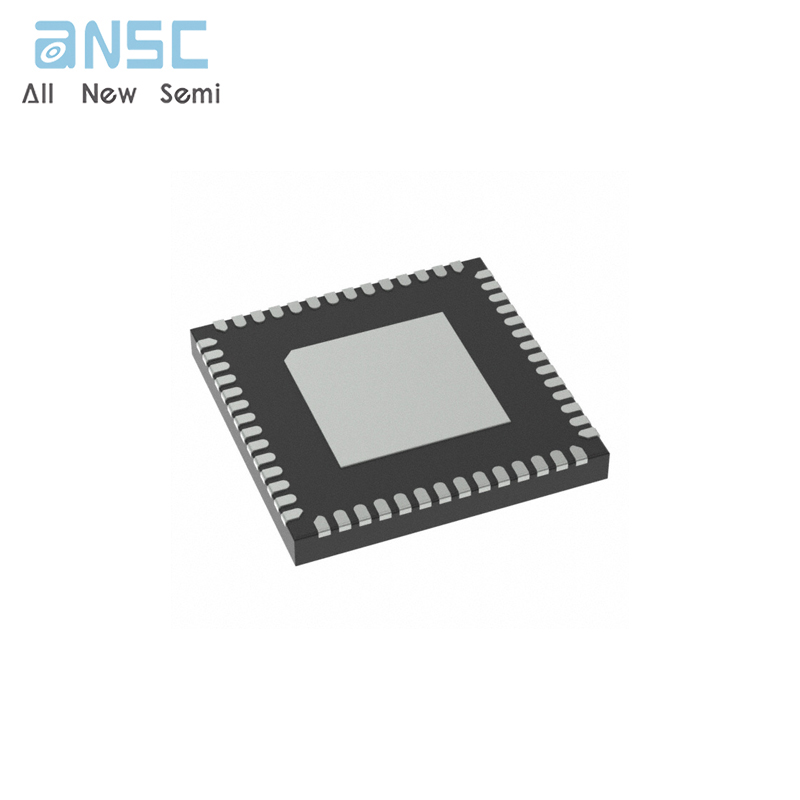

Product Photos

For more product information, please download the PDF
