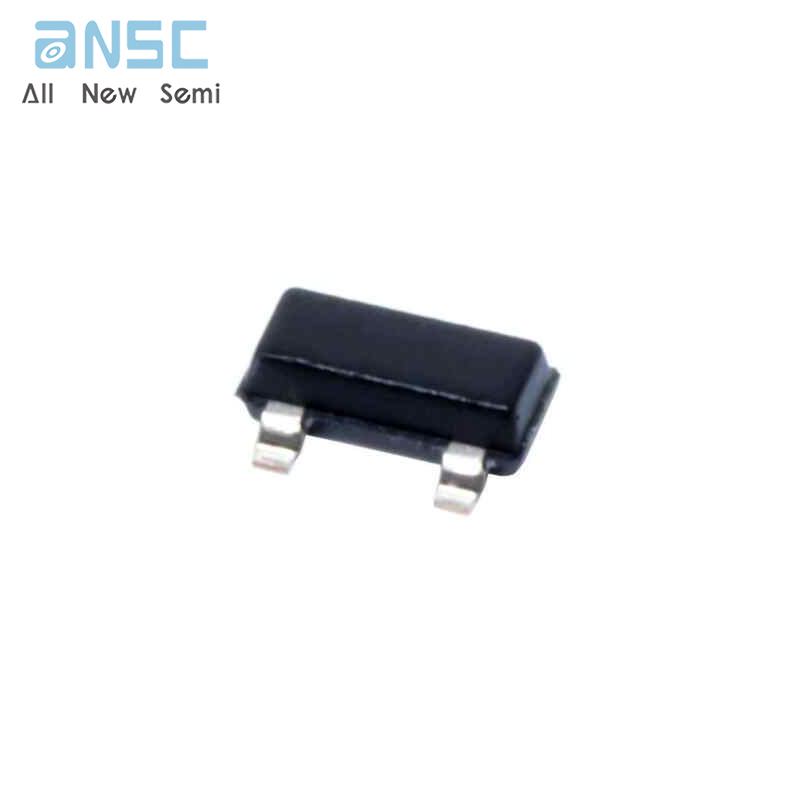

Hot-selling and scarce LM4040C25IDBZR PRECISION MICROPOWER SHUNT VOLTAGE REFERENCE SOT23 spot stock

Product Descriptions

The LM4040 series of shunt voltage references are versatile, easy-to-use references that cater to a vast array of applications. The 2-pin fixed-output device requires no external capacitors for operation and is stable with all capacitive loads. Additionally, the reference offers low dynamic impedance, low  noise, and  low temperature coefficient to ensure a stable output voltage over a wide range of operating currents and temperatures. The LM4040 uses fuse and Zener-zap reverse breakdown voltage trim during wafer sort to offer four output voltage tolerances, ranging from 0.1% (max) for the A grade to 1% (max) for the D grade. Thus, a great deal of flexibility is offered to designers in choosing the best cost-to-performance ratio for their applications.

Packaged in space-saving SC-70 and SOT-23-3 packages and requiring a minimum current of 45 µA (typ), the LM4040 also is ideal for portable applications. The LM4040xI is characterized for operation over an ambient temperature range of –40°C to 85°C. The LM4040xQ is characterized for operation over an ambient temperature range of –40°C to 125°C.

Product Features

•     Fixed Output Voltages of 2.048 V, 2.5 V, 3 V,4.096 V, 5 V, 8.192 V, and 10 V

•     Tight Output Tolerances and Low Temperature Coefficient

– Max 0.1%, 100 ppm/°C – A Grade

– Max 0.2%, 100 ppm/°C – B Grade

– Max 0.5%, 100 ppm/°C – C Grade

– Max 1.0%, 150 ppm/°C – D Grade

•     Low Output Noise …35 µVRMS Typ

•     Wide Operating Current Range …45 µA Typ to 15 mA

•     Stable With All Capacitive Loads; No Output Capacitor Required

•     Available in Extended Temperature Range   –40°C to 125°C

Product Applications

•     Data-Acquisition Systems

•     Power Supplies and Power-Supply Monitors

•     Instrumentation and Test Equipment

•     Process Controls

•     Precision Audio

•     Automotive Electronics

•     Energy Management

•     Battery-Powered Equipment

Product Specification

Product Photos

For more product information, please download the PDF
