Hot-selling and scarce TL431AIDR ADJUSTABLE PRECISION SHUNT REGULATORS SOP8 spot stock
Manufacturer Product Number
TL431AIDR
Description
TL431AIDR ADJUSTABLE PRECISION SHUNT REGULATORS SOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Operation From −40°C to 125°C
− 0.5% B Grade
− 1% A Grade
− 2% Standard Grade
Typical Temperature Drift (TL431B)
− 6 mV (C Temp)
− 14 mV (I Temp, Q Temp)
Low Output Noise
0.2-Ω Typical Output Impedance
Sink-Current Capability . . . 1 mA to 100 mA
Adjustable Output Voltage . . .V ref to 36 V
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TL431AIDR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 2.495V |
| Voltage - Output (Max) | 36 V |
| Current - Output | 100 mA |
| Tolerance | ±1% |
| Current - Cathode | 700 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TL431 |

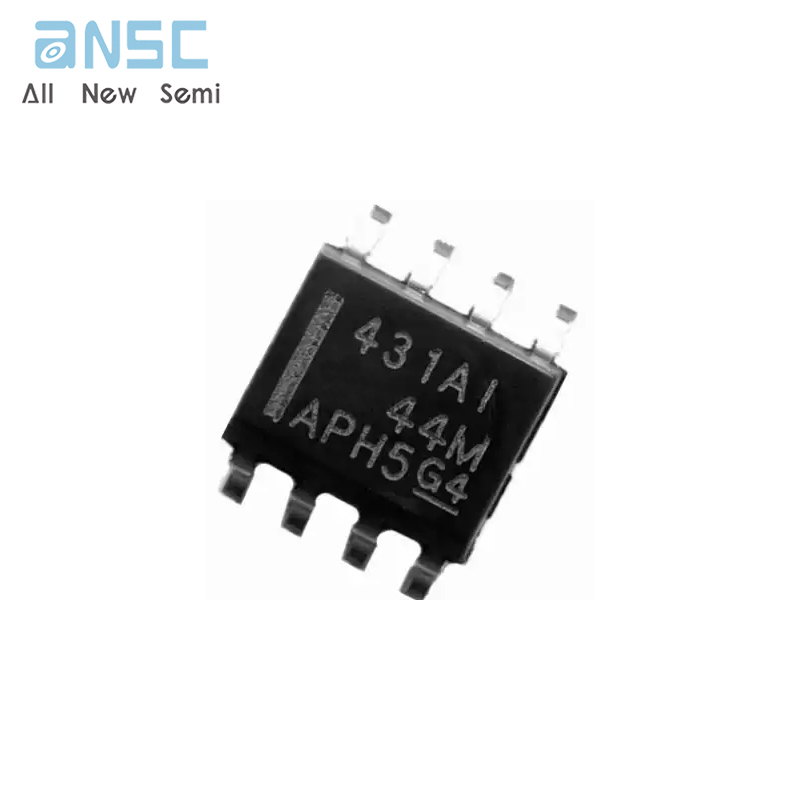

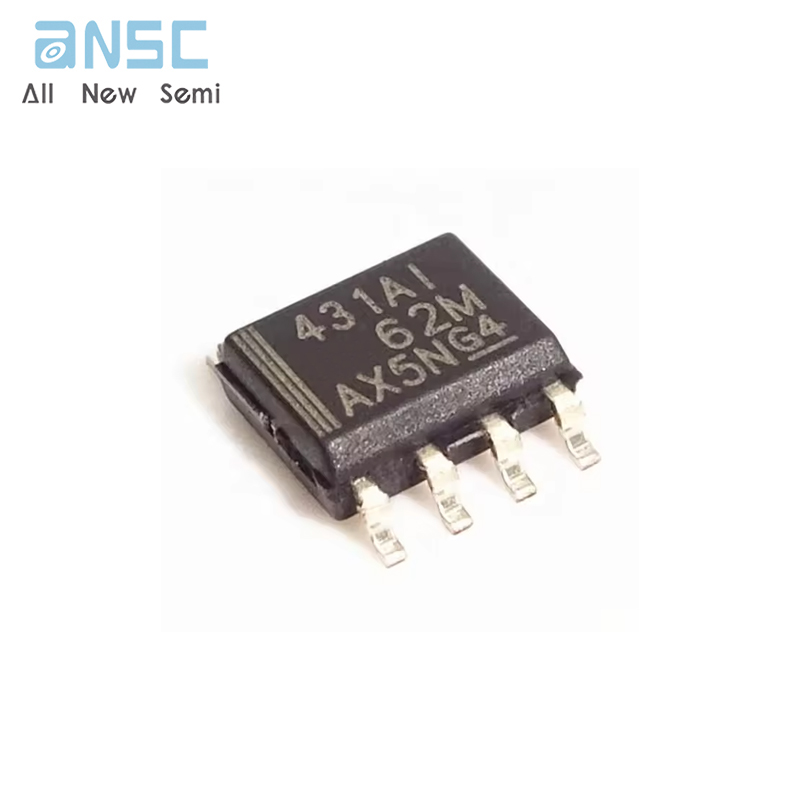

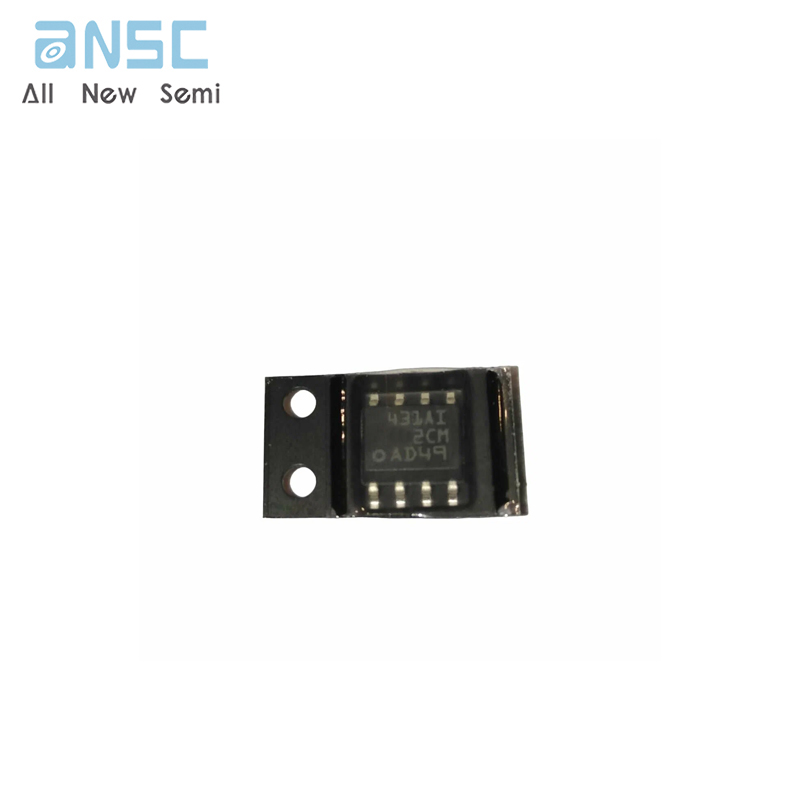

Product Photos
For more product information, please download the PDF
