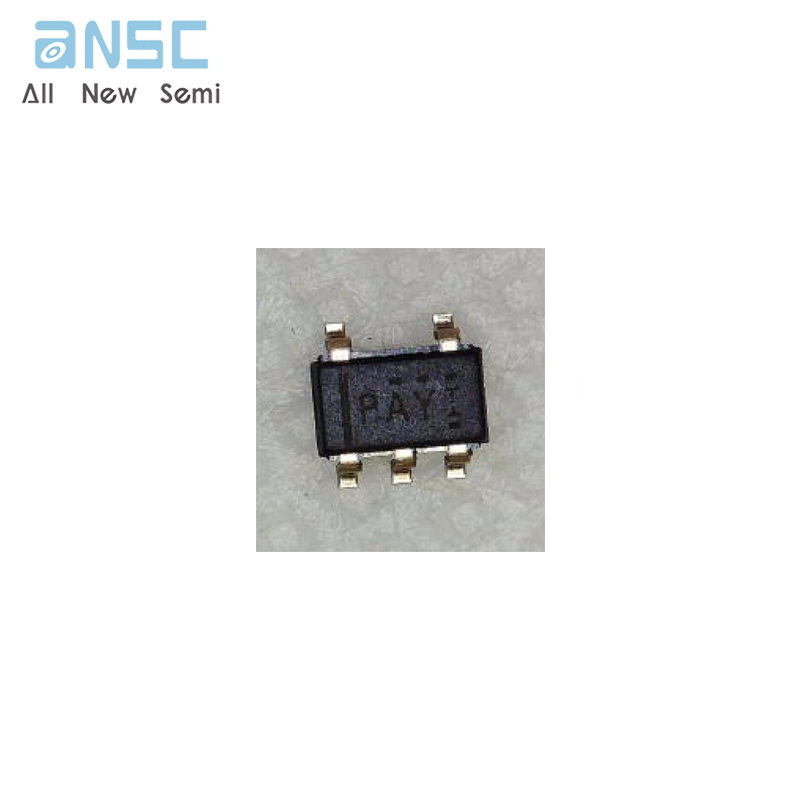

Hot-selling and scarce TPS2829DBVR SINGLE-CHANNEL HIGH-SPEED MOSFET DRIBER SOT23-5 spot stock

Product Descriptions

The TPS28xx single-channel high-speed MOSFET  drivers  are  capable  of  delivering  peak currents of up to 2 A into highly capacitive loads .High switching speeds (t_r and _t f = 14 ns typ) are obtained with the use of BiCMOS outputs.Typicalthreshold switching voltages are 2/3 and 1/3 ofV CC .  The  design  inherently  minimizes  shoot through current .

A regulator is provided on TPS2816 through TPS2819 devices to allow operation with supply inputs between14 V and 40 V. The regulator output can be used to power other circuits, provided power dissipation does not exceed package limitations . If the regulator is not required, V DD (the regulator input) should be connected to V CC . The TPS2816 and TPS2817 input circuits include an active pull up circuit to eliminate the need for an external resistor when using open-collector PWM controllers . The TPS2818 and TPS2819 are identical to the TPS2816 and TPS2817, except that the active pull up circuit is omitted . The TPS2828 and TPS2829 are identical to the TPS2818 and TPS2819, except that the internal voltage regulator is omitted, allowing quiescent current to drop to less than 15 µA when the inputs are high or low .

The TPS28xx series devices are available in 5-pin SOT-23 (DBV) packages and operate over an ambienttemperature range of –40 C to 125 C .

Product Features

Low-Cost Single-Channel High-Speed MOSFET Driver

I CC . . . 15-µA Max (TPS2828, TPS2829)

25-ns Max Rise/Fall Times and 40-ns Max Propagation Delay . . . 1-nF Load

2-A Peak Output Current

4-V to 14-V Driver Supply Voltage Range; Internal Regulator Extends Range to 40 V (TPS2816, TPS2817, TPS2818, TPS2819)

5-pin SOT-23 Package

–40°C to 125°C Ambient-Temperature Operating Range

Highly Resistant to Latch-ups
