Hot-selling and scarce MP8736DL-LF-Z Fast Transient, 6A, 19V Synchronous Buck Converter QFN spot stock

Product Descriptions

The MP8736 is a fully integrated high frequencysynchronous rectified step-down switch modeconverter .This device integrates a 12mΩlowside FET and a 30mΩhigh-side FET in amonolithic die .The MP8736 operates with high efficiency over a wide output current load range .

Constant-On-Time  (COT)  control  mode provides fast transient response and eases loopst abilization .The MP8736 has a programmable frequency pin to optimize system performance .

Full protection features include SCP,OCP,OVP,UVP and thermal shut down .

The MP8736 requires a minimum number of readily available standard external components and is available in a space saving QFN20(3x4mm)package .​

Product Features

• Wide 4.5V to 19V Operating Input Range

• 6A Output Current

• Integrated 30mΩHigh-Side,12mΩLow Side Power MOSFETs

• Proprietary Switching Loss Reduction Technique

• 1%Reference Voltage

• Programmable Soft Start Time

• Soft Shutdown

• SCP,OCP,OVP,UVP Protection and Thermal Shutdown

• Available in a QFN20 (3x4mm)Package

• 100kHz to 2 .5MHz switching frequency*

Product Applications

• Networking Systems

• Broadband/Optical Communication Systems

• Distributed Power and Point of Load Systems

Product Specification

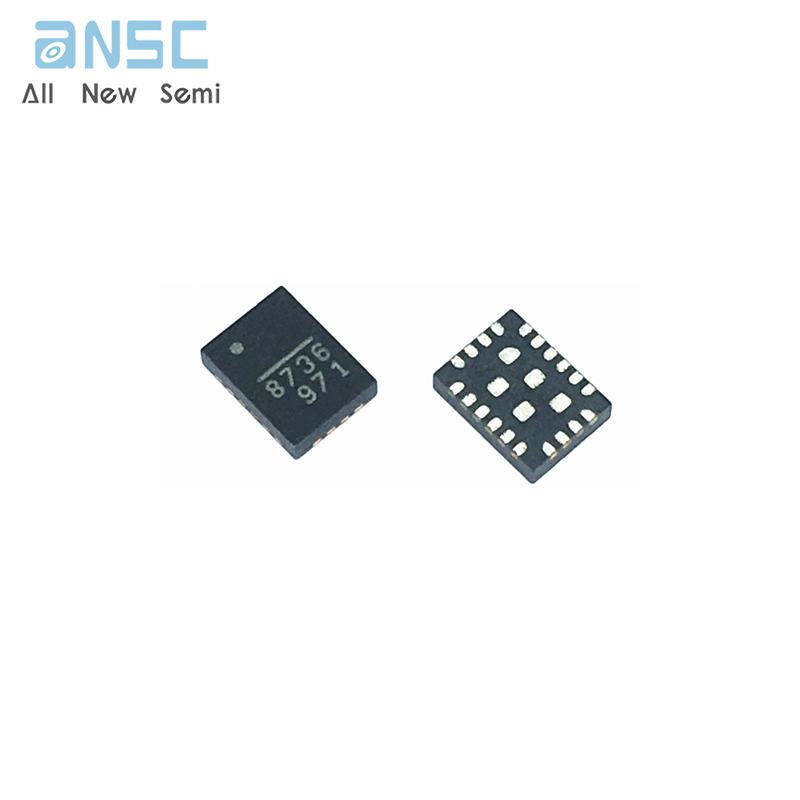

Product Photos

For more product information, please download the PDF
