Hot sale Original LMZ14203HTZX/NOPB Power Supply Non-Isolated PoL Module DC DC Converter 1 Output 5 -30V 3A 6V - 42V Input
Manufacturer
Manufacturer Product Number
LMZ14203HTZX/NOPB
Description
Original LMZ14203HTZX/NOPB Power Supply Non-Isolated PoL Module DC DC Converter 1 Output 5 -30V 3A 6V - 42V Input
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The LMZ14203HTZX/NOPB is a non-isolated Point-of-Load (PoL) module from Texas Instruments, part of the SIMPLE SWITCHER series. This surface-mount module is designed for high-efficiency DC-DC conversion and is suitable for a wide range of applications. With an adjustable output voltage as low as 5V, this module offers flexibility and reliability in power supply designs.
Product Features
High efficiency of 94%
Adjustable output voltage as low as 5V
UVLO (Undervoltage Lockout) feature for safe operation
Active high enable control
Non-isolated design for easy integration
Lead-free and RoHS3 compliant
Operating temperature range of -40°C to 125°C
Product Applications
Primary applications: ITE (Commercial) equipment
Secondary applications: Other commercial and industrial applications requiring a reliable and efficient power supply
Alternative Parts:
LMZ14203 (Base Part Number)
Embedded Modules:
This module is used in various embedded systems, including industrial control systems, medical devices, and telecommunications equipment.
Product Attributes
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - LMZ14203HTZX/NOPB |
|
Category |
Power Supplies - Board Mount DC DC Converters |
|
Mfr |
Original |
|
Series |
SIMPLE SWITCHER® |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Type |
Non-Isolated PoL Module |
|
Number of Outputs |
1 |
|
Voltage - Input (Min) |
6V |
|
Voltage - Input (Max) |
42V |
|
Voltage - Output 1 |
5 ~ 30V |
|
Voltage - Output 2 |
- |
|
Voltage - Output 3 |
- |
|
Voltage - Output 4 |
- |
|
Current - Output (Max) |
3A |
|
Applications |
ITE (Commercial) |
|
Features |
UVLO |
|
Operating Temperature |
-40°C ~ 125°C |
|
Efficiency |
94% |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-PMOD-7, Power Module |
|
Size / Dimension |
0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) |
|
Supplier Device Package |
TO-PMOD-7 |
|
Control Features |
Enable, Active High |
|
Base Product Number |
LMZ14203 |

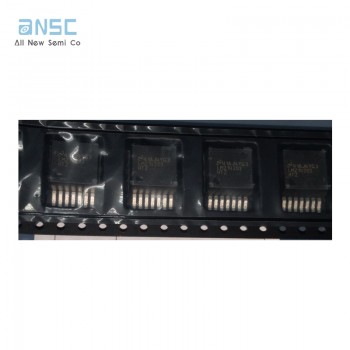

Actual image of the product
