Hot sale Original PTN78020WAH Power Supplies Non-Isolated PoL Module DC DC Converter 1 Output 2.5 -12.6V 6A

Product Description

The PTN78020WAH is a non-isolated Point of Load (PoL) module from Texas Instruments, designed for board-mount applications. This DC-DC converter operates using Pulse Width Modulation (PWM) and is part of the PTN78020W series. With a high efficiency of 94%, it is suitable for a wide range of applications, particularly in the commercial sector.

Product Features

· UVLO (Under Voltage Lockout): The module features an Under Voltage Lockout (UVLO) function, which ensures safe operation by preventing the converter from turning on when the input voltage is below the minimum specified level.

· High Power Density: With a maximum output power of 90W and a compact size of 38.1mm x 22.1mm x 8.9mm, this module is ideal for space-constrained applications.

· Wide Input Voltage Range: The PTN78020WAH can operate with an input voltage range of 7V to 36V, making it suitable for a variety of power sources.

Product Applications

· Primary Applications: The PTN78020WAH is designed for commercial applications, particularly in the ITE (Information Technology Equipment) sector, where it can be used to power various electronic devices and systems.

· Secondary Applications: This module can also be used in other commercial applications, such as industrial control systems, medical devices, and telecommunications equipment.

Embedded Modules:

· Various Systems: The PTN78020WAH can be used as a component in various systems, including power supplies, industrial control systems, medical devices, and telecommunications equipment.

Product Description

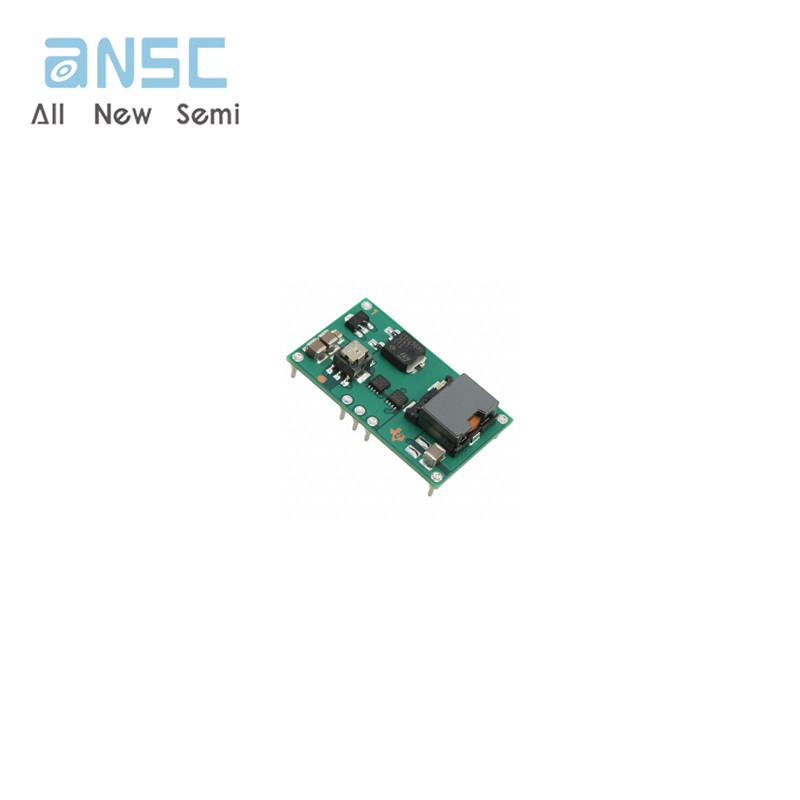

Actual image of the product

Product datasheet

For more information, please download
